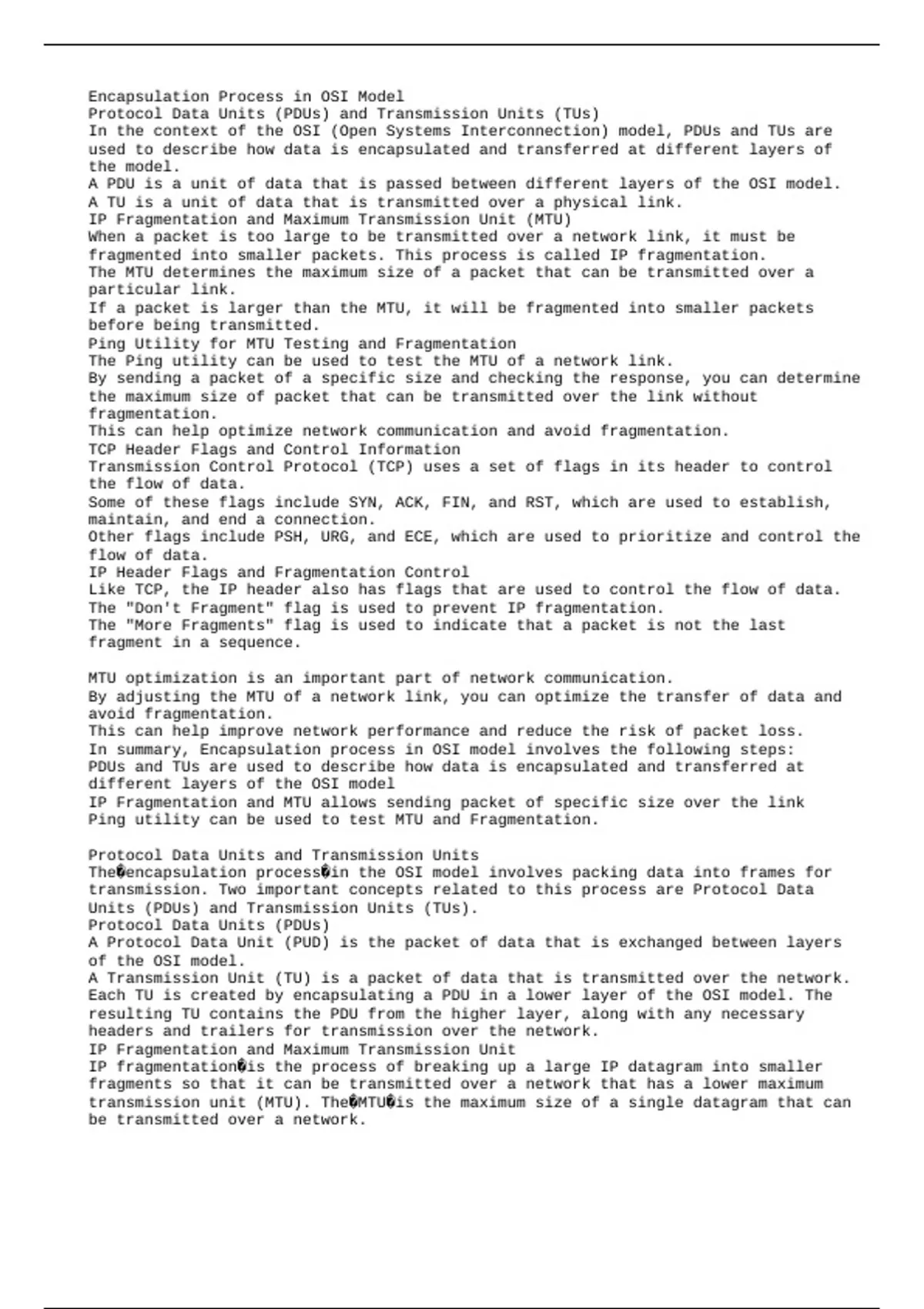

Encapsulation Process in OSI Model
Protocol Data Units (PDUs) and Transmission Units (TUs)
In the context of the OSI (Open Systems Interconnection) model, PDUs and TUs are
used to describe how data is encapsulated and transferred at different layers of
the model.
A PDU is a unit of data that is passed between different layers of the OSI model.
A TU is a unit of data that is transmitted over a physical link.
IP Fragmentation and Maximum Transmission Unit (MTU)
When a packet is too large to be transmitted over a network link, it must be
fragmented into smaller packets. This process is called IP fragmentation.
The MTU determines the maximum size of a packet that can be transmitted over a
particular link.
If a packet is larger than the MTU, it will be fragmented into smaller packets
before being transmitted.
Ping Utility for MTU Testing and Fragmentation
The Ping utility can be used to test the MTU of a network link.
By sending a packet of a specific size and checking the response, you can determine
the maximum size of packet that can be transmitted over the link without
fragmentation.
This can help optimize network communication and avoid fragmentation.
TCP Header Flags and Control Information
Transmission Control Protocol (TCP) uses a set of flags in its header to control
the flow of data.
Some of these flags include SYN, ACK, FIN, and RST, which are used to establish,
maintain, and end a connection.
Other flags include PSH, URG, and ECE, which are used to prioritize and control the
flow of data.
IP Header Flags and Fragmentation Control
Like TCP, the IP header also has flags that are used to control the flow of data.
The "Don't Fragment" flag is used to prevent IP fragmentation.
The "More Fragments" flag is used to indicate that a packet is not the last
fragment in a sequence.
MTU optimization is an important part of network communication.
By adjusting the MTU of a network link, you can optimize the transfer of data and
avoid fragmentation.
This can help improve network performance and reduce the risk of packet loss.
In summary, Encapsulation process in OSI model involves the following steps:
PDUs and TUs are used to describe how data is encapsulated and transferred at
different layers of the OSI model
IP Fragmentation and MTU allows sending packet of specific size over the link
Ping utility can be used to test MTU and Fragmentation.
Protocol Data Units and Transmission Units
The�encapsulation process�in the OSI model involves packing data into frames for
transmission. Two important concepts related to this process are Protocol Data
Units (PDUs) and Transmission Units (TUs).
Protocol Data Units (PDUs)
A Protocol Data Unit (PUD) is the packet of data that is exchanged between layers
of the OSI model.
A Transmission Unit (TU) is a packet of data that is transmitted over the network.
Each TU is created by encapsulating a PDU in a lower layer of the OSI model. The
resulting TU contains the PDU from the higher layer, along with any necessary
headers and trailers for transmission over the network.
IP Fragmentation and Maximum Transmission Unit
IP fragmentation�is the process of breaking up a large IP datagram into smaller
fragments so that it can be transmitted over a network that has a lower maximum
transmission unit (MTU). The�MTU�is the maximum size of a single datagram that can
be transmitted over a network.
