it's the example in writing static routing with three or more router

Institution
Sixth Year / 12th Grade
Course
Networking material

Content preview

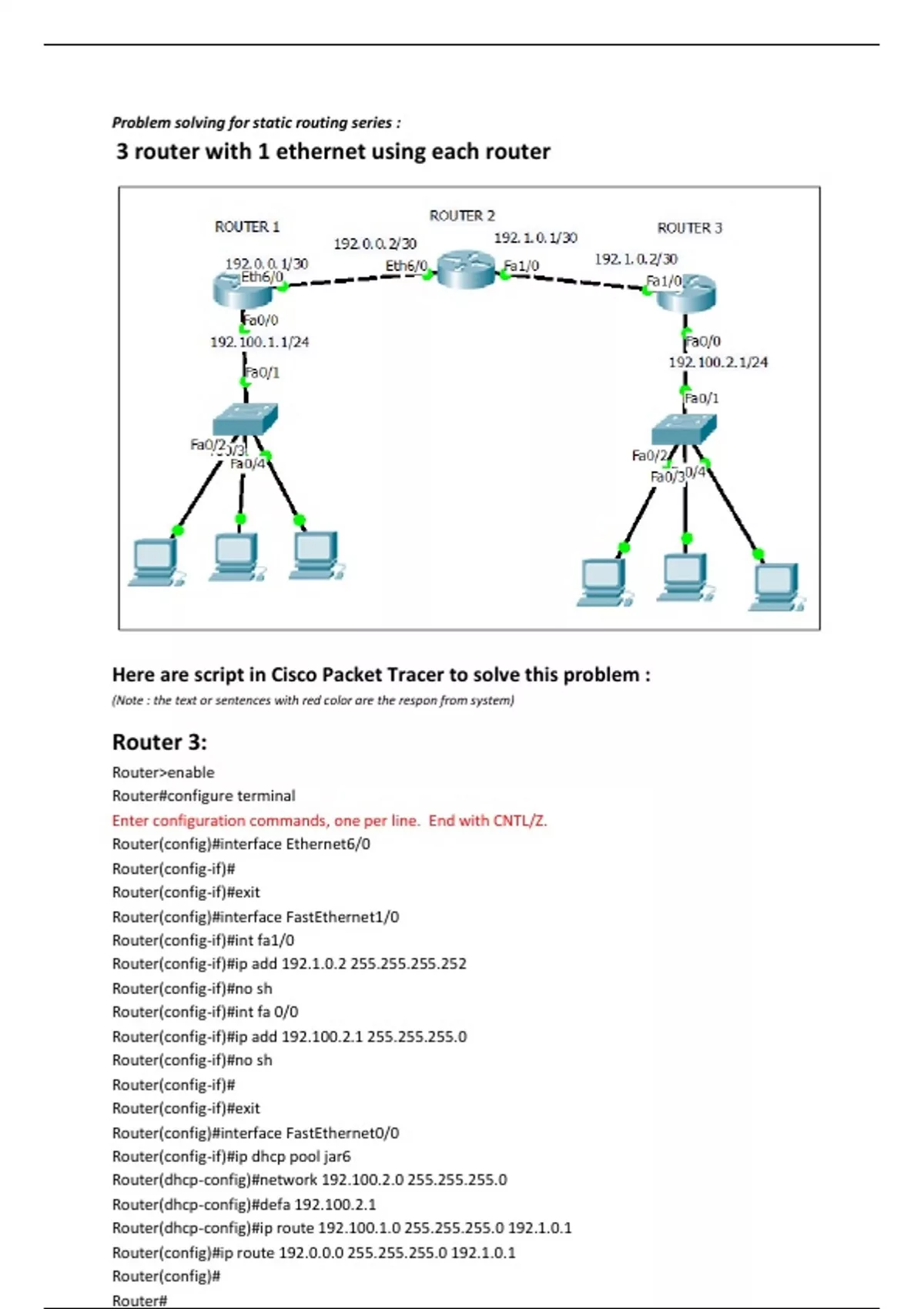

Problem solving for static routing series :
3 router with 1 ethernet using each router




Here are script in Cisco Packet Tracer to solve this problem :
(Note : the text or sentences with red color are the respon from system)


Router 3:
Router>enable
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#interface Ethernet6/0
Router(config-if)#
Router(config-if)#exit
Router(config)#interface FastEthernet1/0
Router(config-if)#int fa1/0
Router(config-if)#ip add 192.1.0.2 255.255.255.252
Router(config-if)#no sh
Router(config-if)#int fa 0/0
Router(config-if)#ip add 192.100.2.1 255.255.255.0
Router(config-if)#no sh
Router(config-if)#
Router(config-if)#exit
Router(config)#interface FastEthernet0/0
Router(config-if)#ip dhcp pool jar6
Router(dhcp-config)#network 192.100.2.0 255.255.255.0
Router(dhcp-config)#defa 192.100.2.1
Router(dhcp-config)#ip route 192.100.1.0 255.255.255.0 192.1.0.1
Router(config)#ip route 192.0.0.0 255.255.255.0 192.1.0.1
Router(config)#
Router#
