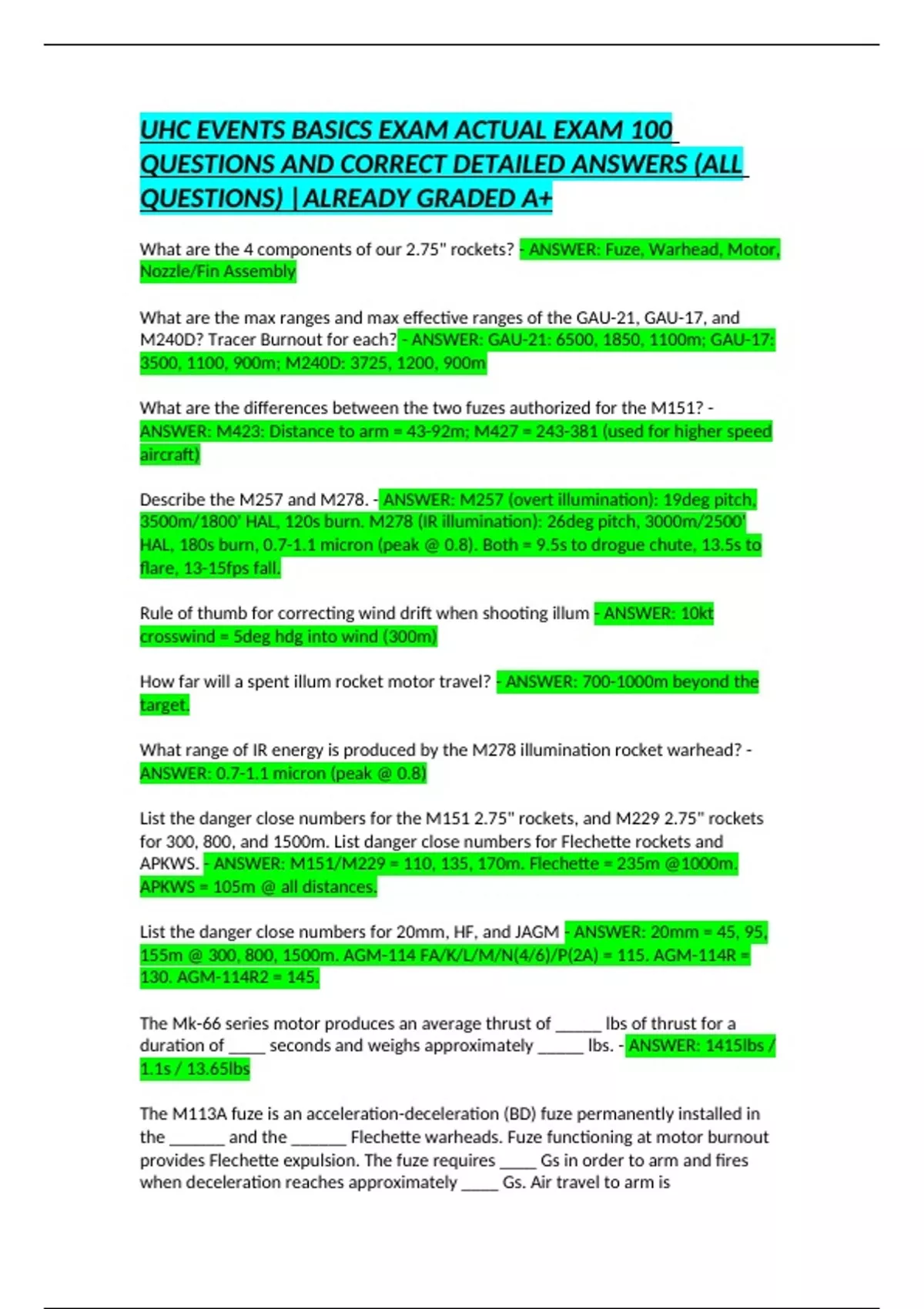

UHC EVENTS BASICS EXAM ACTUAL EXAM 100
QUESTIONS AND CORRECT DETAILED ANSWERS (ALL
QUESTIONS) |ALREADY GRADED A+
What are the 4 components of our 2.75" rockets? - ANSWER: Fuze, Warhead, Motor,
Nozzle/Fin Assembly
What are the max ranges and max effective ranges of the GAU-21, GAU-17, and
M240D? Tracer Burnout for each? - ANSWER: GAU-21: 6500, 1850, 1100m; GAU-17:
3500, 1100, 900m; M240D: 3725, 1200, 900m
What are the differences between the two fuzes authorized for the M151? -
ANSWER: M423: Distance to arm = 43-92m; M427 = 243-381 (used for higher speed
aircraft)
Describe the M257 and M278. - ANSWER: M257 (overt illumination): 19deg pitch,
3500m/1800' HAL, 120s burn. M278 (IR illumination): 26deg pitch, 3000m/2500'
HAL, 180s burn, 0.7-1.1 micron (peak @ 0.8). Both = 9.5s to drogue chute, 13.5s to
flare, 13-15fps fall.
Rule of thumb for correcting wind drift when shooting illum - ANSWER: 10kt
crosswind = 5deg hdg into wind (300m)
How far will a spent illum rocket motor travel? - ANSWER: 700-1000m beyond the
target.
What range of IR energy is produced by the M278 illumination rocket warhead? -
ANSWER: 0.7-1.1 micron (peak @ 0.8)
List the danger close numbers for the M151 2.75" rockets, and M229 2.75" rockets
for 300, 800, and 1500m. List danger close numbers for Flechette rockets and
APKWS. - ANSWER: M151/M229 = 110, 135, 170m. Flechette = 235m @1000m.
APKWS = 105m @ all distances.
List the danger close numbers for 20mm, HF, and JAGM - ANSWER: 20mm = 45, 95,
155m @ 300, 800, 1500m. AGM-114 FA/K/L/M/N(4/6)/P(2A) = 115. AGM-114R =
130. AGM-114R2 = 145.
The Mk-66 series motor produces an average thrust of _____ lbs of thrust for a
duration of ____ seconds and weighs approximately _____ lbs. - ANSWER: 1415lbs /
1.1s / 13.65lbs
The M113A fuze is an acceleration-deceleration (BD) fuze permanently installed in
the ______ and the ______ Flechette warheads. Fuze functioning at motor burnout
provides Flechette expulsion. The fuze requires ____ Gs in order to arm and fires
when deceleration reaches approximately ____ Gs. Air travel to arm is
, approximately ______ meters with the fuze being completely armed in about ____
seconds - ANSWER: WDU-4A/A. My 149 MOD 0. 17.5Gs. 11Gs. 400-600m. 1.2s
WDU-4A/A flechette contains ______ x ____ grain Flechettes whereas the Mk 149
MOD 0 dispenses ______ x ____ grain flechettes. - ANSWER: 2205x20grain;
1179x60grain
What are the allowable PRF Codes for an APKWS? - ANSWER: 1111 - 1488
What warhead/fuze combinations are allowed for use in APKWS? - ANSWER: M423 /
M151; M423 / M282; M423 / M229; WTU-1B
What are the times of flight for HF? - ANSWER: 40, 32, 25, 19, 15, 10, 7, 4 (8, 7, 6, 5,
4, 3, 2, 1km)
What are the TOF and mil settings for APKWS - ANSWER: 18/230, 12/190, 8/150,
5/110, 4/90 (5, 4, 3, 2, 1.5km)
What are the ceiling considerations for an APKWS? What will an APKWS do if it does
not receive LASER energy after launch? - ANSWER: 1000' cloud clearance above
launch. Enter attitude hold and land long (up to 9km)
The photocathode in NVGs are responsive to what spectrum of energy? - ANSWER:
400-950nm. Peak at 600-900nm.
Name the BSBII FOV available in IR mode. Which ones are available in CCDTV? -
ANSWER: WFOV, MFOV, NFOV, SNFOV, UNFOV (middle 3 = CCDTV)
What is the min and max range of the LRF? To what accuracy? - ANSWER: 250m-
30km; +/- 5m @ 24km
Mission Fuel - ANSWER: Fuel required to fly the planned mission and land at
required minimums.
Hold Short Fuel - ANSWER: Fuel required to depart the takeoff location and complete
the minimum mission or transit requirements for that leg, landing at required
minimums.
Joker Fuel - ANSWER: Fuel state above Bingo at which separation, bugout or event
termination should begin.
Bingo Fuel - ANSWER: Fuel state needed for recovery either to a primary or divert
site. Routing may need to conform to SPINS or preplanned routing; do not always
assume a straight line egress.
What are the 3 weapons conditions and define them? - ANSWER: Weapons Free:
Aircrew may fire at targets not identified as friendly.
