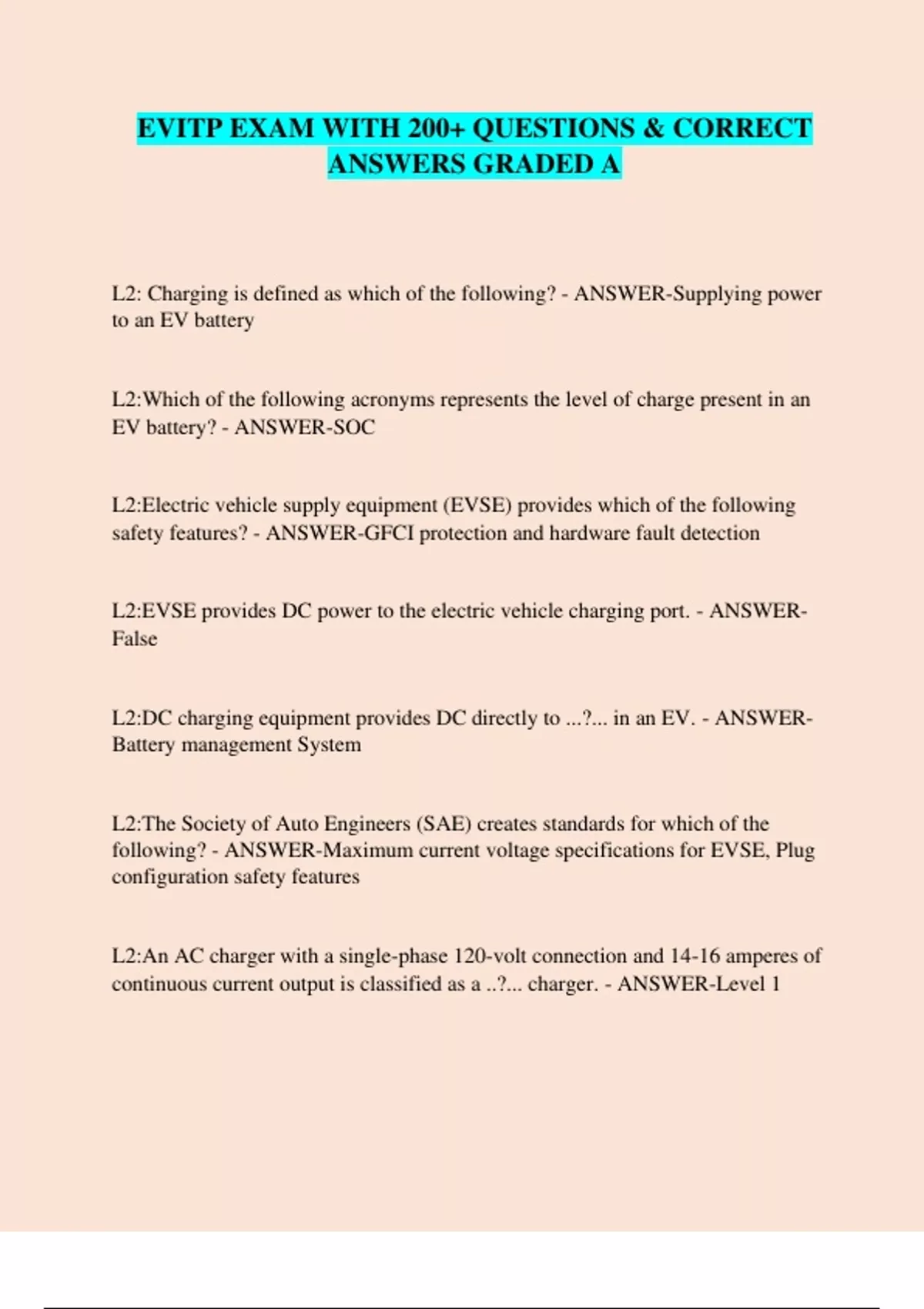

EVITP EXAM WITH 200+ QUESTIONS & CORRECT
ANSWERS GRADED A
L2: Charging is defined as which of the following? - ANSWER-Supplying power
to an EV battery
L2:Which of the following acronyms represents the level of charge present in an
EV battery? - ANSWER-SOC
L2:Electric vehicle supply equipment (EVSE) provides which of the following
safety features? - ANSWER-GFCI protection and hardware fault detection
L2:EVSE provides DC power to the electric vehicle charging port. - ANSWER-
False
L2:DC charging equipment provides DC directly to ...?... in an EV. - ANSWER-
Battery management System
L2:The Society of Auto Engineers (SAE) creates standards for which of the
following? - ANSWER-Maximum current voltage specifications for EVSE, Plug
configuration safety features
L2:An AC charger with a single-phase 120-volt connection and 14-16 amperes of
continuous current output is classified as a ..?... charger. - ANSWER-Level 1
,L2:An AC charger with a single-phase 208-volt or 240-volt connection and a
continuous current output of up to 80 amperes is classified as a ....?.. charger. -
ANSWER-Level 2
L2: The purpose of the J1772 connector pins is to provide ...?... - ANSWER-a
charging interface that is safe for consumers to use, a means to signal the EVSE to
stop charging based on the pin contact state, signals to the EVSE that the connector
is properly seated on the vehicle
L2:Which of the following is true about the J1772 standard control pilot terminal
pin's function? - ANSWER-It changes to the state of the EVSE according to the
voltage present, it defines the state of the EVSE. It uses a +12V to -12V Ac square
wave signal
L2:Which of the following is not a variable that determines the charging time of an
EV? - ANSWER-Connector configuration
L2:The EV's power acceptance rate should not be considered when making EVSE
purchasing decisions. - ANSWER-False
L2:The State of Charge of the EV battery is ...?... - ANSWER-a determining factor
in calculating the time necessary to fully charge an EV
L2:Which of the following is the Japanese Dx quick charging standard? -
ANSWER-ChAdeMO
L2: The ChAdeMO V1.0 Standard has charging power up to ...?... at ..?...., up to
...?.. - ANSWER-62.5kW /500 VDC/ 125 A
L2: Wireless EV charging utilizes the principles of ...?... - ANSWER-Induction
,L2: Which of the following is connected to the change of a wireless EV charger via
hardwiring? - ANSWER-Power source coil
L2: What are the advantages of wireless charging? - ANSWER-It has no exposed
electrical contact points and wireless charging has better aesthetic quality
L2: Wireless charging is more expensive than coupled EVSE. - ANSWER-True
L2: What is the SAE standard for wireless charging? - ANSWER-J2954
recommended practice
L2: The SAE standard for wireless charging has specifications that include which
of the following? - ANSWER-Magnetic triangulation for vehicle alignment over
the power source coil, means to allow for payment without physical interaction, up
to 11kW charging capacity
L2: Which of the following is not true of EV charging networks? - ANSWER-
None of the above
L2: EV networks utilize memberships that are ? . - ANSWER-fee-based or pay-as-
you-go
L2: EV networks generate revenue with which of the following? - ANSWER-call
to pay, membership fees, station usage fees
L3: The national Electrical Code (NEC)? - ANSWER-Provides minimum
installation requirements
, L3: Installations covered by the NEC include which of the following? - ANSWER-
industrial substations, installations on public and private premises, recreational
vehicles, floating buildings and mobile homes
L3: NEC chapters 1-4 apply to ...?.. - ANSWER-All installations except as
modified by CH's 5, 6, and 7
L3: NEC chapter 8 covers ...?... systems and ..?.. subject to chapters 1-7 unless
specifically referenced. - ANSWER-communications/ is not
Chapter 9 of the NEC contains which of the following? - ANSWER-Tables that are
applicable and enforceable when referenced elsewhere in the code
Definitions that are specific to a particular article are located in which of the
following sections? - ANSWER-xxx.2
Article 110 covers ..?.. requirements for wiring and equipment. - ANSWER-
General
The maximum amount of current a conductor can carry under the conditions of use
without exceeding its temperature rating is found using the calculation methods
based in article 310. - ANSWER-true
Which of the following drive the market for EV'S
cheaper gasoline prices
decreased cost of EV's
ANSWERS GRADED A
L2: Charging is defined as which of the following? - ANSWER-Supplying power
to an EV battery
L2:Which of the following acronyms represents the level of charge present in an
EV battery? - ANSWER-SOC
L2:Electric vehicle supply equipment (EVSE) provides which of the following
safety features? - ANSWER-GFCI protection and hardware fault detection
L2:EVSE provides DC power to the electric vehicle charging port. - ANSWER-
False
L2:DC charging equipment provides DC directly to ...?... in an EV. - ANSWER-
Battery management System
L2:The Society of Auto Engineers (SAE) creates standards for which of the
following? - ANSWER-Maximum current voltage specifications for EVSE, Plug
configuration safety features
L2:An AC charger with a single-phase 120-volt connection and 14-16 amperes of
continuous current output is classified as a ..?... charger. - ANSWER-Level 1
,L2:An AC charger with a single-phase 208-volt or 240-volt connection and a
continuous current output of up to 80 amperes is classified as a ....?.. charger. -
ANSWER-Level 2
L2: The purpose of the J1772 connector pins is to provide ...?... - ANSWER-a
charging interface that is safe for consumers to use, a means to signal the EVSE to
stop charging based on the pin contact state, signals to the EVSE that the connector
is properly seated on the vehicle
L2:Which of the following is true about the J1772 standard control pilot terminal
pin's function? - ANSWER-It changes to the state of the EVSE according to the
voltage present, it defines the state of the EVSE. It uses a +12V to -12V Ac square
wave signal
L2:Which of the following is not a variable that determines the charging time of an
EV? - ANSWER-Connector configuration
L2:The EV's power acceptance rate should not be considered when making EVSE
purchasing decisions. - ANSWER-False
L2:The State of Charge of the EV battery is ...?... - ANSWER-a determining factor
in calculating the time necessary to fully charge an EV
L2:Which of the following is the Japanese Dx quick charging standard? -
ANSWER-ChAdeMO
L2: The ChAdeMO V1.0 Standard has charging power up to ...?... at ..?...., up to
...?.. - ANSWER-62.5kW /500 VDC/ 125 A
L2: Wireless EV charging utilizes the principles of ...?... - ANSWER-Induction
,L2: Which of the following is connected to the change of a wireless EV charger via
hardwiring? - ANSWER-Power source coil
L2: What are the advantages of wireless charging? - ANSWER-It has no exposed
electrical contact points and wireless charging has better aesthetic quality
L2: Wireless charging is more expensive than coupled EVSE. - ANSWER-True
L2: What is the SAE standard for wireless charging? - ANSWER-J2954
recommended practice
L2: The SAE standard for wireless charging has specifications that include which
of the following? - ANSWER-Magnetic triangulation for vehicle alignment over
the power source coil, means to allow for payment without physical interaction, up
to 11kW charging capacity
L2: Which of the following is not true of EV charging networks? - ANSWER-
None of the above
L2: EV networks utilize memberships that are ? . - ANSWER-fee-based or pay-as-
you-go
L2: EV networks generate revenue with which of the following? - ANSWER-call
to pay, membership fees, station usage fees
L3: The national Electrical Code (NEC)? - ANSWER-Provides minimum
installation requirements
, L3: Installations covered by the NEC include which of the following? - ANSWER-
industrial substations, installations on public and private premises, recreational
vehicles, floating buildings and mobile homes
L3: NEC chapters 1-4 apply to ...?.. - ANSWER-All installations except as
modified by CH's 5, 6, and 7
L3: NEC chapter 8 covers ...?... systems and ..?.. subject to chapters 1-7 unless
specifically referenced. - ANSWER-communications/ is not
Chapter 9 of the NEC contains which of the following? - ANSWER-Tables that are
applicable and enforceable when referenced elsewhere in the code
Definitions that are specific to a particular article are located in which of the
following sections? - ANSWER-xxx.2
Article 110 covers ..?.. requirements for wiring and equipment. - ANSWER-
General
The maximum amount of current a conductor can carry under the conditions of use
without exceeding its temperature rating is found using the calculation methods
based in article 310. - ANSWER-true
Which of the following drive the market for EV'S
cheaper gasoline prices
decreased cost of EV's
