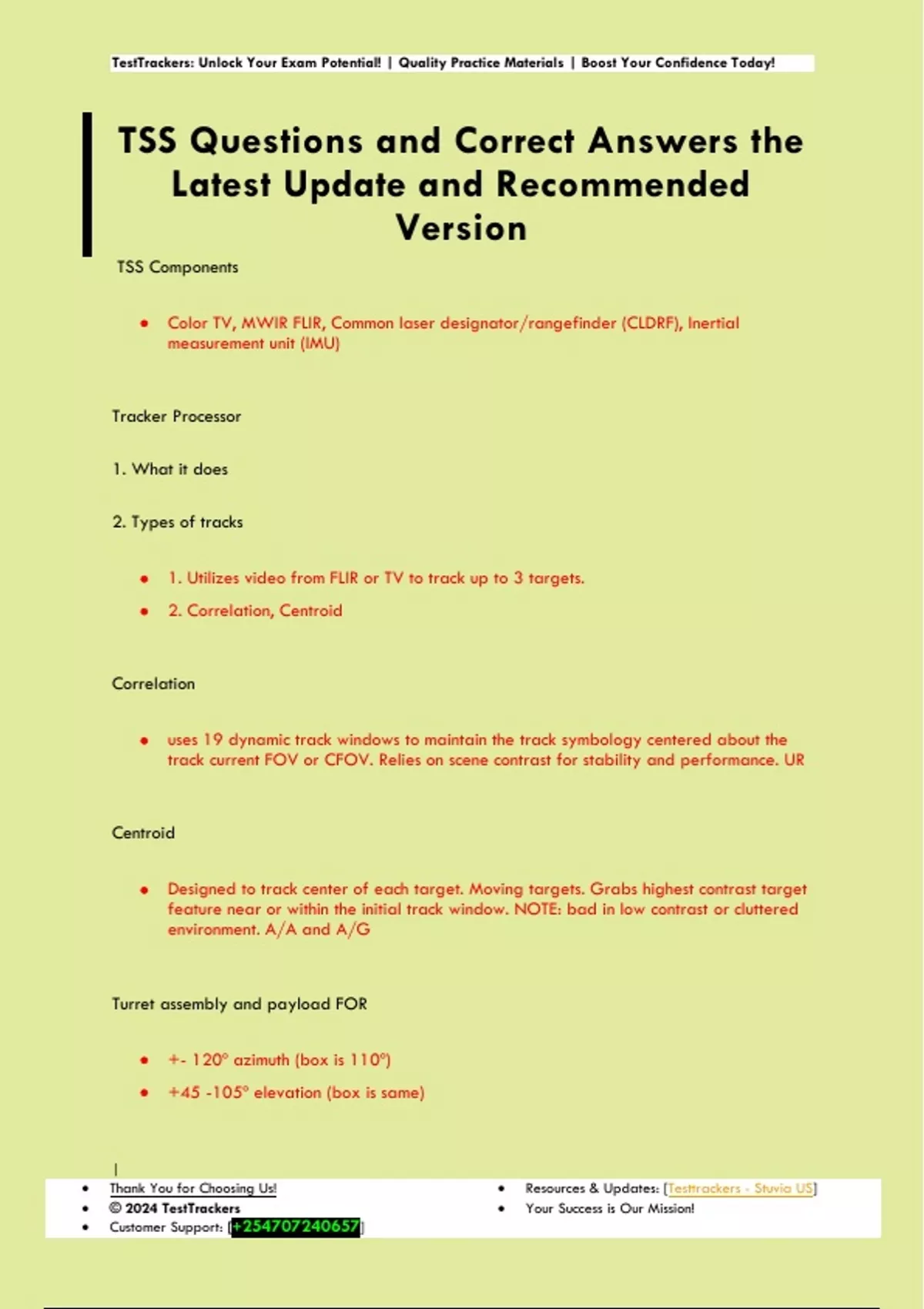

TSS Questions and Correct Answers the
Latest Update and Recommended
Version
TSS Components
• Color TV, MWIR FLIR, Common laser designator/rangefinder (CLDRF), Inertial
measurement unit (IMU)
Tracker Processor
1. What it does
2. Types of tracks
• 1. Utilizes video from FLIR or TV to track up to 3 targets.
• 2. Correlation, Centroid
Correlation
• uses 19 dynamic track windows to maintain the track symbology centered about the
track current FOV or CFOV. Relies on scene contrast for stability and performance. UR
Centroid
• Designed to track center of each target. Moving targets. Grabs highest contrast target
feature near or within the initial track window. NOTE: bad in low contrast or cluttered
environment. A/A and A/G
Turret assembly and payload FOR
• +- 120º azimuth (box is 110º)
• +45 -105º elevation (box is same)
|
