©GRACEAMELIA 2024/2025 ACADEMIC YEAR. ALL RIGHTS RESERVED
FIRST PUBLISH OCTOBER 2024

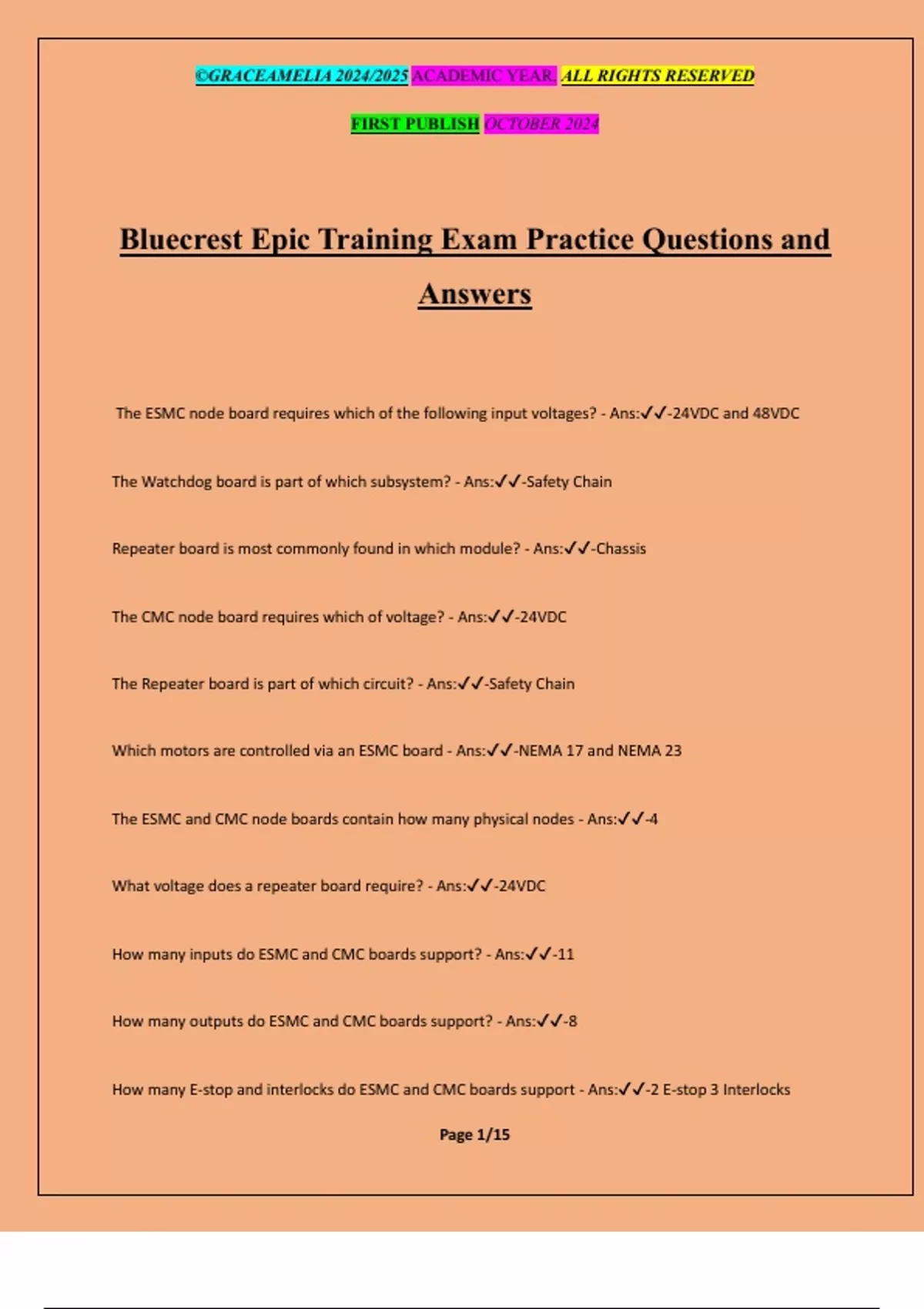

Bluecrest Epic Training Exam Practice Questions and
Answers
The ESMC node board requires which of the following input voltages? - Ans:✔✔-24VDC and 48VDC
The Watchdog board is part of which subsystem? - Ans:✔✔-Safety Chain
Repeater board is most commonly found in which module? - Ans:✔✔-Chassis
The CMC node board requires which of voltage? - Ans:✔✔-24VDC
The Repeater board is part of which circuit? - Ans:✔✔-Safety Chain
Which motors are controlled via an ESMC board - Ans:✔✔-NEMA 17 and NEMA 23
The ESMC and CMC node boards contain how many physical nodes - Ans:✔✔-4
What voltage does a repeater board require? - Ans:✔✔-24VDC
How many inputs do ESMC and CMC boards support? - Ans:✔✔-11
How many outputs do ESMC and CMC boards support? - Ans:✔✔-8
How many E-stop and interlocks do ESMC and CMC boards support - Ans:✔✔-2 E-stop 3 Interlocks
Page 1/15
, ©GRACEAMELIA 2024/2025 ACADEMIC YEAR. ALL RIGHTS RESERVED
FIRST PUBLISH OCTOBER 2024
Which motors are controlled with a CMC board? - Ans:✔✔-Emerson and Baldor
Which nodes are supported on ESMC and CMC boards? - Ans:✔✔-2 servo, 1 analog, 1 I/O
What are the correct servo motor connections on an ESMC board? - Ans:✔✔-2 Hall, 2 Encoder, and 2
Power/Phase
What are the correct servo motor connections on a CMC board? - Ans:✔✔-J2 Amp control and J4 Amp
control
How many Grounding planes are there on ESMC and CMC boards? - Ans:✔✔-4
Which of the following diagnostic tools provides real-time histogram of events? - Ans:✔✔-Health
Monitor
What is the best diagnostic tool for troubleshooting intermittent photocell flicker? - Ans:✔✔-Logic
analyzer
In order to acquire additional information regarding the 4-digit code that is displayed in a DC error
message, which tool would you use? - Ans:✔✔-Faults dialog
Which icon/tool would you use in DC to select the Servo Diagnostic tool? - Ans:✔✔-Node List
True or False: The Rocket Port connects to the Chassis RTP - Ans:✔✔-False
Page 2/15
FIRST PUBLISH OCTOBER 2024
Bluecrest Epic Training Exam Practice Questions and
Answers
The ESMC node board requires which of the following input voltages? - Ans:✔✔-24VDC and 48VDC
The Watchdog board is part of which subsystem? - Ans:✔✔-Safety Chain
Repeater board is most commonly found in which module? - Ans:✔✔-Chassis
The CMC node board requires which of voltage? - Ans:✔✔-24VDC
The Repeater board is part of which circuit? - Ans:✔✔-Safety Chain
Which motors are controlled via an ESMC board - Ans:✔✔-NEMA 17 and NEMA 23
The ESMC and CMC node boards contain how many physical nodes - Ans:✔✔-4
What voltage does a repeater board require? - Ans:✔✔-24VDC
How many inputs do ESMC and CMC boards support? - Ans:✔✔-11
How many outputs do ESMC and CMC boards support? - Ans:✔✔-8
How many E-stop and interlocks do ESMC and CMC boards support - Ans:✔✔-2 E-stop 3 Interlocks
Page 1/15
, ©GRACEAMELIA 2024/2025 ACADEMIC YEAR. ALL RIGHTS RESERVED
FIRST PUBLISH OCTOBER 2024
Which motors are controlled with a CMC board? - Ans:✔✔-Emerson and Baldor
Which nodes are supported on ESMC and CMC boards? - Ans:✔✔-2 servo, 1 analog, 1 I/O
What are the correct servo motor connections on an ESMC board? - Ans:✔✔-2 Hall, 2 Encoder, and 2
Power/Phase
What are the correct servo motor connections on a CMC board? - Ans:✔✔-J2 Amp control and J4 Amp
control
How many Grounding planes are there on ESMC and CMC boards? - Ans:✔✔-4
Which of the following diagnostic tools provides real-time histogram of events? - Ans:✔✔-Health
Monitor
What is the best diagnostic tool for troubleshooting intermittent photocell flicker? - Ans:✔✔-Logic
analyzer
In order to acquire additional information regarding the 4-digit code that is displayed in a DC error
message, which tool would you use? - Ans:✔✔-Faults dialog
Which icon/tool would you use in DC to select the Servo Diagnostic tool? - Ans:✔✔-Node List
True or False: The Rocket Port connects to the Chassis RTP - Ans:✔✔-False
Page 2/15
