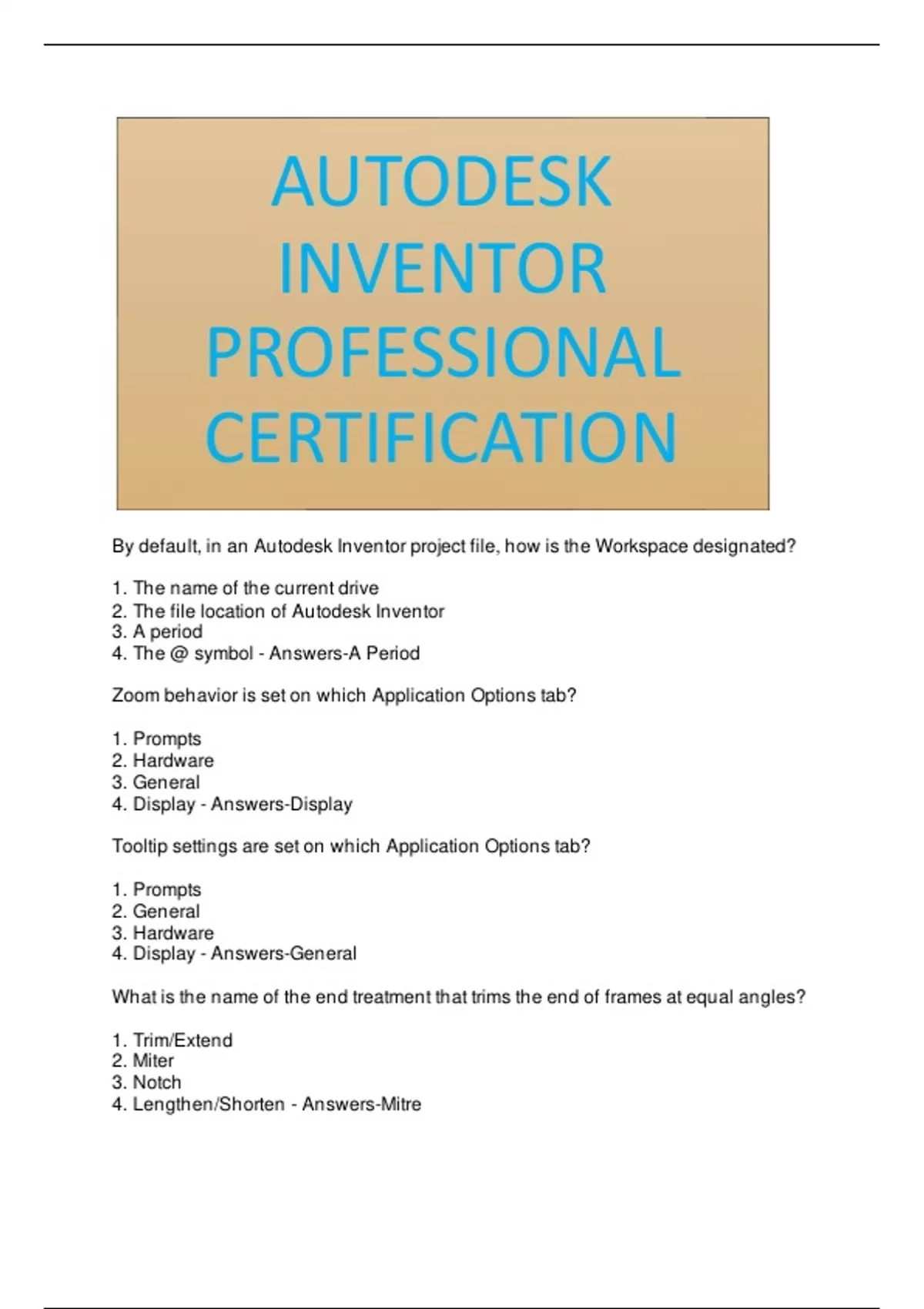

AUTODESK
INVENTOR
PROFESSIONAL
CERTIFICATION
By default, in an Autodesk Inventor project file, how is the Workspace designated?
1. The name of the current drive
2. The file location of Autodesk Inventor
3. A period
4. The @ symbol - Answers-A Period
Zoom behavior is set on which Application Options tab?
1. Prompts
2. Hardware
3. General
4. Display - Answers-Display
Tooltip settings are set on which Application Options tab?
1. Prompts
2. General
3. Hardware
4. Display - Answers-General
What is the name of the end treatment that trims the end of frames at equal angles?
1. Trim/Extend
2. Miter
3. Notch
4. Lengthen/Shorten - Answers-Mitre
,You have already placed two frame members and when you move the cursor over the
third sketch line the orientation is incorrect What is the best suggestion?
1. Click on the line then select the correct orientation.
2. Click the end points of the line.
3. Move the cursor along the line and check for the correct solution before you click to
place the frame member.
4. There is only one solution, so right-click then click Apply to create the two frame
members then start again. - Answers-Move the cursor along the line and check for the
correct solution before you click to place the frame member.
When you create a new simulation the frame is simplified and displays three types of
graphics The first two are beams and the gravity glyph What is the third?
1. Joints
2. End points
3. Nodes
4. Connection glyphs - Answers-Nodes
What Content Center library must be installed when you are placing end caps on the
frame?
1. Custom Content
2. Custom End Plates
3. Inventor ISO
4. Inventor Parker - Answers-Custom Content
On the Hole Properties panel, there are four options for Type > Seat Three are named,
Counterbore, Spotface, and Countersink What is the fourth type?
1. Blind
2. None
3. Through
4. Simple - Answers-None
When creating an in-place component, the Default BOM structure has five options Four
of them are Normal, Inseparable, Phantom and Reference What is the fifth option?
1. External
2. Purchased
3. Work in progress
4. Virtual - Answers-Purchased
What is the best seat for a socket head cap screw?
, 1. None
2. Countersink
3. Counterbore
4. Spotface - Answers-Counterbore
There are various methods of locating a cap screw in a hole You can use joints,
constraints or iMates Another is to click and hold on an edge, and then drag the cap
screw. What key must he held down before dragging the cap screw to the hole?
1. ALT
2. CTRL
3. SPACEBAR
4. SHIFT - Answers-Alt
The preview of a rectangular pattern shows the pattern is pointing in the wrong
direction? What should you do?
1. Enter a negative value for count.
2. Click closer to the far end of the line.
3. Click the direction glyph.
4. Click Flip Direction. - Answers-Click Flip Direction
To assist with the drawing of a sketch it is useful to use a different line type as the base
geometry What is the name of the line type?
1. Construction
2. Hidden
3. Centerline
4. Dashed - Answers-Construction
What workflow should you use to quickly modify a complex model which you may not
have created originally?
1. Edit feature
2. Direct Edit
3. Combine
4. Redefine feature - Answers-Direct Edit
What does the fx prefix mean on a sketch dimension?
1. The dimension was imported from a spreadsheet.
2. There is an error in the dimension.
3. The dimension is calculated by an equation.
4. The dimension cannot be modified. - Answers-The dimension is calculated by an
equation
