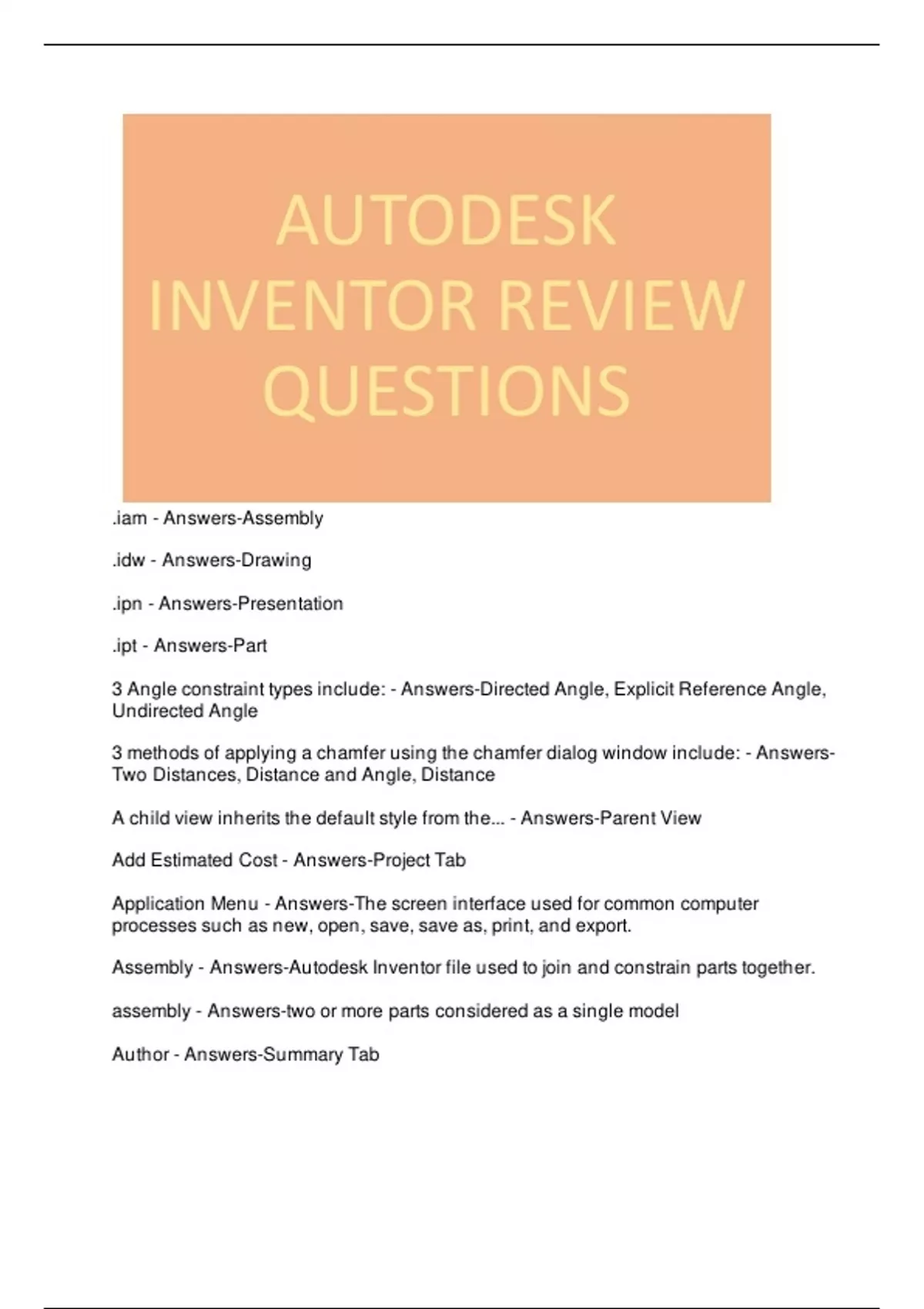

AUTODESK
INVENTOR REVIEW
QUESTIONS
.iam - Answers-Assembly
.idw - Answers-Drawing
.ipn - Answers-Presentation
.ipt - Answers-Part
3 Angle constraint types include: - Answers-Directed Angle, Explicit Reference Angle,
Undirected Angle
3 methods of applying a chamfer using the chamfer dialog window include: - Answers-
Two Distances, Distance and Angle, Distance
A child view inherits the default style from the... - Answers-Parent View
Add Estimated Cost - Answers-Project Tab
Application Menu - Answers-The screen interface used for common computer
processes such as new, open, save, save as, print, and export.
Assembly - Answers-Autodesk Inventor file used to join and constrain parts together.
assembly - Answers-two or more parts considered as a single model
Author - Answers-Summary Tab
, base component - Answers-first component placed in an assembly; should be a
fundamental part or subassembly
Base Feature - Answers-First solid feature built for a model. It is usually the primary
shape of the model from which additional features are added. Also called a primitive
solid.
Base Feature - Answers-First solid feature built for a model. It is usually the primary
shape of the model from which additional features are added. Also called a Primitive
Solid.
Browser - Answers-The screen interface that shows project history and tasks applied to
the part.
Browser Bar - Answers-Displays the history of the file, it is a sequential record of the
construction steps (in the order in which they were created) in a 3D modeling program.
https://o.quizlet.com/f-bzPrht0BfiP0rTq-zS.w_m.jpg
Browser Bar - Answers-Displays the history of the file, it is a sequential record of the
construction steps in a 3D modeling program.
chamfer - Answers-A small angled surface formed between two surfaces, a beveled
edge.
Chamfer - Answers-A small angled surface formed between two surfaces. (A beveled
edge.) https://o.quizlet.com/i/Qnk6Cz8YJLOSCW8aQ6dm7w_m.jpg
Change Material - Answers-Physical Tab
Circular Pattern - Answers-Feature used to create a polar array of an existing model
feature.
Circular Pattern - Answers-Feature used to create a polar array of an existing model
feature.
Circumscribed - Answers-Polygon measurement across corners
Coincident - Answers-Constrains two points together, or fixes a point to a curve.
Coincident - Answers-Constrains two points together, or fixes a point to a curve.
coincident - Answers-geometric constraint that constrains two points or one point and a
curve.
coincident - Answers-Occupying the same area in space.
