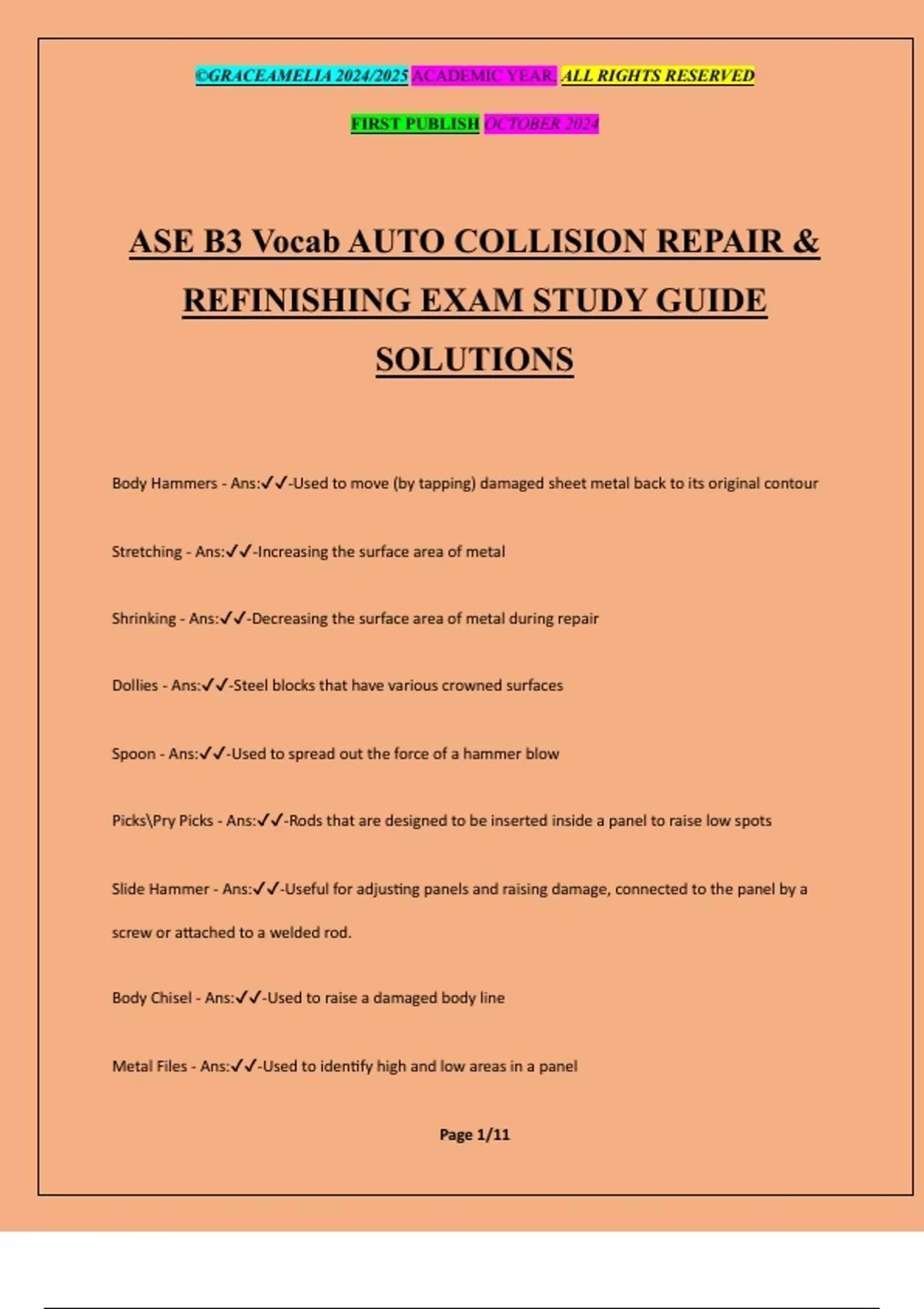

ASE B3 Vocab AUTO COLLISION REPAIR & REFINISHING EXAM STUDY GUIDE SOLUTIONS

ASE B3 Vocab AUTO COLLISION REPAIR & REFINISHING EXAM STUDY GUIDE SOLUTIONS Body Hammers - Ans:-Used to move (by tapping) damaged sheet metal back to its original contour Stretching - Ans:-Increasing the surface area of metal Shrinking - Ans:-Decreasing the surface area of metal during repair Dollies - Ans:-Steel blocks that have various crowned surfaces Spoon - Ans:-Used to spread out the force of a hammer blow PicksPry Picks - Ans:-Rods that are designed to be inserted inside a panel to raise low spots Slide Hammer - Ans:-Useful for adjusting panels and raising damage, connected to the panel by a screw or attached to a welded rod. Body Chisel - Ans:-Used to raise a damaged body line Metal Files - Ans:-Used to identify high and low areas in a panel ©GRACEAMELIA 2024/2025 ACADEMIC YEAR. ALL RIGHTS RESERVED FIRST PUBLISH OCTOBER 2024 Page 2/11 Bull's-eye Pick - Ans:-Used to make raising low spots much easier, looks like a big clamp Panel Flanger - Ans:-Used to make flanges Hand Punch - Ans:-manually makes 5/16" diameter holes in sheet metal Mixing Board - Ans:-Designed to be used when mixing body filler Spreader - Ans:-Used when mixed filler is applied to the low area Surform Tool (cheese grater) - Ans:-When filler has partially cured, it can be leveled with this Long Boards - Ans:-Used to sand filler on both low-crown and high-crown surfaces Sanding Blocks - Ans:-Used to sand body filler (general term) Sanding Stick - Ans:-Tool that should be used to final sand filler Grinder - Ans:-Used to remove metal and paint Orbital Sander - Ans:-Spins a coarse disk at high speed to rapidly sand filler Spot Weld Cutters - Ans:-Bits are used to drill out spot welds Air punch/Flanger - Ans:-Air tool that is used to cut 5/16" diameter holes along the edge of a panel Cut-off tool - Ans:-air tool that spins a fiber cut-off wheel, which cuts metal ©GRACEAMELIA 2024/2025 ACADEMIC YEAR. ALL RIGHTS RESERVED FIRST PUBLISH OCTOBER 2024 Page 3/11 Air chisel - Ans:-used to cut metal through impact Air saw - Ans:-Simply an air power hacksaw Electric Shears - Ans:-Heavy scissors used to cut metal Draw Pin Welder (stud gun) - Ans:-used when making a one-sided panel repair by attaching a metal rod Rod Welder Slide Hammer - Ans:-Used to raise a low spot very quickly Wiggle wire - Ans:-Can be used to pull a body line or panel edge Body Fillers - Ans:-Used to fill shallow dents in panels that cannot be removed by straightening techniques. Catalyst - Ans:-Hardener Sandpaper - Ans:-Used in nonstructural repair to remove paint and sand filler Adhesives - Ans:-Used to glue some replacement steel panels in place OEM Parts - Ans:-Replacement parts made by the same company that made the parts installed on the vehicle when it was assembled Used Parts - Ans:-(Recycled parts) Taken off salvaged v
