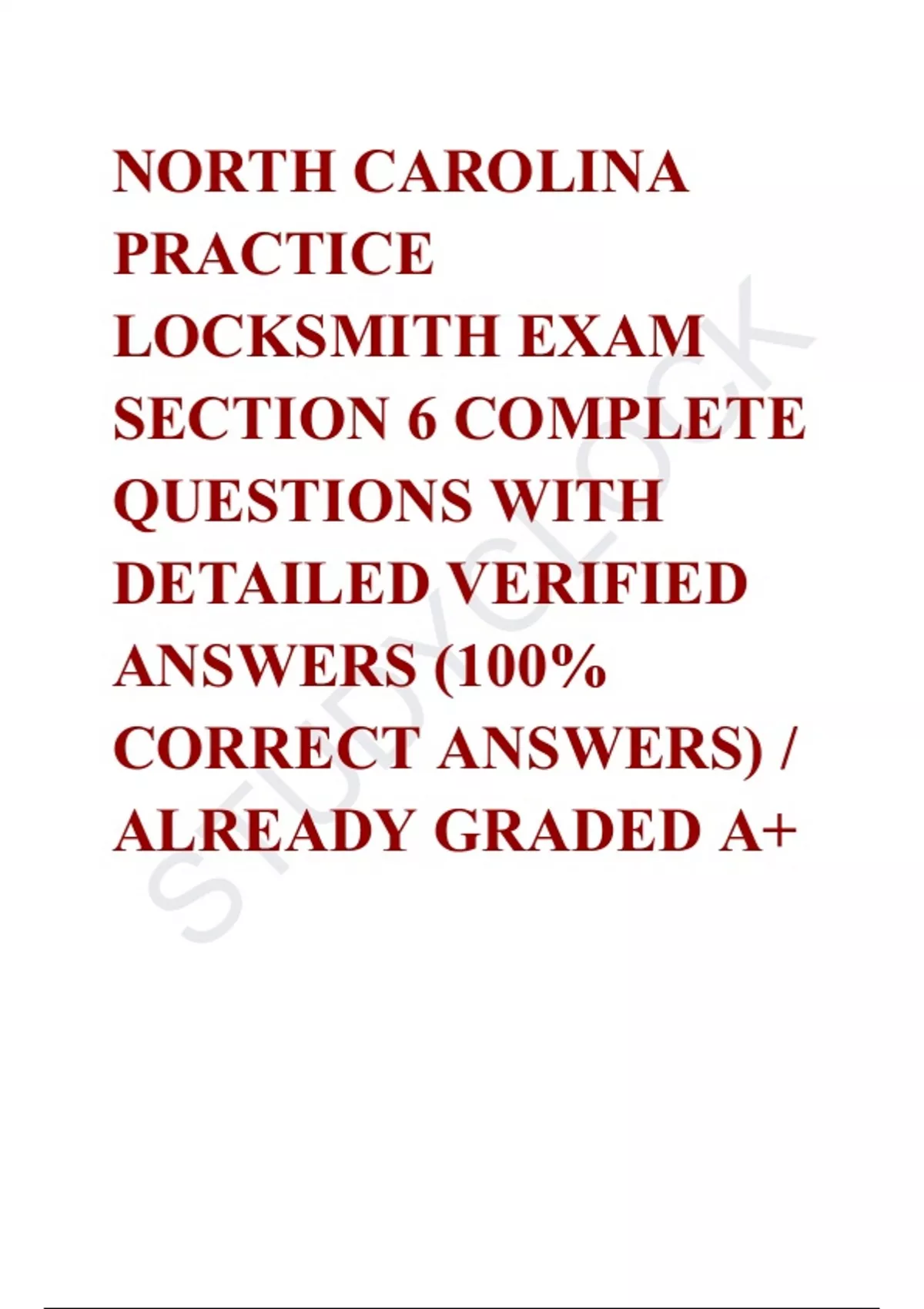

NORTH CAROLINA
PRACTICE
LOCKSMITH EXAM
K
SECTION 6 COMPLETE
C
LO
QUESTIONS WITH
DETAILED VERIFIED
YC
ANSWERS (100%
D
CORRECT ANSWERS) /
U
ALREADY GRADED A+
ST
,n. 1. the number(s) which represent(s) the dimensions of
the key
2. the actual cut(s) or combination of a
key - ANS Bitting
n. a designation, unrelated to the bitting, assigned to a
particular key combination for future reference when
K
additional keys or cylinders may be needed - ANS Blind
C
Code
LO
n. a hand held key bitting punch, often incorporating a
trigger-like handle - ANS Clipper
YC
n. 1. a designation assigned to a particular key
combination for reference when additional keys or
cylinders may be needed. See also, "blind code", "direct
code", and "key symbol",
D
2. a standard for Life Safety, structural integrity, fire safety,
U
etc., either incorporated into the statutes of a given
jurisdiction, or a model standard - ANS Code
ST
n. a key cut to a specific code rather than duplicated from
a pattern key. it may or may not conform to the lock
manufacturer's specifications - ANS Code Key
n. a code key which conforms to the lock manufacturer's
specifications - ANS Code Original Key
,n. the group of numbers which represent the bitting of a
key and/or the tumblers of a lock or cylinder - ANS
Combination
n. the bottom of a key cut - ANS Cut Root
K
n. the shape of the bottom of a key cut. It may have a flat
C
or radius of a specific dimension, or be a perfect
"V - ANS Cut Root Shape
LO
n. a set of keys used to make a code original key on a key
duplicating machine to a lock manufacturer's given set of
YC
key bitting specifications. Each key is cut with the correct
spacing to one depth only in all bitting positions, with one
key for each depth. - ANS Depth Key Set
D
n. a series of blind codes and bittings which are directly
U
related to those of another bitting list - ANS Derived
Series
ST
n. a designation assigned to a particular key which
includes the actual combination of the key - ANS Direct
Code
n. the dimension obtained by adding the root depth of a
key cut to the length of its corresponding bottom pin which
, establishes a perfect shear line. This will not necessarily
be the same as the actual plug diameter. - ANS Effective
Plug Diameter
n. the maximum allowable difference between adjacent cut
depths - ANS Maximum Adjacent Cut Specification
K
abb. maximum adjacent cut specification - ANS "MACS"
C
n. the dimension from the bottom of a cut on a key to the
LO
bottom of the blade - ANS Root Depth
n. a location in a cylinder at which specific tumbler
YC
surfaces must be aligned, removing obstruction(s) which
prevented the plug from moving - ANS Shear Line
n. the dimensions from the stop to the center of the first
D
cut and/or to the centers of successive cuts - ANS
U
Spacing
ST
n. the part of a key from which all cuts are indexed and
which determines how far the key enters the keyway -
ANS Stop (of a key)
n. that portion of the cylinder shell which normally houses
the pin chambers, especially those of a key-inknob
cylinder or certain rim cylinders - ANS Bible
