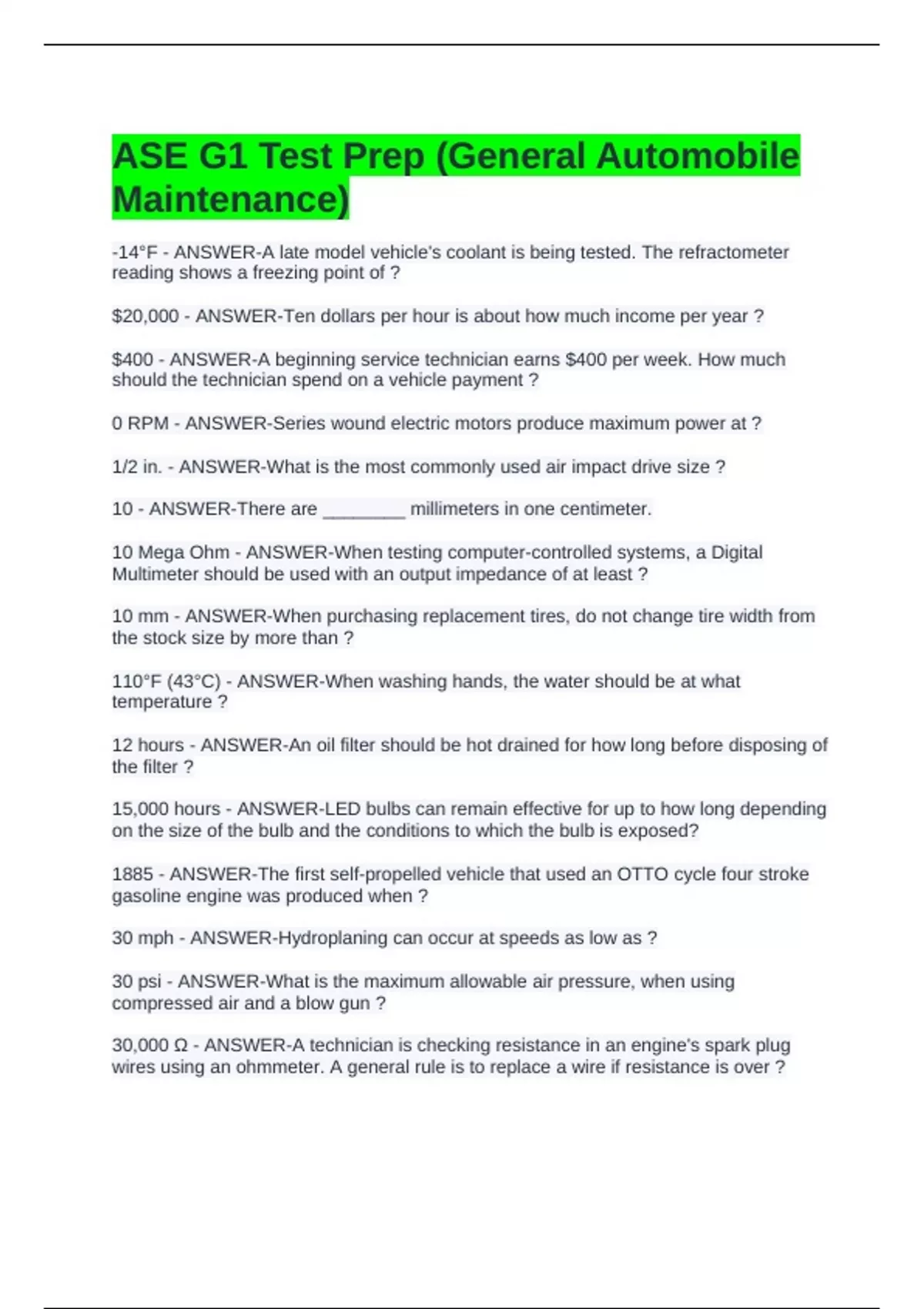

ASE G1 Test Prep (General Automobile
Maintenance)
-14°F - ANSWER-A late model vehicle's coolant is being tested. The refractometer
reading shows a freezing point of ?
$20,000 - ANSWER-Ten dollars per hour is about how much income per year ?
$400 - ANSWER-A beginning service technician earns $400 per week. How much
should the technician spend on a vehicle payment ?
0 RPM - ANSWER-Series wound electric motors produce maximum power at ?
1/2 in. - ANSWER-What is the most commonly used air impact drive size ?
10 - ANSWER-There are ________ millimeters in one centimeter.
10 Mega Ohm - ANSWER-When testing computer-controlled systems, a Digital
Multimeter should be used with an output impedance of at least ?
10 mm - ANSWER-When purchasing replacement tires, do not change tire width from
the stock size by more than ?
110°F (43°C) - ANSWER-When washing hands, the water should be at what
temperature ?
12 hours - ANSWER-An oil filter should be hot drained for how long before disposing of
the filter ?
15,000 hours - ANSWER-LED bulbs can remain effective for up to how long depending
on the size of the bulb and the conditions to which the bulb is exposed?
1885 - ANSWER-The first self-propelled vehicle that used an OTTO cycle four stroke
gasoline engine was produced when ?
30 mph - ANSWER-Hydroplaning can occur at speeds as low as ?
30 psi - ANSWER-What is the maximum allowable air pressure, when using
compressed air and a blow gun ?
30,000 Ω - ANSWER-A technician is checking resistance in an engine's spark plug
wires using an ohmmeter. A general rule is to replace a wire if resistance is over ?
,360° - ANSWER-How many degrees of CRANKSHAFT rotation are required for a piston
to travel from TDC to BDC and return to TDC?
4 (Four) - ANSWER-Most floor creepers have how many casters ?
4WD - ANSWER-Which vehicles use a transfer case ?
5 or 8 - ANSWER-When mounting an engine to an engine stand, what grade bolt should
be used ?
5/16 in. - ANSWER-A bolt that requires a 1/2 in. wrench to rotate is usually what size
when measured across the threads ?
6 - ANSWER-An alternator stator with three windings usually has how many diodes?
609 - ANSWER-Which of the following 'Section Numbers' of the Clean Air Act apply to
automotive air conditioning refrigerants ?
8 - ANSWER-How many ASE test must be passed to become a master automotive
technician ?
90dB - ANSWER-Hearing protection should be worn anytime the noise level exceeds?
A Boiling Point Tester - ANSWER-Brake fluid boiling point can be measured using ?
a broken ball stud - ANSWER-Which of the following causes for ball joint replacement
could also require steering knuckle replacement?
A customer service representative - ANSWER-Which description best fits the role of the
service advisor ?
a Hall Effect Sensor - ANSWER-A technician suspects that a faulty camshaft sensor
causes a driveability complaint. The sensor is equipped with a three-wire connector.
What type of sensor is this?
a heater core leak - ANSWER-A smeary film on the windshield is an indication of
a kinked or blocked hose - ANSWER-A windshield washer system is being checked.
Fluid is spraying from the nozzle on the passenger side, but not on the driver's side. Of
the following answers, what is the most likely cause?
a leaking check valve - ANSWER-All of the following can cause a problem in the Hydro-
boost system EXCEPT
, A mis-adjusted wheel sensor - ANSWER-The warning light on a vehicle with an anti-
lock brake system lights when the vehicle is started. When the vehicle is moving, the
light stays on. Which of the following could be the cause?
a Red Container - ANSWER-Gasoline should be stored in approved containers that
include what color(s) ?
A3/B3 - ANSWER-Which rating is the ACEA (European Automobile Manufacturers
Association) rating specified for use by many European vehicle manufacturers ?
About 1 foot (30 inches) - ANSWER-How high should the vehicle be raised, when
checking for stability ?
Age - ANSWER-What personal information should NOT be included on the resume?
All of the above - ANSWER-New vehicle preparation is usually an entry-level vehicle
service position and usually involves what duties ?
1. Installing dealer-installed options
2. Correcting tire pressures
3. Removal of all protective coverings and plastics
4. All of the above
ANSI (American National Standards Institute) - ANSWER-All safety glasses should
meet standards set by ?
At the outlet of the fuel rail - ANSWER-Where is the fuel-pressure regulator located on a
vacuum-biased port fuel-injection system?
Away from the flywheel and clutch disc - ANSWER-When the driver depresses the
clutch pedal, the pressure plate moves where ?
bench bleeding - ANSWER-All of the following are procedures for removing air from a
hydraulic system EXCEPT
Black - ANSWER-What type of socket should be used with an air-impact wrench ?
Both Technicians A and B - ANSWER-A front wheel drive vehicle with an automatic
transaxle has excessive vibration.
Technician A says that the vibration could be caused by worn engine/transaxle mounts.
Technician B says that the vibration could be caused by a misaligned engine/transaxle
sub-frame.
Which technician is correct?
