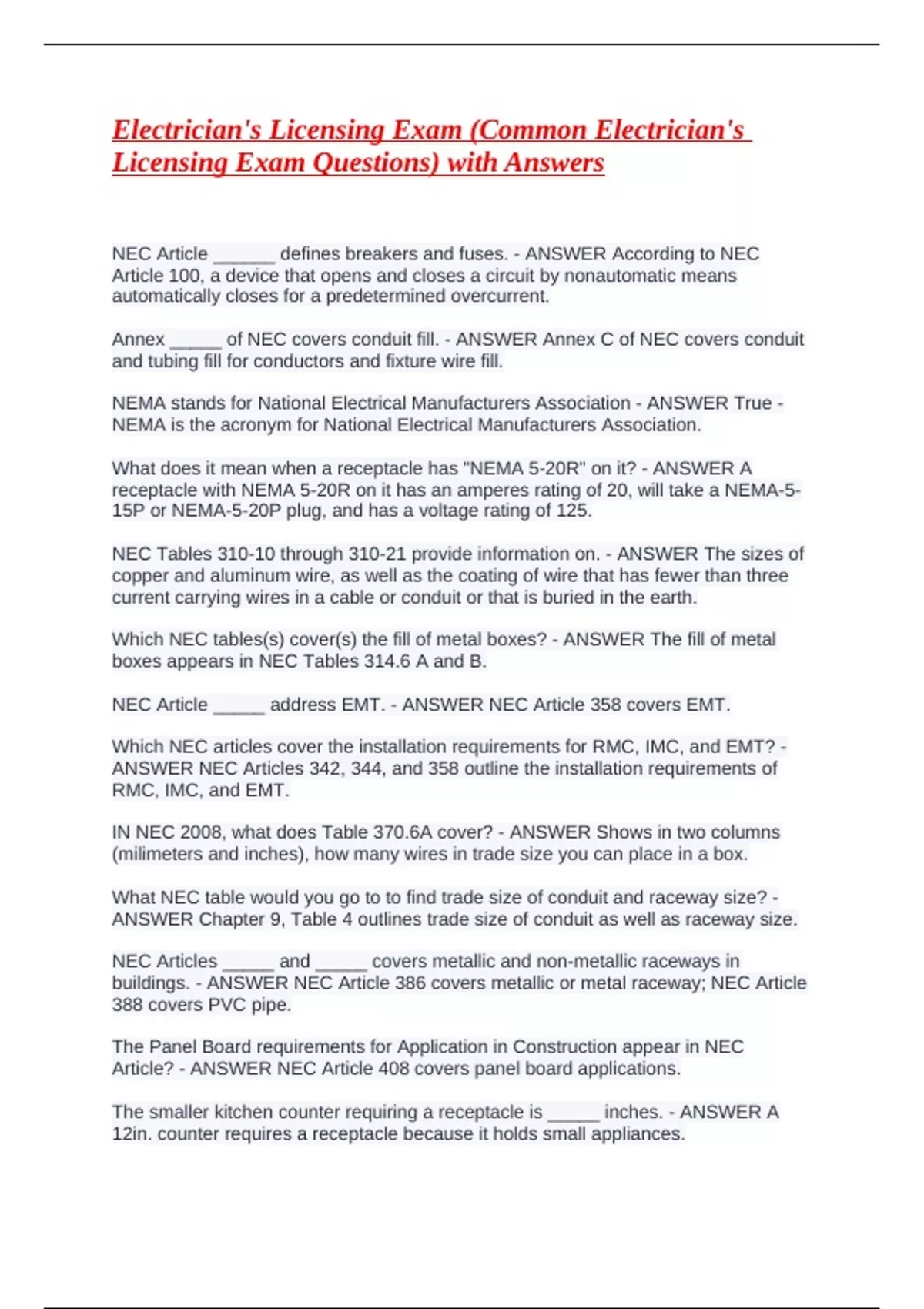

Electrician's Licensing Exam (Common Electrician's
Licensing Exam Questions) with Answers
NEC Article ______ defines breakers and fuses. - ANSWER According to NEC
Article 100, a device that opens and closes a circuit by nonautomatic means
automatically closes for a predetermined overcurrent.
Annex _____ of NEC covers conduit fill. - ANSWER Annex C of NEC covers conduit
and tubing fill for conductors and fixture wire fill.
NEMA stands for National Electrical Manufacturers Association - ANSWER True -
NEMA is the acronym for National Electrical Manufacturers Association.
What does it mean when a receptacle has "NEMA 5-20R" on it? - ANSWER A
receptacle with NEMA 5-20R on it has an amperes rating of 20, will take a NEMA-5-
15P or NEMA-5-20P plug, and has a voltage rating of 125.
NEC Tables 310-10 through 310-21 provide information on. - ANSWER The sizes of
copper and aluminum wire, as well as the coating of wire that has fewer than three
current carrying wires in a cable or conduit or that is buried in the earth.
Which NEC tables(s) cover(s) the fill of metal boxes? - ANSWER The fill of metal
boxes appears in NEC Tables 314.6 A and B.
NEC Article _____ address EMT. - ANSWER NEC Article 358 covers EMT.
Which NEC articles cover the installation requirements for RMC, IMC, and EMT? -
ANSWER NEC Articles 342, 344, and 358 outline the installation requirements of
RMC, IMC, and EMT.
IN NEC 2008, what does Table 370.6A cover? - ANSWER Shows in two columns
(milimeters and inches), how many wires in trade size you can place in a box.
What NEC table would you go to to find trade size of conduit and raceway size? -
ANSWER Chapter 9, Table 4 outlines trade size of conduit as well as raceway size.
NEC Articles _____ and _____ covers metallic and non-metallic raceways in
buildings. - ANSWER NEC Article 386 covers metallic or metal raceway; NEC Article
388 covers PVC pipe.
The Panel Board requirements for Application in Construction appear in NEC
Article? - ANSWER NEC Article 408 covers panel board applications.
The smaller kitchen counter requiring a receptacle is _____ inches. - ANSWER A
12in. counter requires a receptacle because it holds small appliances.
,What new code is needed for protection in all habitable spaces? - ANSWER
According to new codes, ARC fault protection is needed many additional parts of the
house.
A 12-foot hallway requires one receptacle to meet code. (True or False) - ANSWER
True, One is required, Two are suggested.
NEC Article 100 is dedicated to? - ANSWER Definitions
The main ground on a service is a(n) _____. - ANSWER Ground Rod
What does NEC Section 250-28A require? - ANSWER A main bonding jumper and a
system bonding jumper.
NEC section 250-28A provides information on what material can be used for a main
bonding jumper. (True or False) - ANSWER True
A bonding screw is what color? - ANSWER A bonding screw is green.
A subpanel requires a bonding screw? (True or False) - ANSWER False, A bonding
screw is unneeded in a subpanel.
Name the methods of sizing bonding jumpers outlined in NEC Section 250-28D. -
ANSWER 1. Bonding jumper is sized not less than 12.5% of the largest phase
conductor.
2. Based on the largest ungrounded service conductor.
3. Based on the largest sum of the service conductors.
NEC Table _____ covers grounding electrode conductor sizing. - ANSWER NEC
Table 250.66
Which NEC reference identifies wire sizing and the temperature a wire can handle in
amps? - ANSWER NEC Tables Annex C1 and C2 identify both wire sizing and the
temperature a wire can handle in amps.
Define a grounding system according to NEC. - ANSWER A gounding system is
connected to the ground or to a conductive body that extends the ground connection.
What is the topic of NEC Section 250-122? - ANSWER Is dedicated to the sizes of
the grounding conductor
What is the NEC definition of a circuit breaker? - ANSWER A device designed to trip
when an overcurrent is detected.
NEC Section 300-13 provides information on? - ANSWER Mechanical and Electrical
continuity conductors.
What is the subject of NEC Section 250-2D? - ANSWER Bonding jumpers
, ______ are the subject of NEC Section 680-20. - ANSWER Electrical installations at
permanently installed pools.
Which NEC Section covers equipment grounding conductors. - ANSWER NEC
Section 250-118
Which NEC sections covers identification of equipment grounding conductors? -
ANSWER NEC Section 250-119 1-14
Which NEC Section covers ground terminal identification. - ANSWER NEC Section
250-126
Bonding is the establishment of ______ connection between metal parts. - ANSWER
Reliable
NEC Section 250-134 provides information on what topic? - ANSWER Equipment
fastened or connection between metal parts.
Equipment grounding conductor _____ is (are) discussed in NEC Section 250-130. -
ANSWER Connections
NEC Section 250-118 states that a grounded conduct must run _____ flexible
conduit. - ANSWER inside
NEC Section _____ oversees bonding of flexible type conduit. - ANSWER NEC
Section 250.118(5)
Which NEC article covers cable trays? - ANSWER NEC Article 392
What is the proper procedure for bonding a motor conduit with metal flex? -
ANSWER A bonding jumper should be installed inside or outside raceway within 6ft.
of attachment. (NEC 250.118)
Threaded pipe can be used for bonding purposes? (True or False) - ANSWER True
(NEC 250.92B)
Shoulder fittings with locknuts are allowable as bonding devices? (True or False) -
ANSWER True (NEC 250.92B)
What kind of information does NEC Section 250-66 cover? - ANSWER Covers the
sizes of alternating current grounding electrode conductors.
NEC Section 250-102 is devoted to equipment _____. - ANSWER Equipment
Bonding Jumpers
Give guidelines for using sheet metal screws as bonding agents. - ANSWER
Electricians can use sheet metal screws for bonding when those screws are green
and have hexagonal heads (NEC 250.8), but it is generally considered unwise.
