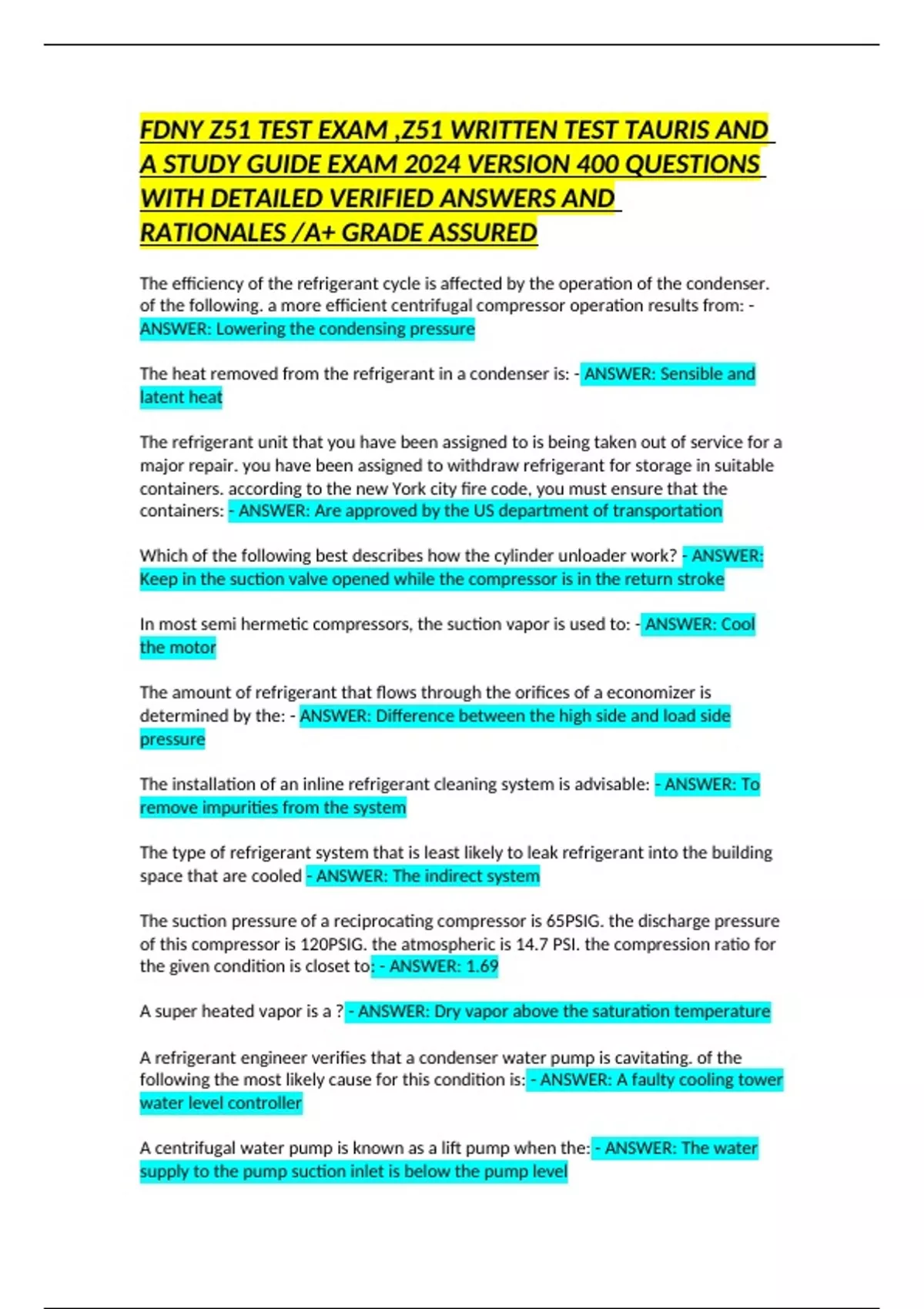

FDNY Z51 TEST EXAM ,Z51 WRITTEN TEST TAURIS AND
A STUDY GUIDE EXAM 2024 VERSION 400 QUESTIONS
WITH DETAILED VERIFIED ANSWERS AND
RATIONALES /A+ GRADE ASSURED
The efficiency of the refrigerant cycle is affected by the operation of the condenser.
of the following. a more efficient centrifugal compressor operation results from: -
ANSWER: Lowering the condensing pressure
The heat removed from the refrigerant in a condenser is: - ANSWER: Sensible and
latent heat
The refrigerant unit that you have been assigned to is being taken out of service for a
major repair. you have been assigned to withdraw refrigerant for storage in suitable
containers. according to the new York city fire code, you must ensure that the
containers: - ANSWER: Are approved by the US department of transportation
Which of the following best describes how the cylinder unloader work? - ANSWER:
Keep in the suction valve opened while the compressor is in the return stroke
In most semi hermetic compressors, the suction vapor is used to: - ANSWER: Cool
the motor
The amount of refrigerant that flows through the orifices of a economizer is
determined by the: - ANSWER: Difference between the high side and load side
pressure
The installation of an inline refrigerant cleaning system is advisable: - ANSWER: To
remove impurities from the system
The type of refrigerant system that is least likely to leak refrigerant into the building
space that are cooled - ANSWER: The indirect system
The suction pressure of a reciprocating compressor is 65PSIG. the discharge pressure
of this compressor is 120PSIG. the atmospheric is 14.7 PSI. the compression ratio for
the given condition is closet to: - ANSWER: 1.69
A super heated vapor is a ? - ANSWER: Dry vapor above the saturation temperature
A refrigerant engineer verifies that a condenser water pump is cavitating. of the
following the most likely cause for this condition is: - ANSWER: A faulty cooling tower
water level controller
A centrifugal water pump is known as a lift pump when the: - ANSWER: The water
supply to the pump suction inlet is below the pump level
,A TXV is used to maintain constant: - ANSWER: Evaporator superheat
The chilled water supply to the building is 55F. if the chiller is being used for human
comfort, should you be concerned about this , and why? - ANSWER: Yes, this
temperature is too high for human comfort purpose
The packing gland of a centrifugal pump serves to: - ANSWER: The drip part of the
packing gland gives evidence that there is water in the pump
Capacity control of a reciprocating hermetic compressor is typically achieved through
- ANSWER: Operation of the hot gas bypass valve
The most important reason to sub-cool the refrigerant in the condenser is to ensure
that: - ANSWER: A pure liquid refrigerant will enter the metering device
A refrigeration engineer is logging reading from a reciprocating system. compressor
discharge temperature have dropped significantly and the suction line pressure is
high. which of the following that may be causing this set of condition. - ANSWER: An
expansion valve that is open to wide
A low side float valve is used to maintain: - ANSWER: The level of the refrigerant in
the evaporator
Regarding fire safety, which ASHARE refrigerant safety classification indicates no
flammability and lower the toxicity? - ANSWER: A1
When an expansion valve is operating properly, at the end of the evaporator will
contain: - ANSWER: Only superheated vapor
What information is not contained in a material safety data sheet-MSDS? - ANSWER:
Cost of material
In a steam turbine, what is the function of the kingsbury thrust bearing - ANSWER:
Maintain axial positioning of the rotor shaft
A centrifugal water pump is considered to be fully primed when - ANSWER: The
pump is full of liquid
Copper tubing refrigerant lines must be installed for a new system. it is a well known
service practice that tubing collapses at bends that must be made, the refrigerant
engineer should use - ANSWER: Lever type tubing bender
A reciprocating compressor is making a knocking sound during operation. if the
refrigerant worn parts are not causing the knocking, what is probably the cause -
ANSWER: The slugging of the liquid refrigerant
, In order for a refrigerant to become superheated in a section of the lowside
refrigerant line: - ANSWER: Where no liquid refrigerant is present
All liquid has been recovered from a system to be overhauled, the system - ANSWER:
Should not be opened until all vapor has been removed
When a refrigerant engineer uses a portable compressor recovery unit to remove
vapor refrigerant from a refrigeration system the removal rate of the refrigerant will
gradually slow down because - ANSWER: The vapor density is decreasing
You are the engineer running a 2000-ton (steam-driven turbine) centrifugal
refrigeration system, a refrigeration system supplies chilled water to a college
campus with multiple buildings. During the course of making your rounds, you check
the 9 cell cooling tower on the roof. You note the water level in all of the cooling
tower cells is very low. Which one of the following immediate action would take? -
ANSWER: Add additional make up water to cooling tower
A rooftop water cooling tower is connected to a water pump in the building
basement with a 12 inches diameter pipe. with the pump turn off, a pressure gauge
at the pumps inlet show a pressure of 140 PSIG the height of the water column, in
feet, would be closet to. - ANSWER: 323
What device protects the steam turbine from excessive speed? - ANSWER: governor
assembly
A refrigeration compressor has failed to turn on. the refrigeration engineer on duty
verifies that the electrical circuit to the motor, including all switches and circuit
breakers, is complete according to recommended service practice, the next item to
be checked would likely be the: - ANSWER: Temperature and pressure controls
Refrigerants are characterized by their physical properties included flash point,
refrigeration effect, and others. of the refrigerant in commercial and industrial the
highest latent hear and refrigerant effect is: - ANSWER: Ammonia
On what characteristics is ASHRAE refrigerant safety group classification system: -
ANSWER: Flammability and toxicity
Of the following, and example of an in-line refrigerant cleaning system that may be
used with a centrifugal compressor containing R123 refrigerant is: - ANSWER:
Refrigerant recycling
Information about the physical and chemical properties of a hazardous material can
be found in: - ANSWER: Material Safety Data Sheet
What is the function of the turbine auxiliary oil pump? - ANSWER: Establish oil
pressure during turbine start up
