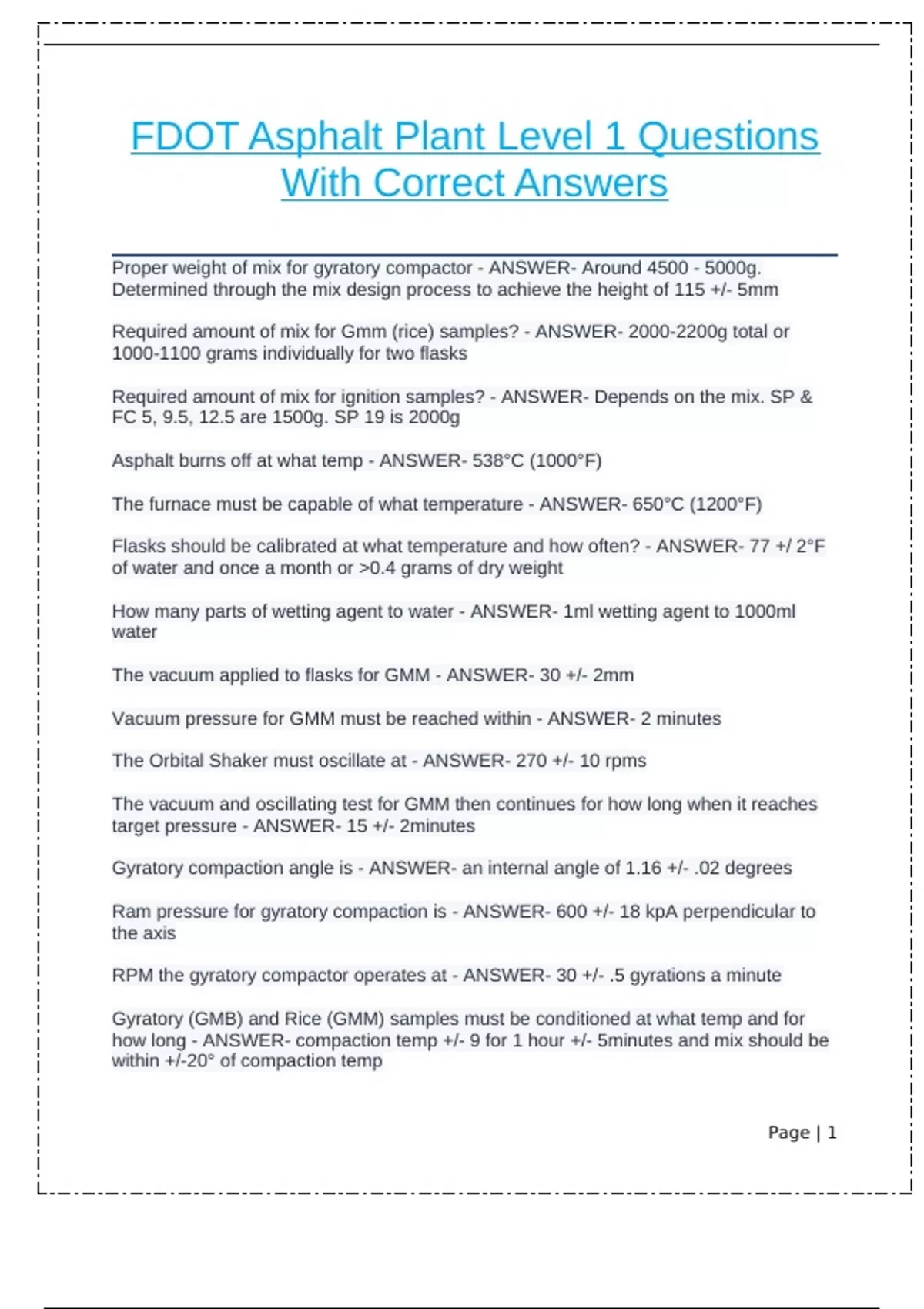

FDOT Asphalt Plant Level 1 Questions
With Correct Answers
Proper weight of mix for gyratory compactor - ANSWER- Around 4500 - 5000g.
Determined through the mix design process to achieve the height of 115 +/- 5mm
Required amount of mix for Gmm (rice) samples? - ANSWER- 2000-2200g total or
1000-1100 grams individually for two flasks
Required amount of mix for ignition samples? - ANSWER- Depends on the mix. SP &
FC 5, 9.5, 12.5 are 1500g. SP 19 is 2000g
Asphalt burns off at what temp - ANSWER- 538°C (1000°F)
The furnace must be capable of what temperature - ANSWER- 650°C (1200°F)
Flasks should be calibrated at what temperature and how often? - ANSWER- 77 +/ 2°F
of water and once a month or >0.4 grams of dry weight
How many parts of wetting agent to water - ANSWER- 1ml wetting agent to 1000ml
water
The vacuum applied to flasks for GMM - ANSWER- 30 +/- 2mm
Vacuum pressure for GMM must be reached within - ANSWER- 2 minutes
The Orbital Shaker must oscillate at - ANSWER- 270 +/- 10 rpms
The vacuum and oscillating test for GMM then continues for how long when it reaches
target pressure - ANSWER- 15 +/- 2minutes
Gyratory compaction angle is - ANSWER- an internal angle of 1.16 +/- .02 degrees
Ram pressure for gyratory compaction is - ANSWER- 600 +/- 18 kpA perpendicular to
the axis
RPM the gyratory compactor operates at - ANSWER- 30 +/- .5 gyrations a minute
Gyratory (GMB) and Rice (GMM) samples must be conditioned at what temp and for
how long - ANSWER- compaction temp +/- 9 for 1 hour +/- 5minutes and mix should be
within +/-20° of compaction temp
Page | 1
, The mold and base plate for the gyratory compactor should be in the oven for how long
- ANSWER- 30 to 60 minutes
Target specific height for pills - ANSWER- 115.0mm +/- 5mm
How do you determine aggregate is dry? - ANSWER- Weigh the material every 15
minutes when it has lost less than 0.5 grams is it considered dry
Bulk specific gravity (pill) water weight is determined after - ANSWER- 4 +/- 1 minute
When the pill is removed from the water it should be blotted and weighed in what time
and how - ANSWER- 5 seconds with a top and bot flip and then a roll roll
The towel should be damp
Formula for GMB (BSG) - ANSWER- Dry ÷ (SSD - Water Weight)
Round to 3 decimal places
Calculating air voids - ANSWER- (Gmm - Gmb ÷ Gmm) × 100
For Asphalt Binders PG stands for what? - ANSWER- Performance Graded
What do the numbers mean for an asphalt binder? ex: PG 67-22 - ANSWER- 67 is the
average 7 day high temp in Celsius and 22 is the negative low temp in Celsius
ATPB stands for and is used in what? - ANSWER- Asphalt Treatsd Permeable Base
Used under concrete for drainage
Friction Courses are required on what jobs based on AADT and Design Speed -
ANSWER- AADT > 3000
Design Speed > 35 mph
A PMA asphalt binder stands for what? - ANSWER- Polymer Modified Asphalt
An ARB asphalt binder stands for what? - ANSWER- Asphalt Rubber Binder
Subgrade requires an LBR of what? - ANSWER- 40
When do you sample tack? - ANSWER- During unloading when it reaches 1/3 of the
load
What do you do first before sampling tack or binder? - ANSWER- Discard the first gallon
to clear the line
What is the goal of sampling? - ANSWER- To be done so randomly to avoid bias and
creat uniform representative samples
Page | 2
