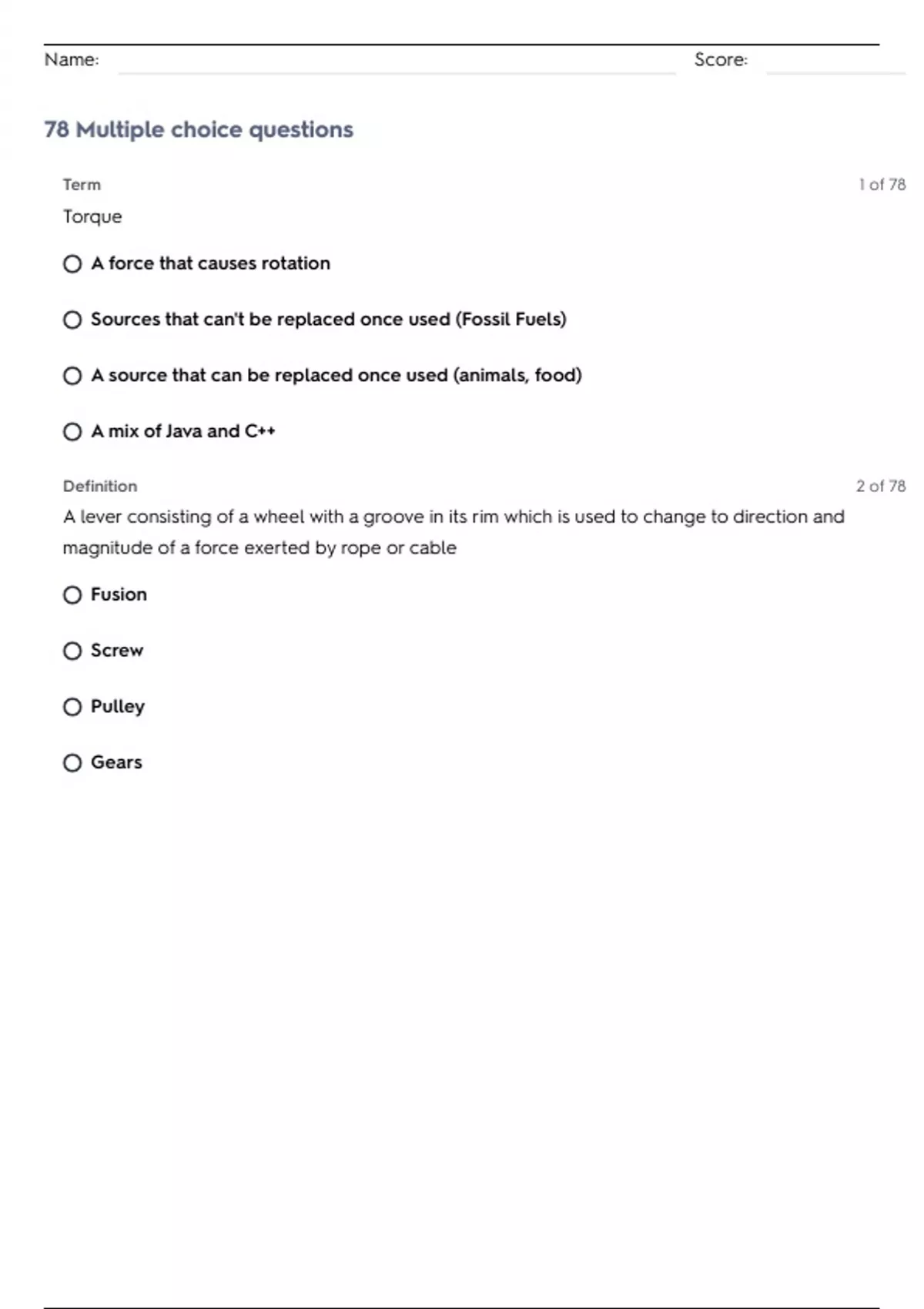

Name: Score:
78 Multiple choice questions
Term 1 of 78
Torque
A force that causes rotation
Sources that can't be replaced once used (Fossil Fuels)
A source that can be replaced once used (animals, food)
A mix of Java and C++
Definition 2 of 78
A lever consisting of a wheel with a groove in its rim which is used to change to direction and
magnitude of a force exerted by rope or cable
Fusion
Screw
Pulley
Gears
,Term 3 of 78
Gears
Used for creating rotary motion and torque through interlocking teeth, made when gears
are meshed
Use "//" so the program will not read what is written, it is in the green color
Gears on the same shaft will always turn the same direction and have the same RPM
Number of teeth out/ number of teeth in
Diameter out/ diameter in
Torque out/ Torque in
Angular velocity in/ angular velocity out
Definition 4 of 78
Energy that, in theory, should work. They are inexhaustible (Magnetic energy)
Alternative energy
Inexhaustible
First class lever
Theoretical energy sources
Definition 5 of 78
A mix of Java and C++
ROBOT C
Flowchart
Process
Sensors
, Definition 6 of 78
Goes from 0-120 degrees, a "Position value"
Light Sensor
Idler gears
Torque
Servos
Definition 7 of 78
Number of teeth out/ number of teeth in
Diameter out/ diameter in
Torque out/ Torque in
Angular velocity in/ angular velocity out
Inexhaustible
Gear Rations
Geothermal
Potentiometer
Term 8 of 78
Torque output on gears
Gear ratio * Torque input
A force that causes rotation
Hydrogen or batteries
Mechanical advantage * Force input
