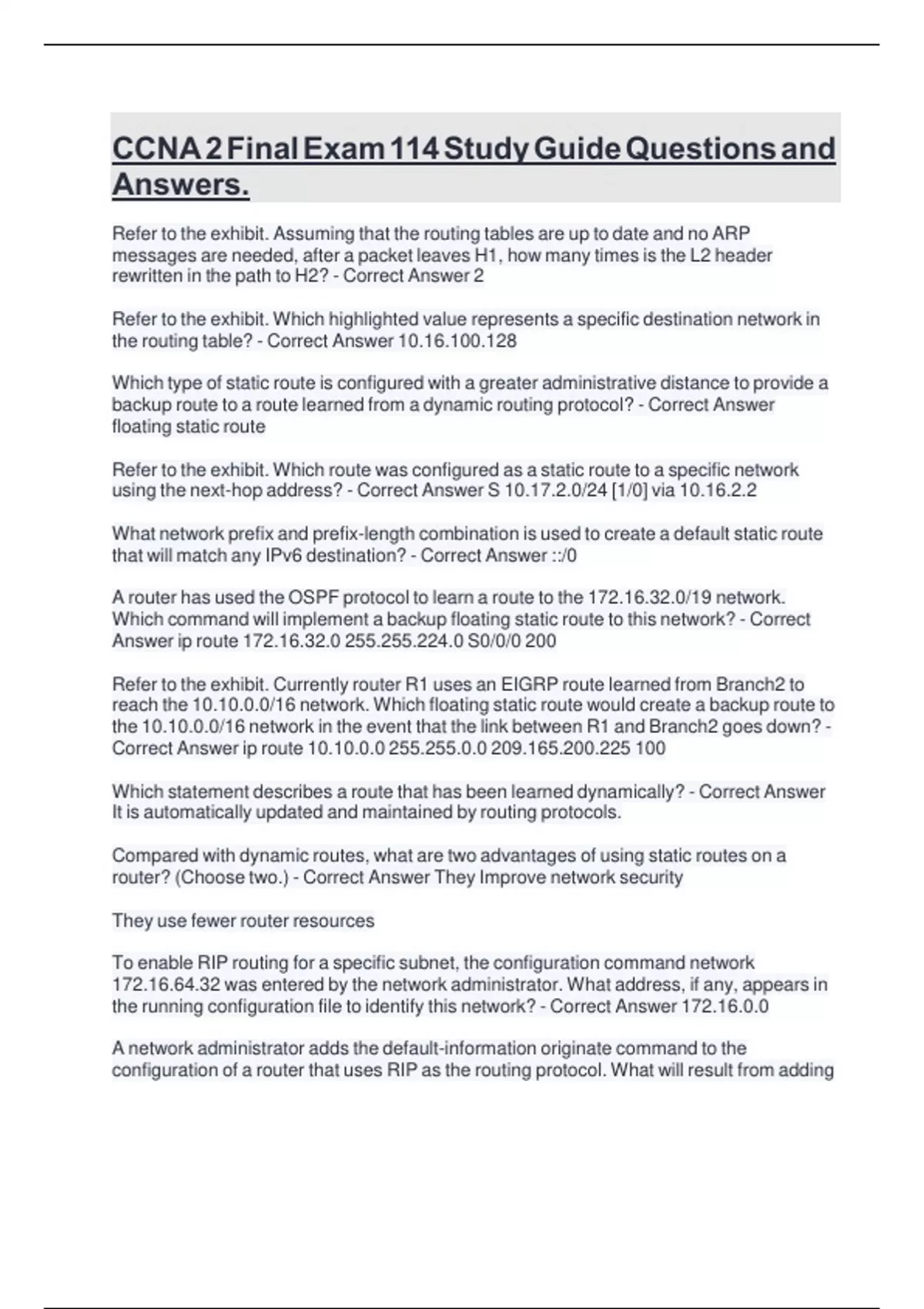

CCNA 2 Final Exam 114 Study Guide Questions and
Answers.
Refer to the exhibit. Assuming that the routing tables are up to date and no ARP
messages are needed, after a packet leaves H1, how many times is the L2 header
rewritten in the path to H2? - Correct Answer 2
Refer to the exhibit. Which highlighted value represents a specific destination network in
the routing table? - Correct Answer 10.16.100.128
Which type of static route is configured with a greater administrative distance to provide a
backup route to a route learned from a dynamic routing protocol? - Correct Answer
floating static route
Refer to the exhibit. Which route was configured as a static route to a specific network
using the next-hop address? - Correct Answer S 10.17.2.0/24 [1/0] via 10.16.2.2
What network prefix and prefix-length combination is used to create a default static route
that will match any IPv6 destination? - Correct Answer ::/0
A router has used the OSPF protocol to learn a route to the 172.16.32.0/19 network.
Which command will implement a backup floating static route to this network? - Correct
Answer ip route 172.16.32.0 255.255.224.0 S0/0/0 200
Refer to the exhibit. Currently router R1 uses an EIGRP route learned from Branch2 to
reach the 10.10.0.0/16 network. Which floating static route would create a backup route to
the 10.10.0.0/16 network in the event that the link between R1 and Branch2 goes down? -
Correct Answer ip route 10.10.0.0 255.255.0.0 209.165.200.225 100
Which statement describes a route that has been learned dynamically? - Correct Answer
It is automatically updated and maintained by routing protocols.
Compared with dynamic routes, what are two advantages of using static routes on a
router? (Choose two.) - Correct Answer They Improve network security
They use fewer router resources
To enable RIP routing for a specific subnet, the configuration command network
172.16.64.32 was entered by the network administrator. What address, if any, appears in
the running configuration file to identify this network? - Correct Answer 172.16.0.0
A network administrator adds the default-information originate command to the
configuration of a router that uses RIP as the routing protocol. What will result from adding
, this command? - Correct Answer The router will propagate a static default route in its RIP
updates, if one is present.
Refer to the exhibit. What is the administrative distance value that indicates the route for
R2 to reach the 10.10.0.0/16 network? - Correct Answer 1
.Which route will a router use to forward an IPv4 packet after examining its routing table
for the best match with the destination address? - Correct Answer a level 1 ultimate route
Refer to the exhibit. An administrator is attempting to install an IPv6 static route on router
R1 to reach the network attached to router R2. After the static route command is entered,
connectivity to the network is still failing. What error has been made in the static route
configuration? - Correct Answer The interface is incorrect
A network administrator reviews the routing table on the router and sees a route to the
destination network 172.16.64.0/18 with a next-hop IP address of 192.168.1.1. What are
two descriptions of this route? (Choose two.) - Correct Answer level 2 child route
ultimate route
Which two factors are important when deciding which interior gateway routing protocol to
use? (Choose two.) - Correct Answer scalability
speed of convergence
Employees of a company connect their wireless laptop computers to the enterprise LAN
via wireless access points that are cabled to the Ethernet ports of switches. At which layer
of the three-layer hierarchical network design model do these switches operate? - Correct
Answer access
What is a basic function of the Cisco Borderless Architecture access layer? - Correct
Answer provides access to the user
What is a characteristic of the distribution layer in the three layer hierarchical model? -
Correct Answer provides access to the rest of the network through switching, routing, and
network access policies
Which information does a switch use to populate the MAC address table? - Correct
Answer the source MAC address and the incoming port
Which statement is correct about Ethernet switch frame forwarding decisions? - Correct
Answer Frame forwarding decisions are based on MAC address and port mappings in the
CAM table.
