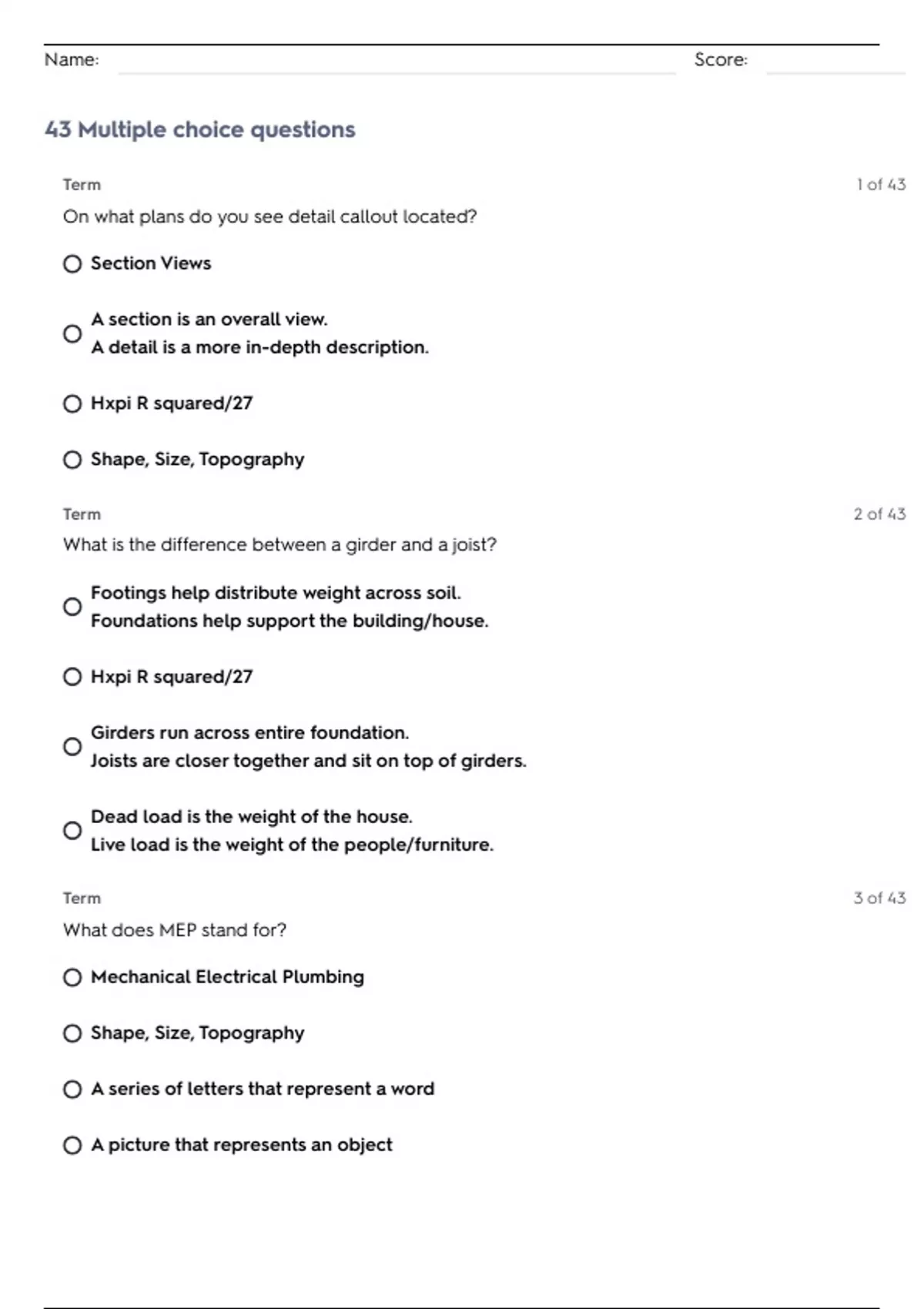

Name: Score:
43 Multiple choice questions
Term 1 of 43
On what plans do you see detail callout located?
Section Views
A section is an overall view.
A detail is a more in-depth description.
Hxpi R squared/27
Shape, Size, Topography
Term 2 of 43
What is the difference between a girder and a joist?
Footings help distribute weight across soil.
Foundations help support the building/house.
Hxpi R squared/27
Girders run across entire foundation.
Joists are closer together and sit on top of girders.
Dead load is the weight of the house.
Live load is the weight of the people/furniture.
Term 3 of 43
What does MEP stand for?
Mechanical Electrical Plumbing
Shape, Size, Topography
A series of letters that represent a word
A picture that represents an object
,Term 4 of 43
What is a lintel?
What distributes the weight over the door
A series of letters that represent a word
A picture that represents an object
MET (Mechanical Engineering Technology)
Term 5 of 43
What is the difference between a footing and a foundation wall?
Dead load is the weight of the house.
Live load is the weight of the people/furniture.
Girders run across entire foundation.
Joists are closer together and sit on top of girders.
A section is an overall view.
A detail is a more in-depth description.
Footings help distribute weight across soil.
Foundations help support the building/house.
Definition 6 of 43
Number, Frame Type, Width, Height, Sill, Head, Jamb, Remarks, Thermal Resistance, Manufacture,
Count, Keynote
A roof slope of 4/12 means what?
Information to find in a Window Schedule
Information to find in a Door Schedule
What is the difference between a girder and a joist?
, Term 7 of 43
Mansard
Term 8 of 43
What is a symbol?
Fixtures, Fittings, Isometric Drawings, Outlets
A picture that represents an object
A section is an overall view.
A detail is a more in-depth description.
A series of letters that represent a word
