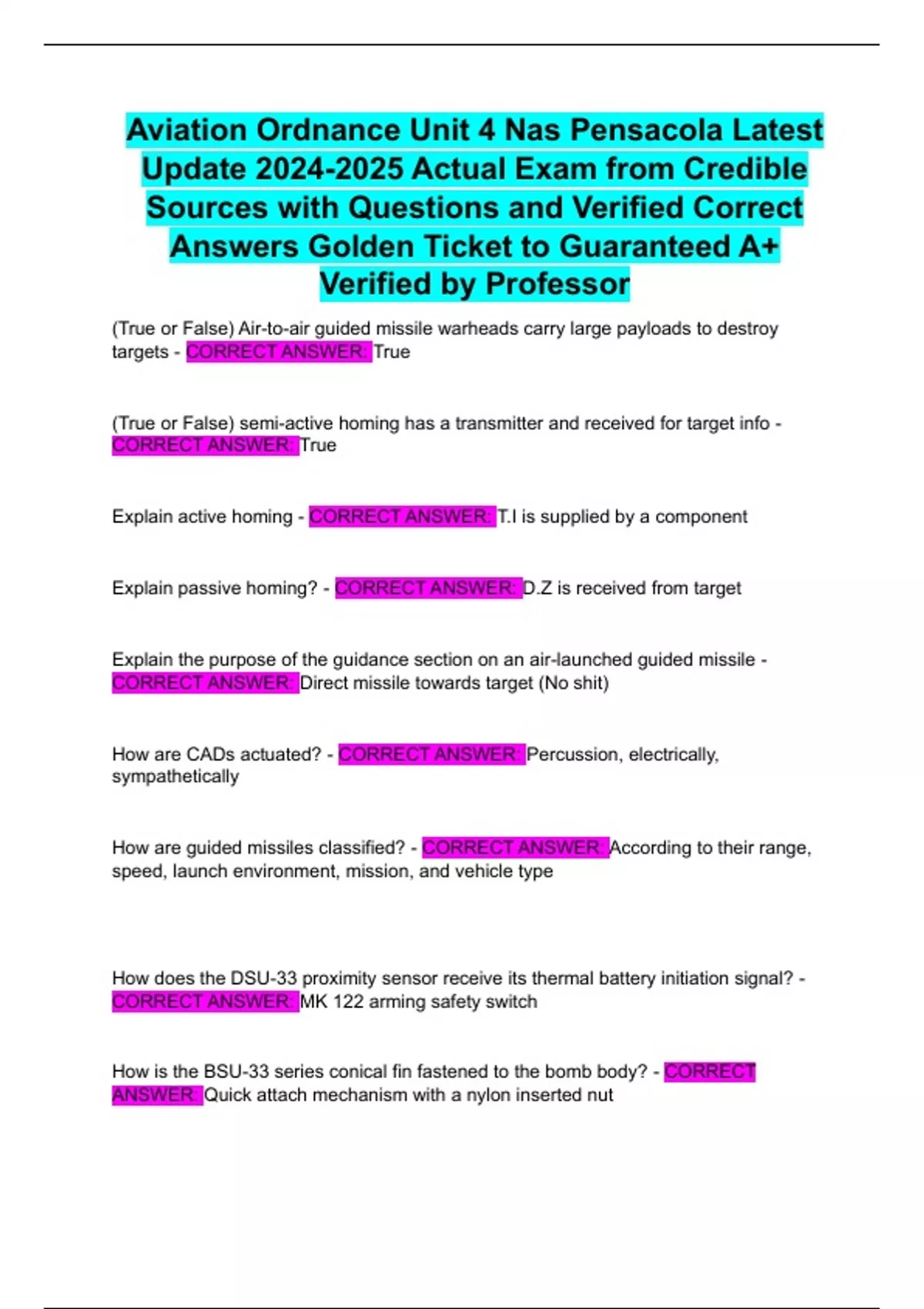

Aviation Ordnance Unit 4 Nas Pensacola Latest
Update 2024-2025 Actual Exam from Credible
Sources with Questions and Verified Correct
Answers Golden Ticket to Guaranteed A+
Verified by Professor
(True or False) Air-to-air guided missile warheads carry large payloads to destroy
targets - CORRECT ANSWER: True
(True or False) semi-active homing has a transmitter and received for target info -
CORRECT ANSWER: True
Explain active homing - CORRECT ANSWER: T.I is supplied by a component
Explain passive homing? - CORRECT ANSWER: D.Z is received from target
Explain the purpose of the guidance section on an air-launched guided missile -
CORRECT ANSWER: Direct missile towards target (No shit)
How are CADs actuated? - CORRECT ANSWER: Percussion, electrically,
sympathetically
How are guided missiles classified? - CORRECT ANSWER: According to their range,
speed, launch environment, mission, and vehicle type
How does the DSU-33 proximity sensor receive its thermal battery initiation signal? -
CORRECT ANSWER: MK 122 arming safety switch
How is the BSU-33 series conical fin fastened to the bomb body? - CORRECT
ANSWER: Quick attach mechanism with a nylon inserted nut
, How many feet of reinforced concrete can a BLU-109 series bomb penetrate? -
CORRECT ANSWER: 4 to 6 ft.
How many flares can be loaded into the SUU-25 F/A dispenser? - CORRECT
ANSWER: 8
How many rounds of Chaff/flares will the AN/ALE-39 dispenser hold? - CORRECT
ANSWER: 30
List four major components of a gbu - CORRECT ANSWER: CCG, AFG, fuze, bomb
body.
List the two modes of delivery using the snake-eye fin. - CORRECT ANSWER: Non-
retarded, Retarded
State the distance between the lugs on a mk 83 bomb body - CORRECT ANSWER: 14
inches
State the mode of delivery when using the conical fin. - CORRECT ANSWER: Retarded
State the purpose of thermal protection - CORRECT ANSWER: Increased cook-off time
The M90E4 is thermal protected. Why is this important? - CORRECT ANSWER: Keep
interior cool
What are the 2 basic types of signal underwater sound devices? - CORRECT
ANSWER: Explosive and Electronic
What are the 2 modifications of fire bomb in use today? - CORRECT ANSWER: MK77
mods 4 and 5
