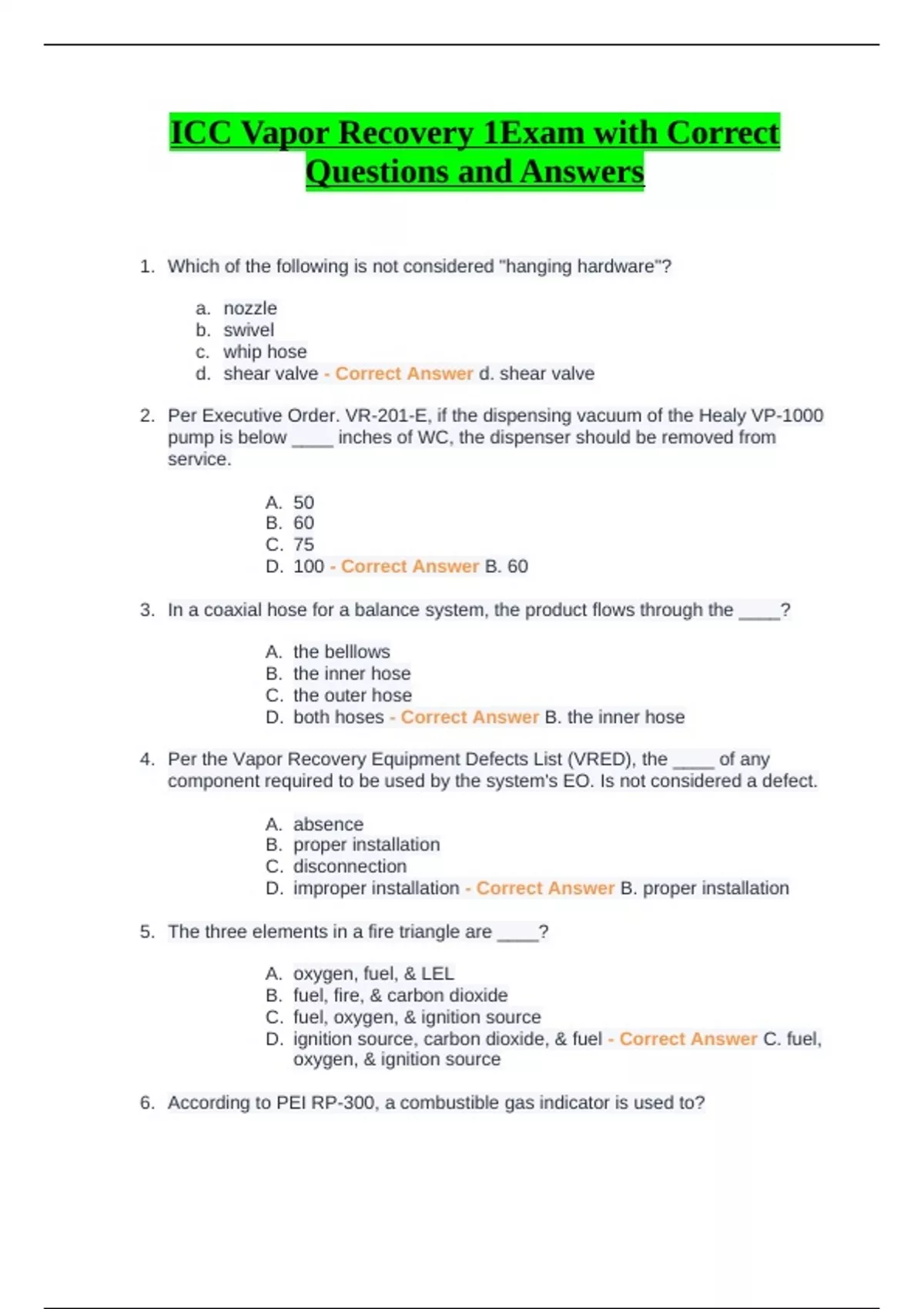

ICC Vapor Recovery 1Exam with Correct
Questions and Answers
1. Which of the following is not considered "hanging hardware"?
a. nozzle
b. swivel
c. whip hose
d. shear valve - Correct Answer d. shear valve
2. Per Executive Order. VR-201-E, if the dispensing vacuum of the Healy VP-1000
pump is below ____ inches of WC, the dispenser should be removed from
service.
A. 50
B. 60
C. 75
D. 100 - Correct Answer B. 60
3. In a coaxial hose for a balance system, the product flows through the ____?
A. the belllows
B. the inner hose
C. the outer hose
D. both hoses - Correct Answer B. the inner hose
4. Per the Vapor Recovery Equipment Defects List (VRED), the ____ of any
component required to be used by the system's EO. Is not considered a defect.
A. absence
B. proper installation
C. disconnection
D. improper installation - Correct Answer B. proper installation
5. The three elements in a fire triangle are ____?
A. oxygen, fuel, & LEL
B. fuel, fire, & carbon dioxide
C. fuel, oxygen, & ignition source
D. ignition source, carbon dioxide, & fuel - Correct Answer C. fuel,
oxygen, & ignition source
6. According to PEI RP-300, a combustible gas indicator is used to?
, A. determine carbon dioxide levels
B. monitor benzene, toluene, & ethyl benzene levels
C. determine the (UEL) upper explosion limit of gasoline
D. detect vapor leaks in the vapor recovery system - Correct
Answer D. detect vapor leaks in the vapor recovery system
7. Per CP-201, liquid traps in the dispenser vapor piping are:
A. Not allowed
B. Allowed only with an assist system
C. Allowed if approved by CARB
D. Allowed when hoses with liquid removal systems are used
E. detect vapor leaks in the vapor recovery system - Correct
Answer A. Not allowed
8. Which of the following is not an overfill device?
A. ball-float
B. spill-bucket
C. tank overfill alarm
D. drop-tube flapper valve - Correct Answer B. spill-bucket
9. Piping should have a minimum and maximum slope of ____ inch
A. 1/16"-1/8"
B. 1/8"-1/4"
C. 1/8"-3/16"
D. 1/4"-1/2" - Correct Answer B. 1/8"-1/4"
10. What is the appropriate way to clean up a small spill of gasoline?
A. allow the product to evaporate from the area
B. wash the spilled product from the area with water
C. apply absorbent to the affected area and leave to soak up fuel
D. apply absorbent to the affected area, then remove & dispose of
absorbent in accordance with applicable requirements - Correct
Answer D. apply absorbent to the affected area, then remove &
dispose of absorbent in accordance with applicable requirements
11. Placing a bare copper wire from the ____ to the ____ with it's ends exposed is
helpful with pipe run locating.
A. tank monitor to emergency shut-off switch
B. tank to turbine
C. vapor recovery bucket to interstitial monitor
