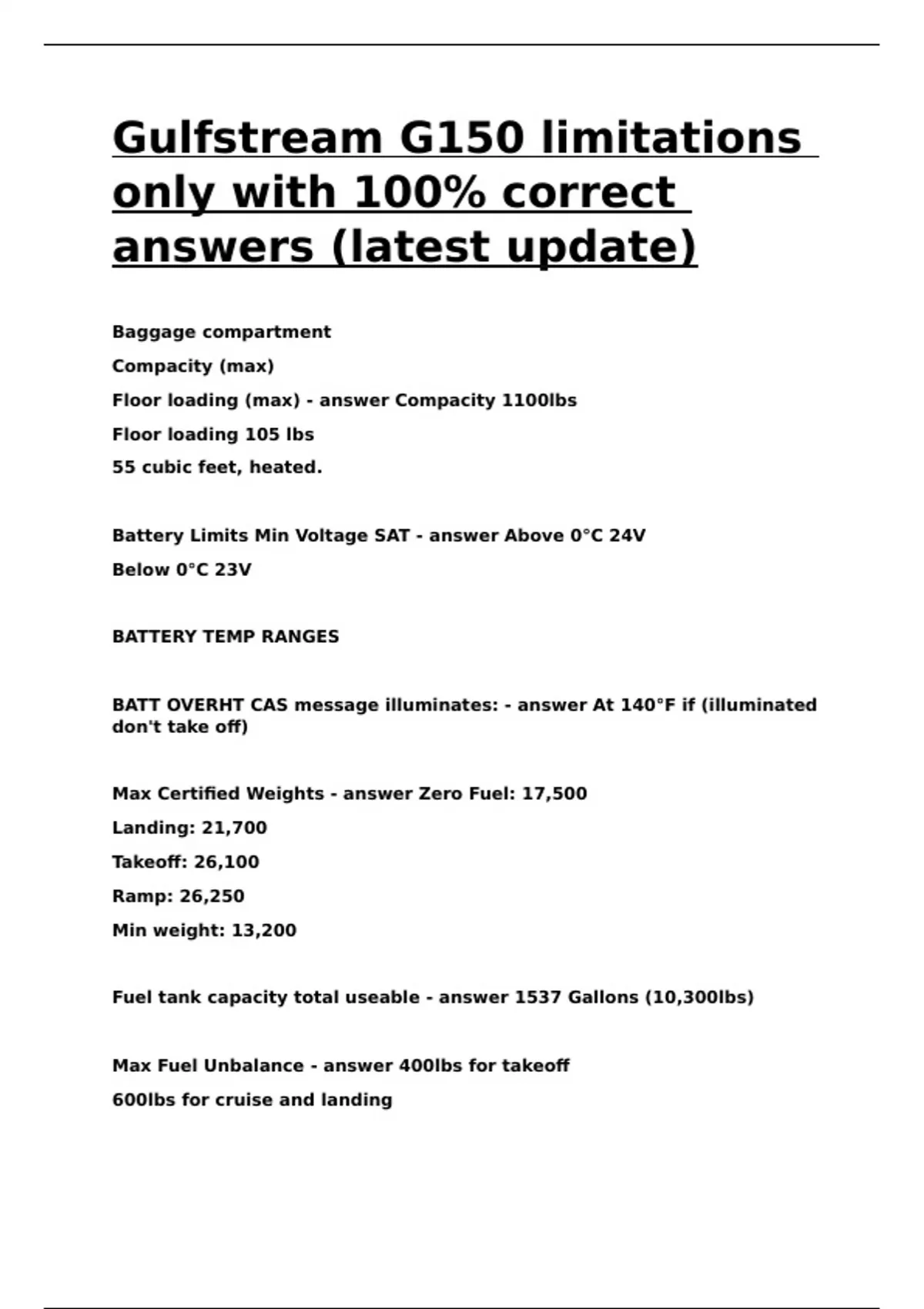

Gulfstream G150 limitations
only with 100% correct
answers (latest update)
Baggage compartment
Compacity (max)
Floor loading (max) - answer Compacity 1100lbs
Floor loading 105 lbs
55 cubic feet, heated.
Battery Limits Min Voltage SAT - answer Above 0°C 24V
Below 0°C 23V
BATTERY TEMP RANGES
BATT OVERHT CAS message illuminates: - answer At 140°F if (illuminated
don't take off)
Max Certified Weights - answer Zero Fuel: 17,500
Landing: 21,700
Takeoff: 26,100
Ramp: 26,250
Min weight: 13,200
Fuel tank capacity total useable - answer 1537 Gallons (10,300lbs)
Max Fuel Unbalance - answer 400lbs for takeoff
600lbs for cruise and landing
, Max N1 and N2 - answer Transient: N1: 100% to 100.8% for 10 seconds
N2 APR off: 100.4% to 102.5% for 10 seconds
N2 APR on: 101% to 102.5% for 10 seconds
Overspeed: Red Indications
Shutdown: Operate 2 minutes at 38% N1 or below for 2 minutes (including
taxi time)
Max ITT - answer Starting: 990°C
Takeoff: 1004°C
Takeoff with APR activated: 1022° (5 min max)
Max continuous: 990°C
Max climb: 974°C (Recommended)
Max cruise: 949°C (Recommended)
Oil pressure at normal operation temps - answer Engine start: indications
within 10 seconds after lightoff
Idle below 30°C: 50-150psi
Idle above 30°C: 62-83psi
Takeoff, climb, and cruise: 62-83psi
Transient: 100psi (3 min max)
Oil temperature - answer Starting: (min continuous operation) at temps
below -40°C for extended periods, preheat engine before attempting start.
Up to 30,000ft: 30-127°C
Above 30,000ft: 30-140°C
Transient: 149°C (2 min all altitudes)
DC STARTER / GENERATOR
LIMITATIONS - answer Max continuous ground/flight operations 300 amps
