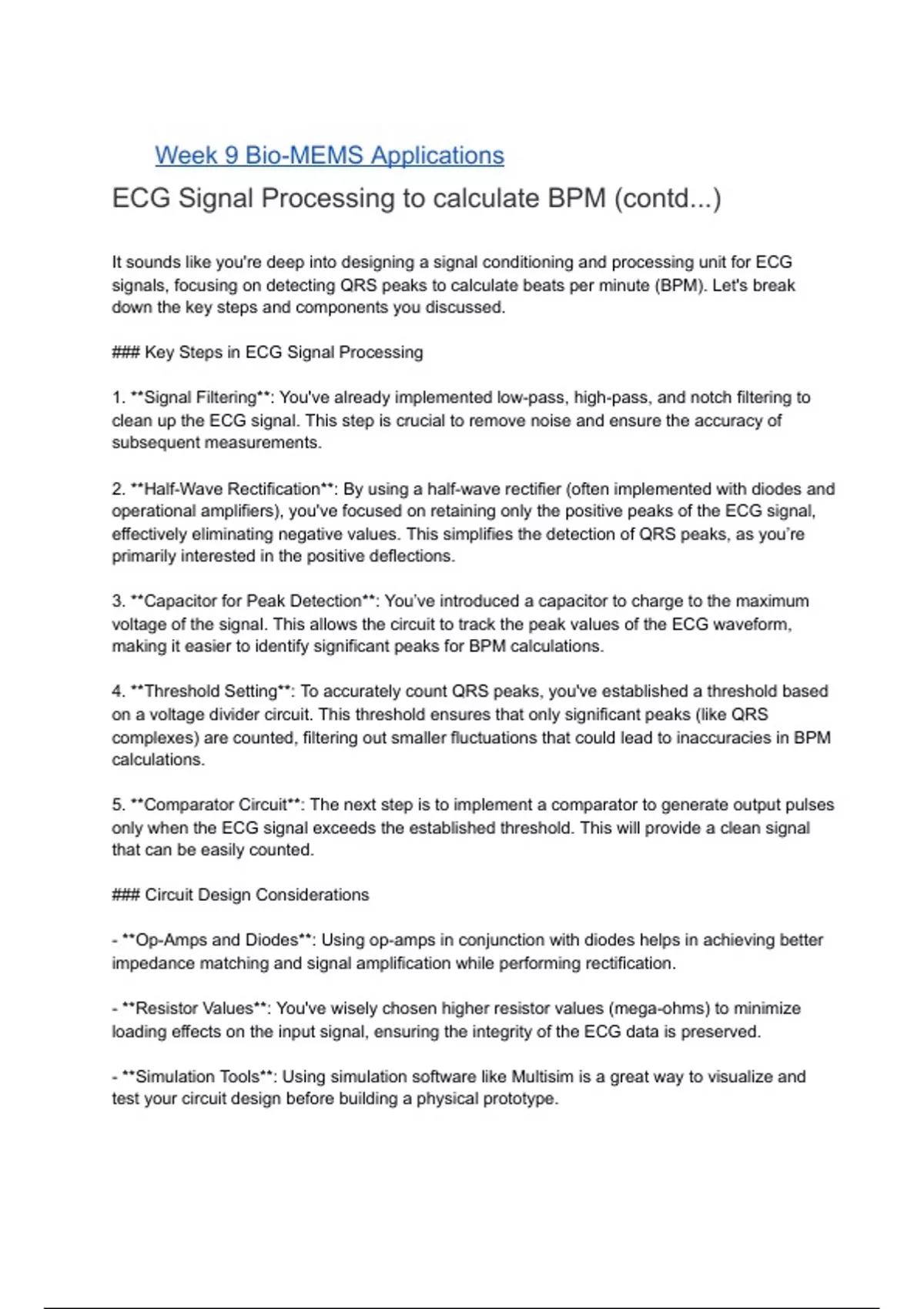

Week 9 Bio-MEMS Applications
ECG Signal Processing to calculate BPM (contd...)
It sounds like you're deep into designing a signal conditioning and processing unit for ECG
signals, focusing on detecting QRS peaks to calculate beats per minute (BPM). Let's break
down the key steps and components you discussed.
### Key Steps in ECG Signal Processing
1. **Signal Filtering**: You've already implemented low-pass, high-pass, and notch filtering to
clean up the ECG signal. This step is crucial to remove noise and ensure the accuracy of
subsequent measurements.
2. **Half-Wave Rectification**: By using a half-wave rectifier (often implemented with diodes and
operational amplifiers), you've focused on retaining only the positive peaks of the ECG signal,
effectively eliminating negative values. This simplifies the detection of QRS peaks, as you’re
primarily interested in the positive deflections.
3. **Capacitor for Peak Detection**: You’ve introduced a capacitor to charge to the maximum
voltage of the signal. This allows the circuit to track the peak values of the ECG waveform,
making it easier to identify significant peaks for BPM calculations.
4. **Threshold Setting**: To accurately count QRS peaks, you've established a threshold based
on a voltage divider circuit. This threshold ensures that only significant peaks (like QRS
complexes) are counted, filtering out smaller fluctuations that could lead to inaccuracies in BPM
calculations.
5. **Comparator Circuit**: The next step is to implement a comparator to generate output pulses
only when the ECG signal exceeds the established threshold. This will provide a clean signal
that can be easily counted.
### Circuit Design Considerations
- **Op-Amps and Diodes**: Using op-amps in conjunction with diodes helps in achieving better
impedance matching and signal amplification while performing rectification.
- **Resistor Values**: You've wisely chosen higher resistor values (mega-ohms) to minimize
loading effects on the input signal, ensuring the integrity of the ECG data is preserved.
- **Simulation Tools**: Using simulation software like Multisim is a great way to visualize and
test your circuit design before building a physical prototype.
,### Next Steps
1. **Build the Comparator Circuit**: Implement the comparator circuit to detect when the input
signal exceeds the threshold. This circuit will generate a pulse that can be counted to determine
the BPM.
2. **Simulation Testing**: Run simulations with various ECG waveforms to ensure your
threshold and comparator settings are robust and accurate in detecting the QRS peaks.
3. **Physical Implementation**: Once the simulations are validated, you can proceed to build the
physical circuit. Make sure to test it with actual ECG data to verify its performance in real-world
conditions.
4. **Data Counting and Display**: Consider how you'll count the detected pulses over a minute
to calculate the BPM, and think about how to display this information effectively.
This structured approach will help you create a reliable and efficient ECG signal processing unit.
If you have any specific questions about any part of the circuit design or implementation, feel
free to ask!
It sounds like you’re working through a detailed experiment
involving an operational amplifier (op-amp) circuit for threshold
detection and half-wave rectification, possibly for an ECG
application. Here’s a breakdown of the key points:
1. **Circuit Setup**:
- An LED connected in series with a resistor is used to visualize the output of the comparator
circuit.
- The circuit includes a voltage source, a sine wave input, and an op-amp configured for
threshold detection.
2. **Threshold Determination**:
- You established a threshold voltage (around 666 mV) and observed the op-amp output
based on the input signal relative to this threshold.
- The op-amp output is high (near +Vcc) when the input exceeds the threshold.
3. **Half-Wave Rectification**:
- A diode is used to allow only the positive half of the input signal to pass, effectively blocking
the negative portions.
, - This step is critical for processing the ECG signal, as it removes unwanted negative
voltages.
4. **Peak Detection**:
- A capacitor and resistors are used to detect and hold the peak value of the rectified signal.
- The circuit quickly charges to the peak value but discharges slowly, allowing for accurate
peak detection.
5. **Threshold Adjustment**:
- Resistors of high values (1 MΩ and 2 MΩ) minimize loading effects on the circuit.
- The threshold can be adjusted, and the effects of component tolerances are noted as
causing slight discrepancies between expected and actual values.
6. **Practical Testing**:
- The circuit's response to varying input frequencies and amplitudes was tested,
demonstrating its ability to adapt to different signals.
- An LED visually indicates when the input exceeds the threshold, especially useful at lower
frequencies (like 20-30 Hz).
7. **Integration with ECG**:
- Electrodes are positioned on the subject to capture the ECG signal, which is then amplified
and filtered to enhance clarity.
- The entire setup aims to count beats per minute (BPM) based on detected pulses.
This approach combines theoretical concepts with hands-on experimentation, crucial for
understanding how to process ECG signals effectively. If you have any specific areas you'd like
to explore further or need clarification on, feel free to ask!
ECG Signal Processing to calculate BPM
It sounds like you're summarizing a comprehensive demonstration of ECG signal acquisition
and processing! Here are some key points based on your description:
1. **Electrode Placement**: Three electrodes are used—one on the right arm, one on the left
arm, and one on the right leg for referencing.
2. **Instrumentation Amplifier**: An INA 128 is chosen due to its high Common Mode Rejection
Ratio (CMRR) and high input impedance, making it suitable for differential signal processing of
the ECG.
3. **Signal Characteristics**: Initial signals captured may exhibit noise from baseline wandering,
motion artifacts, and power line interference.
4. **Filtering Stages**:
, - **High-Pass Filter**: Used to eliminate baseline wandering (due to respiration) and motion
artifacts.
- **Low-Pass Filter**: Removes high-frequency noise, including power line interference.
- **Notch Filter**: Specifically designed to eliminate 50 Hz power line noise.
5. **Signal Visualization**: Using a Digital Signal Oscilloscope (DSO) allows for real-time
observation of the ECG signal after each processing stage. Adjustments in the time scale help
visualize peaks more clearly.
6. **Heart Rate Calculation**: The heart rate (BPM) can be calculated by counting the number
of peaks in a defined time period and extrapolating to a one-minute scale.
7. **Digital Processing**: The ECG signal can also be processed digitally, where algorithms can
identify peaks and calculate heart rate using time intervals between them.
8. **Final Output**: The system achieves a clear, processed ECG signal, allowing for reliable
heart rate monitoring and further analysis.
This structured approach ensures clarity in how ECG signals are acquired, processed, and
interpreted, demonstrating both analog and digital methodologies. Would you like to delve
deeper into any specific part?
MEMS based Force Sensor measurement
It sounds like you're summarizing a comprehensive lesson on using electronic systems for
measuring force and its applications in medical diagnostics, particularly related to cancer. Here
are the key points from your explanation:
1. **Signal Conditioning Units**:
- Used for various applications, including ECG and EEG.
- EEG signals are in microvolts, requiring careful signal conditioning.
2. **Force Measurement**:
ECG Signal Processing to calculate BPM (contd...)
It sounds like you're deep into designing a signal conditioning and processing unit for ECG
signals, focusing on detecting QRS peaks to calculate beats per minute (BPM). Let's break
down the key steps and components you discussed.
### Key Steps in ECG Signal Processing
1. **Signal Filtering**: You've already implemented low-pass, high-pass, and notch filtering to
clean up the ECG signal. This step is crucial to remove noise and ensure the accuracy of
subsequent measurements.
2. **Half-Wave Rectification**: By using a half-wave rectifier (often implemented with diodes and
operational amplifiers), you've focused on retaining only the positive peaks of the ECG signal,
effectively eliminating negative values. This simplifies the detection of QRS peaks, as you’re
primarily interested in the positive deflections.
3. **Capacitor for Peak Detection**: You’ve introduced a capacitor to charge to the maximum
voltage of the signal. This allows the circuit to track the peak values of the ECG waveform,
making it easier to identify significant peaks for BPM calculations.
4. **Threshold Setting**: To accurately count QRS peaks, you've established a threshold based
on a voltage divider circuit. This threshold ensures that only significant peaks (like QRS
complexes) are counted, filtering out smaller fluctuations that could lead to inaccuracies in BPM
calculations.
5. **Comparator Circuit**: The next step is to implement a comparator to generate output pulses
only when the ECG signal exceeds the established threshold. This will provide a clean signal
that can be easily counted.
### Circuit Design Considerations
- **Op-Amps and Diodes**: Using op-amps in conjunction with diodes helps in achieving better
impedance matching and signal amplification while performing rectification.
- **Resistor Values**: You've wisely chosen higher resistor values (mega-ohms) to minimize
loading effects on the input signal, ensuring the integrity of the ECG data is preserved.
- **Simulation Tools**: Using simulation software like Multisim is a great way to visualize and
test your circuit design before building a physical prototype.
,### Next Steps
1. **Build the Comparator Circuit**: Implement the comparator circuit to detect when the input
signal exceeds the threshold. This circuit will generate a pulse that can be counted to determine
the BPM.
2. **Simulation Testing**: Run simulations with various ECG waveforms to ensure your
threshold and comparator settings are robust and accurate in detecting the QRS peaks.
3. **Physical Implementation**: Once the simulations are validated, you can proceed to build the
physical circuit. Make sure to test it with actual ECG data to verify its performance in real-world
conditions.
4. **Data Counting and Display**: Consider how you'll count the detected pulses over a minute
to calculate the BPM, and think about how to display this information effectively.
This structured approach will help you create a reliable and efficient ECG signal processing unit.
If you have any specific questions about any part of the circuit design or implementation, feel
free to ask!
It sounds like you’re working through a detailed experiment
involving an operational amplifier (op-amp) circuit for threshold
detection and half-wave rectification, possibly for an ECG
application. Here’s a breakdown of the key points:
1. **Circuit Setup**:
- An LED connected in series with a resistor is used to visualize the output of the comparator
circuit.
- The circuit includes a voltage source, a sine wave input, and an op-amp configured for
threshold detection.
2. **Threshold Determination**:
- You established a threshold voltage (around 666 mV) and observed the op-amp output
based on the input signal relative to this threshold.
- The op-amp output is high (near +Vcc) when the input exceeds the threshold.
3. **Half-Wave Rectification**:
- A diode is used to allow only the positive half of the input signal to pass, effectively blocking
the negative portions.
, - This step is critical for processing the ECG signal, as it removes unwanted negative
voltages.
4. **Peak Detection**:
- A capacitor and resistors are used to detect and hold the peak value of the rectified signal.
- The circuit quickly charges to the peak value but discharges slowly, allowing for accurate
peak detection.
5. **Threshold Adjustment**:
- Resistors of high values (1 MΩ and 2 MΩ) minimize loading effects on the circuit.
- The threshold can be adjusted, and the effects of component tolerances are noted as
causing slight discrepancies between expected and actual values.
6. **Practical Testing**:
- The circuit's response to varying input frequencies and amplitudes was tested,
demonstrating its ability to adapt to different signals.
- An LED visually indicates when the input exceeds the threshold, especially useful at lower
frequencies (like 20-30 Hz).
7. **Integration with ECG**:
- Electrodes are positioned on the subject to capture the ECG signal, which is then amplified
and filtered to enhance clarity.
- The entire setup aims to count beats per minute (BPM) based on detected pulses.
This approach combines theoretical concepts with hands-on experimentation, crucial for
understanding how to process ECG signals effectively. If you have any specific areas you'd like
to explore further or need clarification on, feel free to ask!
ECG Signal Processing to calculate BPM
It sounds like you're summarizing a comprehensive demonstration of ECG signal acquisition
and processing! Here are some key points based on your description:
1. **Electrode Placement**: Three electrodes are used—one on the right arm, one on the left
arm, and one on the right leg for referencing.
2. **Instrumentation Amplifier**: An INA 128 is chosen due to its high Common Mode Rejection
Ratio (CMRR) and high input impedance, making it suitable for differential signal processing of
the ECG.
3. **Signal Characteristics**: Initial signals captured may exhibit noise from baseline wandering,
motion artifacts, and power line interference.
4. **Filtering Stages**:
, - **High-Pass Filter**: Used to eliminate baseline wandering (due to respiration) and motion
artifacts.
- **Low-Pass Filter**: Removes high-frequency noise, including power line interference.
- **Notch Filter**: Specifically designed to eliminate 50 Hz power line noise.
5. **Signal Visualization**: Using a Digital Signal Oscilloscope (DSO) allows for real-time
observation of the ECG signal after each processing stage. Adjustments in the time scale help
visualize peaks more clearly.
6. **Heart Rate Calculation**: The heart rate (BPM) can be calculated by counting the number
of peaks in a defined time period and extrapolating to a one-minute scale.
7. **Digital Processing**: The ECG signal can also be processed digitally, where algorithms can
identify peaks and calculate heart rate using time intervals between them.
8. **Final Output**: The system achieves a clear, processed ECG signal, allowing for reliable
heart rate monitoring and further analysis.
This structured approach ensures clarity in how ECG signals are acquired, processed, and
interpreted, demonstrating both analog and digital methodologies. Would you like to delve
deeper into any specific part?
MEMS based Force Sensor measurement
It sounds like you're summarizing a comprehensive lesson on using electronic systems for
measuring force and its applications in medical diagnostics, particularly related to cancer. Here
are the key points from your explanation:
1. **Signal Conditioning Units**:
- Used for various applications, including ECG and EEG.
- EEG signals are in microvolts, requiring careful signal conditioning.
2. **Force Measurement**:
