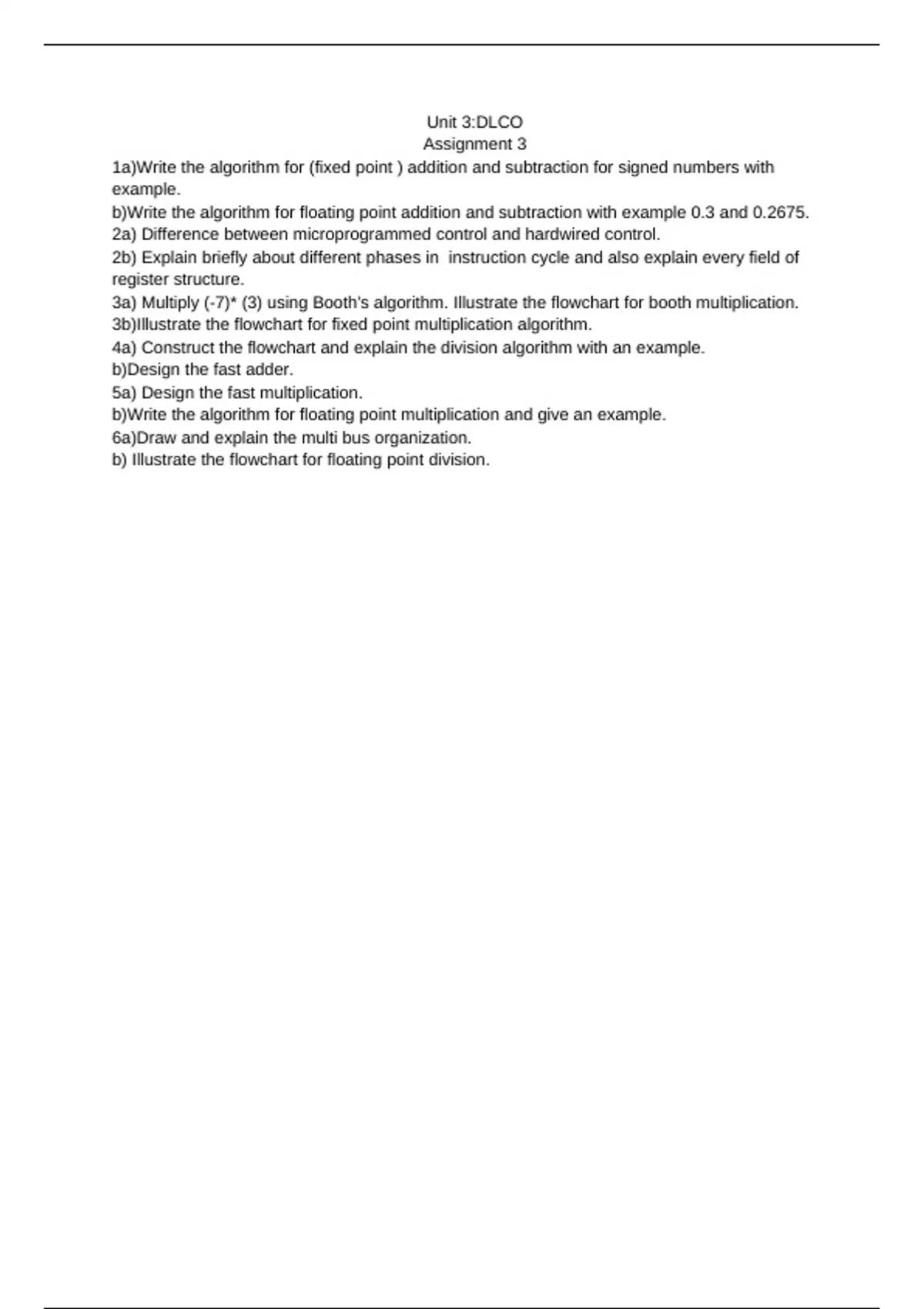

Unit 3:DLCO
Assignment 3
1a)Write the algorithm for (fixed point ) addition and subtraction for signed numbers with
example.
b)Write the algorithm for floating point addition and subtraction with example 0.3 and 0.2675.
2a) Difference between microprogrammed control and hardwired control.
2b) Explain briefly about different phases in instruction cycle and also explain every field of
register structure.
3a) Multiply (-7)* (3) using Booth's algorithm. Illustrate the flowchart for booth multiplication.
3b)Illustrate the flowchart for fixed point multiplication algorithm.
4a) Construct the flowchart and explain the division algorithm with an example.
b)Design the fast adder.
5a) Design the fast multiplication.
b)Write the algorithm for floating point multiplication and give an example.
6a)Draw and explain the multi bus organization.
b) Illustrate the flowchart for floating point division.
