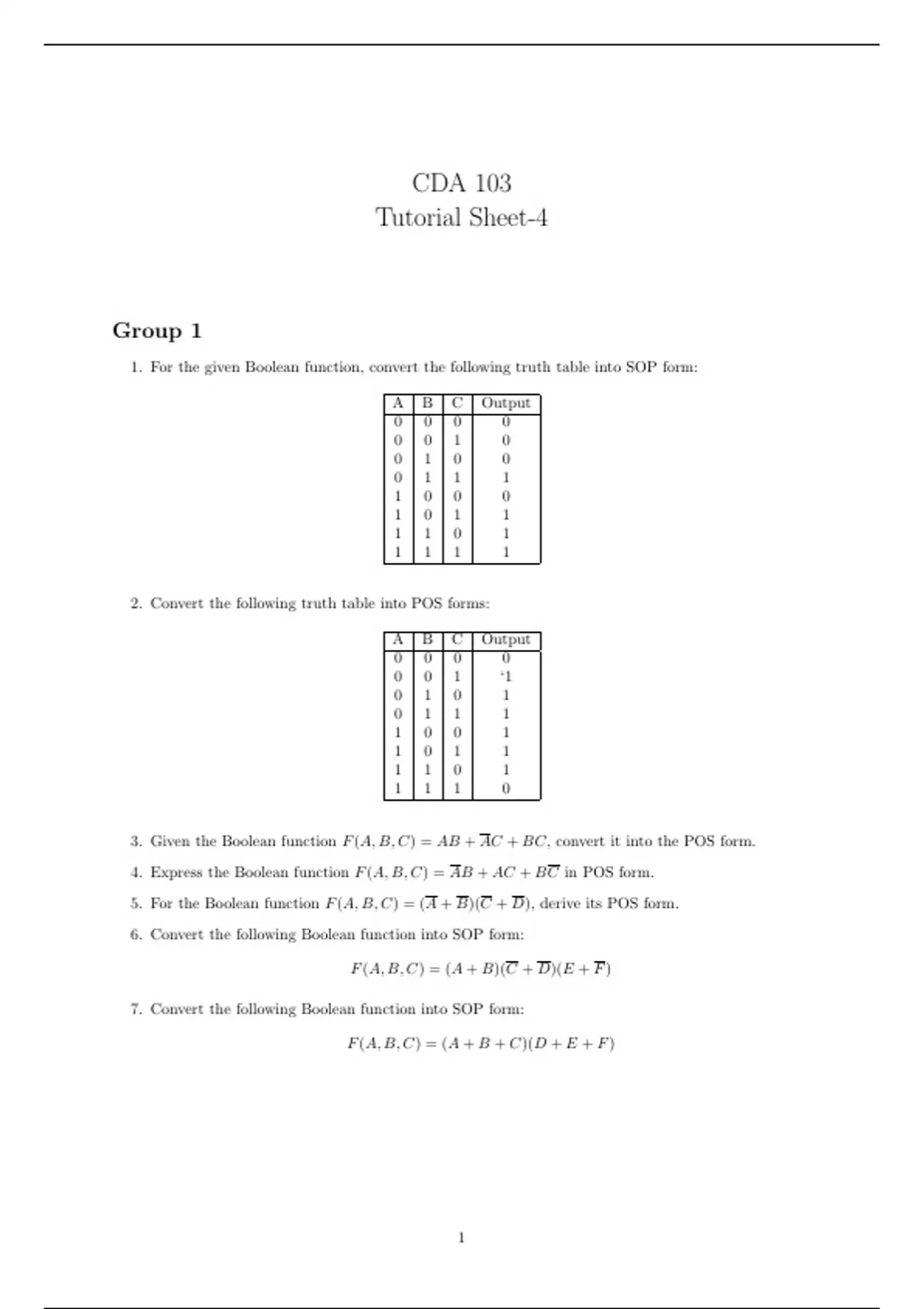

CDA 103
Tutorial Sheet-4



Group 1
1. For the given Boolean function, convert the following truth table into SOP form:

A B C Output
0 0 0 0
0 0 1 0
0 1 0 0
0 1 1 1
1 0 0 0
1 0 1 1
1 1 0 1
1 1 1 1


2. Convert the following truth table into POS forms:

A B C Output
0 0 0 0
0 0 1 ‘1
0 1 0 1
0 1 1 1
1 0 0 1
1 0 1 1
1 1 0 1
1 1 1 0


3. Given the Boolean function F (A, B, C) = AB + AC + BC, convert it into the POS form.
4. Express the Boolean function F (A, B, C) = AB + AC + BC in POS form.

5. For the Boolean function F (A, B, C) = (A + B)(C + D), derive its POS form.
6. Convert the following Boolean function into SOP form:

F (A, B, C) = (A + B)(C + D)(E + F )

7. Convert the following Boolean function into SOP form:

F (A, B, C) = (A + B + C)(D + E + F )
