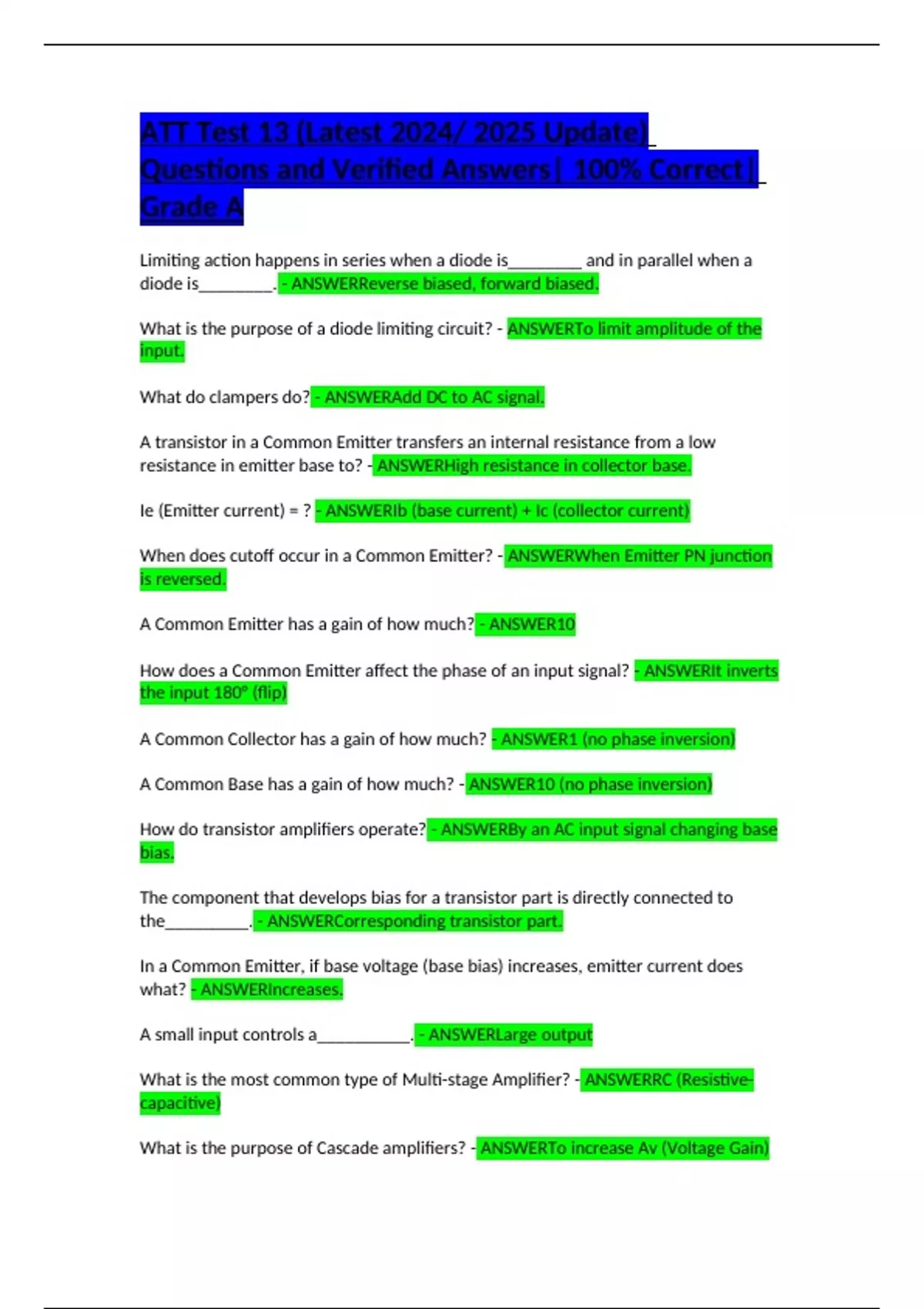

ATT Test 13 (Latest 2024/ 2025 Update)
Questions and Verified Answers| 100% Correct|
Grade A
Limiting action happens in series when a diode is________ and in parallel when a
diode is________. - ANSWERReverse biased, forward biased.
What is the purpose of a diode limiting circuit? - ANSWERTo limit amplitude of the
input.
What do clampers do? - ANSWERAdd DC to AC signal.
A transistor in a Common Emitter transfers an internal resistance from a low
resistance in emitter base to? - ANSWERHigh resistance in collector base.
Ie (Emitter current) = ? - ANSWERIb (base current) + Ic (collector current)
When does cutoff occur in a Common Emitter? - ANSWERWhen Emitter PN junction
is reversed.
A Common Emitter has a gain of how much? - ANSWER10
How does a Common Emitter affect the phase of an input signal? - ANSWERIt inverts
the input 180° (flip)
A Common Collector has a gain of how much? - ANSWER1 (no phase inversion)
A Common Base has a gain of how much? - ANSWER10 (no phase inversion)
How do transistor amplifiers operate? - ANSWERBy an AC input signal changing base
bias.
The component that develops bias for a transistor part is directly connected to
the_________. - ANSWERCorresponding transistor part.
In a Common Emitter, if base voltage (base bias) increases, emitter current does
what? - ANSWERIncreases.
A small input controls a__________. - ANSWERLarge output
What is the most common type of Multi-stage Amplifier? - ANSWERRC (Resistive-
capacitive)
What is the purpose of Cascade amplifiers? - ANSWERTo increase Av (Voltage Gain)
Questions and Verified Answers| 100% Correct|
Grade A
Limiting action happens in series when a diode is________ and in parallel when a
diode is________. - ANSWERReverse biased, forward biased.
What is the purpose of a diode limiting circuit? - ANSWERTo limit amplitude of the
input.
What do clampers do? - ANSWERAdd DC to AC signal.
A transistor in a Common Emitter transfers an internal resistance from a low
resistance in emitter base to? - ANSWERHigh resistance in collector base.
Ie (Emitter current) = ? - ANSWERIb (base current) + Ic (collector current)
When does cutoff occur in a Common Emitter? - ANSWERWhen Emitter PN junction
is reversed.
A Common Emitter has a gain of how much? - ANSWER10
How does a Common Emitter affect the phase of an input signal? - ANSWERIt inverts
the input 180° (flip)
A Common Collector has a gain of how much? - ANSWER1 (no phase inversion)
A Common Base has a gain of how much? - ANSWER10 (no phase inversion)
How do transistor amplifiers operate? - ANSWERBy an AC input signal changing base
bias.
The component that develops bias for a transistor part is directly connected to
the_________. - ANSWERCorresponding transistor part.
In a Common Emitter, if base voltage (base bias) increases, emitter current does
what? - ANSWERIncreases.
A small input controls a__________. - ANSWERLarge output
What is the most common type of Multi-stage Amplifier? - ANSWERRC (Resistive-
capacitive)
What is the purpose of Cascade amplifiers? - ANSWERTo increase Av (Voltage Gain)
