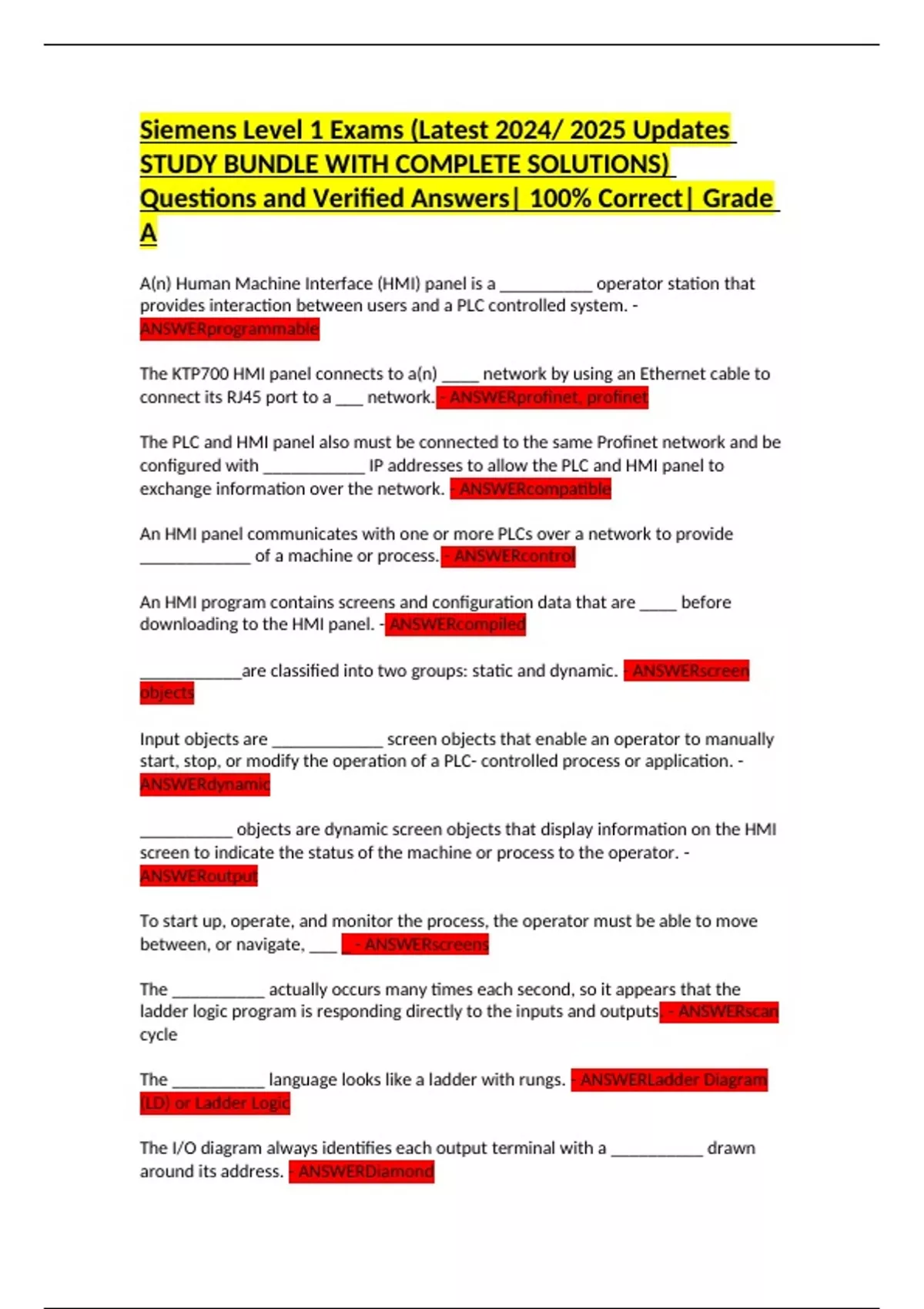

Siemens Level 1 Exams (Latest 2024/ 2025 Updates
STUDY BUNDLE WITH COMPLETE SOLUTIONS)
Questions and Verified Answers| 100% Correct| Grade
A
A(n) Human Machine Interface (HMI) panel is a __________ operator station that
provides interaction between users and a PLC controlled system. -
ANSWERprogrammable
The KTP700 HMI panel connects to a(n) ____ network by using an Ethernet cable to
connect its RJ45 port to a ___ network. - ANSWERprofinet, profinet
The PLC and HMI panel also must be connected to the same Profinet network and be
configured with ___________ IP addresses to allow the PLC and HMI panel to
exchange information over the network. - ANSWERcompatible
An HMI panel communicates with one or more PLCs over a network to provide
____________ of a machine or process. - ANSWERcontrol
An HMI program contains screens and configuration data that are ____ before
downloading to the HMI panel. - ANSWERcompiled
___________are classified into two groups: static and dynamic. - ANSWERscreen
objects
Input objects are ____________ screen objects that enable an operator to manually
start, stop, or modify the operation of a PLC- controlled process or application. -
ANSWERdynamic
__________ objects are dynamic screen objects that display information on the HMI
screen to indicate the status of the machine or process to the operator. -
ANSWERoutput
To start up, operate, and monitor the process, the operator must be able to move
between, or navigate, ___ _ - ANSWERscreens
The __________ actually occurs many times each second, so it appears that the
ladder logic program is responding directly to the inputs and outputs. - ANSWERscan
cycle
The __________ language looks like a ladder with rungs. - ANSWERLadder Diagram
(LD) or Ladder Logic
The I/O diagram always identifies each output terminal with a __________ drawn
around its address. - ANSWERDiamond
, The basic operation of PLC ladder logic is very similar to hard-wired logic. The three
main similarities are: logic continuity, six logic elements, and __________. -
ANSWERParallel Network Operation
The physical addresses of the input/output terminals correspond to a(n) __________
location in the PLC. - ANSWERmemory
The five numbering systems commonly used by PLCs are: __________, decimal,
binary, octal, and binary coded decimal. - ANSWERhexadecimal
The __________ memory stores user programs as they are downloaded to the
processor. - ANSWERload
__________ are often used to examine input and output status for troubleshooting
field devices, program logic, or the PLC. - ANSWERWatch tables
The output instruction of a PLC ladder logic program is called a(n) __________
instruction. - ANSWERassignment
The two basic types of input instructions used by the S7-1200 are the __________
instruction, and the Normally Closed Contact instructions. - ANSWERnormally open
contact
An industrial network is a high-speed communications connection used to _______
data between production line equipment (i.e. PLCs, robots, drives) and other devices
(i.e. PCs in other departments) within a manufacturing facility. - ANSWERexchange
By replacing mechanical components with a PLC, the ___________ of a process
becomes faster, cheaper, and more efficient. - ANSWERcontrol
____________ inputs are a type of input recognizes only two conditions: on or off. -
ANSWERDiscrete
__________ is the preferred enterprise level network because of its high speed and
standardized hardware and software. - ANSWEREthernet
Ethernet TCP/IP uses several ______________ to convert data from its native
format, such as a text message, into a format that can be sent and tracked from the
source node to the destination node on the network. - ANSWERprotocols
Profinet is a network protocol based on __________ that is used for communication
between distributed I/O devices. - ANSWEREthernet TCP/IP
A Siemens S7-1200 PLC is connected to a Profinet network by a(n) _________ cable
between its Profinet port and a Profinet network or device. - ANSWEREthernet
