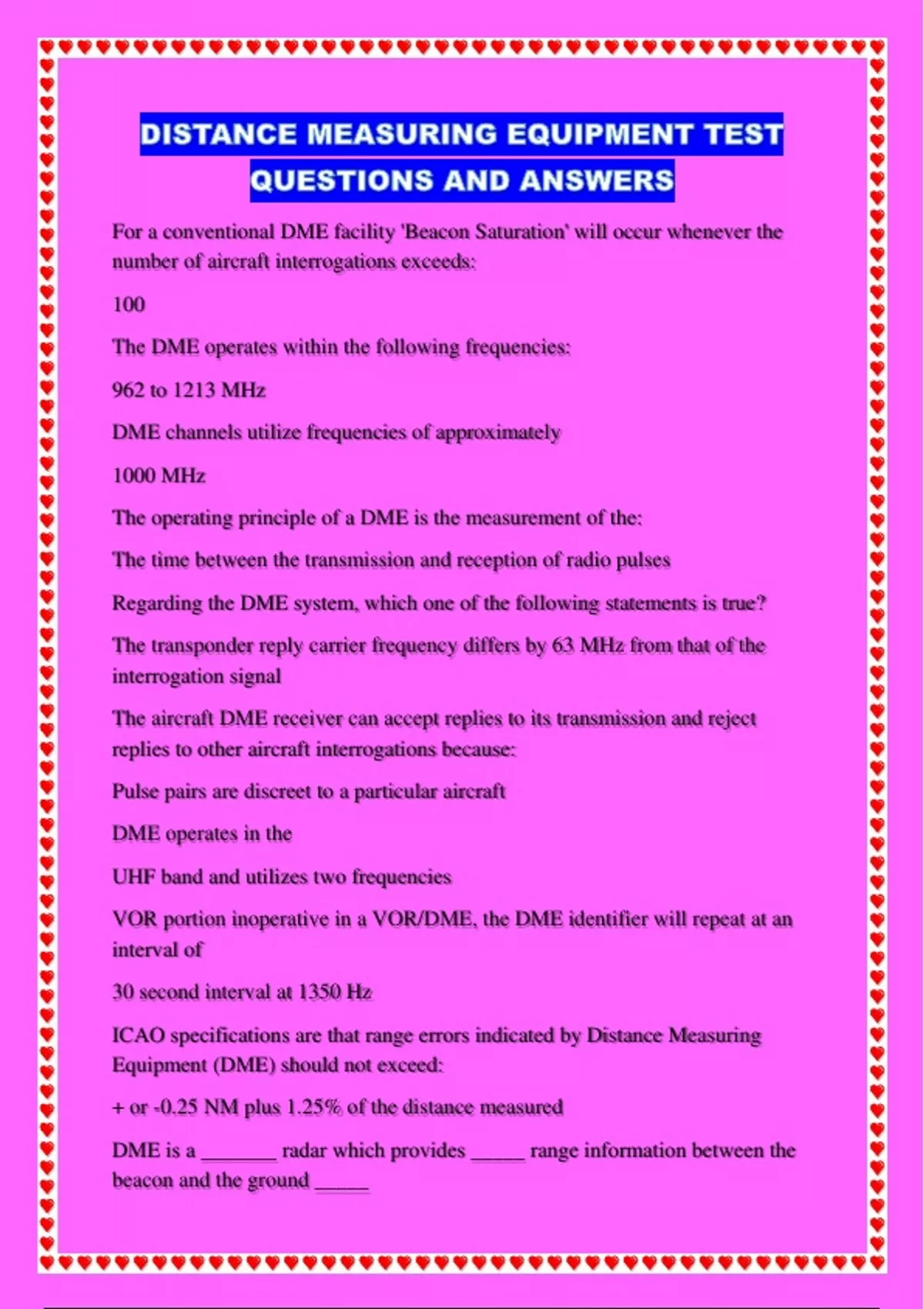

For a conventional DME facility 'Beacon Saturation' will occur whenever the
number of aircraft interrogations exceeds:
100
The DME operates within the following frequencies:
962 to 1213 MHz
DME channels utilize frequencies of approximately
1000 MHz
The operating principle of a DME is the measurement of the:
The time between the transmission and reception of radio pulses
Regarding the DME system, which one of the following statements is true?
The transponder reply carrier frequency differs by 63 MHz from that of the
interrogation signal
The aircraft DME receiver can accept replies to its transmission and reject
replies to other aircraft interrogations because:
Pulse pairs are discreet to a particular aircraft
DME operates in the
UHF band and utilizes two frequencies
VOR portion inoperative in a VOR/DME, the DME identifier will repeat at an
interval of
30 second interval at 1350 Hz
ICAO specifications are that range errors indicated by Distance Measuring
Equipment (DME) should not exceed:
+ or -0.25 NM plus 1.25% of the distance measured
DME is a _______ radar which provides _____ range information between the
beacon and the ground _____
number of aircraft interrogations exceeds:
100
The DME operates within the following frequencies:
962 to 1213 MHz
DME channels utilize frequencies of approximately
1000 MHz
The operating principle of a DME is the measurement of the:
The time between the transmission and reception of radio pulses
Regarding the DME system, which one of the following statements is true?
The transponder reply carrier frequency differs by 63 MHz from that of the
interrogation signal
The aircraft DME receiver can accept replies to its transmission and reject
replies to other aircraft interrogations because:
Pulse pairs are discreet to a particular aircraft
DME operates in the
UHF band and utilizes two frequencies
VOR portion inoperative in a VOR/DME, the DME identifier will repeat at an
interval of
30 second interval at 1350 Hz
ICAO specifications are that range errors indicated by Distance Measuring
Equipment (DME) should not exceed:
+ or -0.25 NM plus 1.25% of the distance measured
DME is a _______ radar which provides _____ range information between the
beacon and the ground _____
