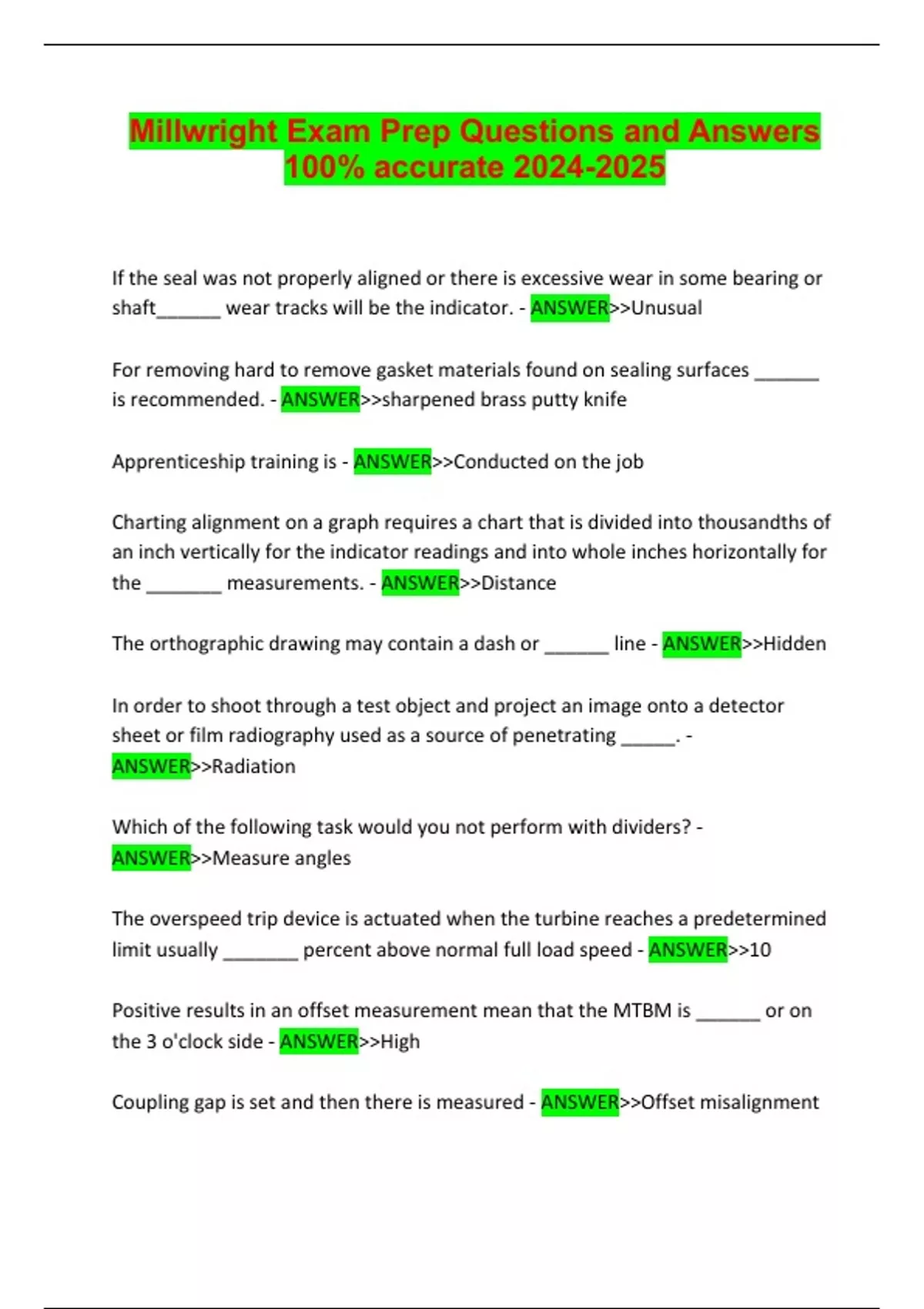

Millwright Exam Prep Questions and Answers
100% accurate 2024-2025
If the seal was not properly aligned or there is excessive wear in some bearing or
shaft______ wear tracks will be the indicator. - ANSWER>>Unusual
For removing hard to remove gasket materials found on sealing surfaces ______
is recommended. - ANSWER>>sharpened brass putty knife
Apprenticeship training is - ANSWER>>Conducted on the job
Charting alignment on a graph requires a chart that is divided into thousandths of
an inch vertically for the indicator readings and into whole inches horizontally for
the _______ measurements. - ANSWER>>Distance
The orthographic drawing may contain a dash or ______ line - ANSWER>>Hidden
In order to shoot through a test object and project an image onto a detector
sheet or film radiography used as a source of penetrating _____. -
ANSWER>>Radiation
Which of the following task would you not perform with dividers? -
ANSWER>>Measure angles
The overspeed trip device is actuated when the turbine reaches a predetermined
limit usually _______ percent above normal full load speed - ANSWER>>10
Positive results in an offset measurement mean that the MTBM is ______ or on
the 3 o'clock side - ANSWER>>High
Coupling gap is set and then there is measured - ANSWER>>Offset misalignment
,In a hydraulic system movement depends on - ANSWER>>Pressure
Fractional dimensions are used on objects ____ - ANSWER>>Such as furniture or
utility items
If the cause of the problem is not immediately understood the process of _____ is
often the procedure of choice - ANSWER>>Elimination
When applying sealant to the sealing glands flanges keep the sealant away from
the inside edges of the flange by at least _______ inch - ANSWER>>3/16
A stroboscope is triggered by _______ - ANSWER>>Transducer
The page of threaded fasteners is measured with a ______ gauge. -
ANSWER>>Thread
Liquid penetrant highlights flaws in reveals ______. - ANSWER>>Surface cracks
The tool used to cut external threads on a boat or rod is a____ - ANSWER>>Die
A bill of materials may include information on ______ and other reference
information - ANSWER>>Special processes
Engaged gears always have the same ______ - ANSWER>>Surface speed
Elevation of equipment is usually found in the - ANSWER>>General arrangements
Inspect the police rollers in idlers for unevenness or _____ - ANSWER>>Vibrations
When cutting then steel with oxy fuel cutting equipment all the torch say that the
temp is pointing in the direction the torch is traveling at a ______ angle -
ANSWER>>15-20 degrees
, Labyrinth seals work best with materials such as - ANSWER>>Grease
Lubrication is the application of any substances that reduces _____ -
ANSWER>>Friction
When the dial indicator is mounted on the complex reverse driven coupling jig the
indicator is registered on the ____ - ANSWER>>Driver coupling Jig
Pipe should be stored ____ - ANSWER>>racks
The most common type of ball bearing is a _____ bearing - ANSWER>>Single deep
groove radial
Couplings that are installed after the driver and driven shafts have been aligned
and the equipment has been fastened into position are _____ couplings -
ANSWER>>Split
When two or more numbers are multiplied to make another number they are
called ______ of the third number - ANSWER>>Factors
The continuous reading dial indicator starts at zero and _____ -
ANSWER>>Increases clockwise
Vibration with an a specific narrowband range can be detected by _____. -
ANSWER>>Electronic filters
Of the following types of O-rings you would select _______ for an application
where temperatures may be -300°F or 500°F - ANSWER>>Teflon
Special cleaning tips for cutting of bald head in notes is called a _______ tip -
ANSWER>>Rivet cutting
