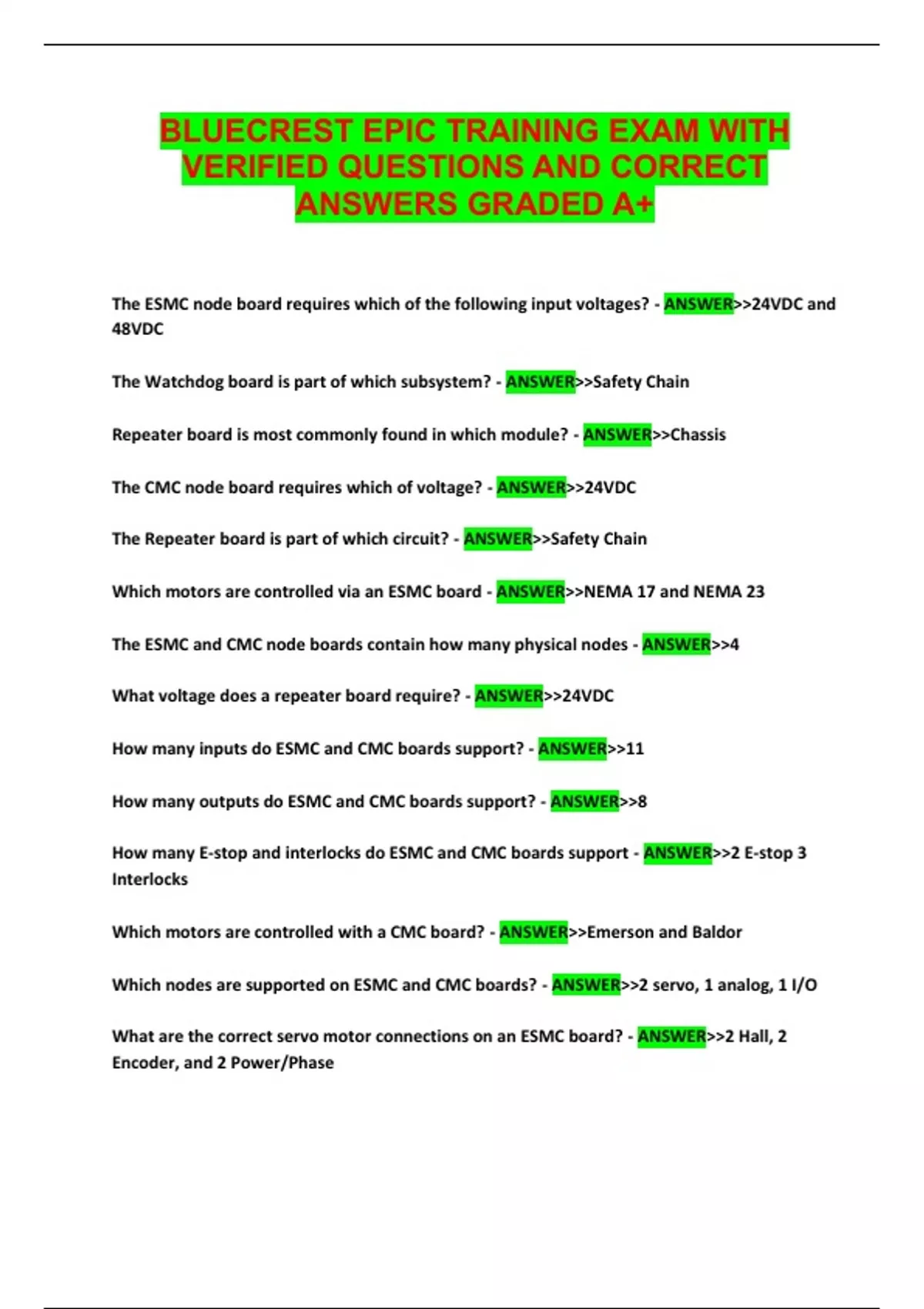

BLUECREST EPIC TRAINING EXAM WITH
VERIFIED QUESTIONS AND CORRECT
ANSWERS GRADED A+
The ESMC node board requires which of the following input voltages? - ANSWER>>24VDC and
48VDC
The Watchdog board is part of which subsystem? - ANSWER>>Safety Chain
Repeater board is most commonly found in which module? - ANSWER>>Chassis
The CMC node board requires which of voltage? - ANSWER>>24VDC
The Repeater board is part of which circuit? - ANSWER>>Safety Chain
Which motors are controlled via an ESMC board - ANSWER>>NEMA 17 and NEMA 23
The ESMC and CMC node boards contain how many physical nodes - ANSWER>>4
What voltage does a repeater board require? - ANSWER>>24VDC
How many inputs do ESMC and CMC boards support? - ANSWER>>11
How many outputs do ESMC and CMC boards support? - ANSWER>>8
How many E-stop and interlocks do ESMC and CMC boards support - ANSWER>>2 E-stop 3
Interlocks
Which motors are controlled with a CMC board? - ANSWER>>Emerson and Baldor
Which nodes are supported on ESMC and CMC boards? - ANSWER>>2 servo, 1 analog, 1 I/O
What are the correct servo motor connections on an ESMC board? - ANSWER>>2 Hall, 2
Encoder, and 2 Power/Phase
, What are the correct servo motor connections on a CMC board? - ANSWER>>J2 Amp control
and J4 Amp control
How many Grounding planes are there on ESMC and CMC boards? - ANSWER>>4
Which of the following diagnostic tools provides real-time histogram of events? -
ANSWER>>Health Monitor
What is the best diagnostic tool for troubleshooting intermittent photocell flicker? -
ANSWER>>Logic analyzer
In order to acquire additional information regarding the 4-digit code that is displayed in a DC
error message, which tool would you use? - ANSWER>>Faults dialog
Which icon/tool would you use in DC to select the Servo Diagnostic tool? - ANSWER>>Node
List
True or False: The Rocket Port connects to the Chassis RTP - ANSWER>>False
What is the purpose for the Health Check button located at the bottom of the Node Card I/O
dialog box? - ANSWER>>To test photocells
True or False: The inserter uses time-base for tracking and mail pieces - ANSWER>>False
The Health Monitor and the Shutdown script uses which type of communications? -
ANSWER>>Ethernet
Can you use a White LED to replace a Grey LED? - ANSWER>>No
What can you use to determine if a photocell is operating properly? - ANSWER>>Flashlight
What can you use to determine if the LED is operating properly? - ANSWER>>Phone camera
What do you use to troubleshoot a photocell on a Bingo Board? - ANSWER>>Voltmeter and a
piece of paper
Ture or False: You can use the Serial Diagnostics to troubleshoot scanning - ANSWER>>True
VERIFIED QUESTIONS AND CORRECT
ANSWERS GRADED A+
The ESMC node board requires which of the following input voltages? - ANSWER>>24VDC and
48VDC
The Watchdog board is part of which subsystem? - ANSWER>>Safety Chain
Repeater board is most commonly found in which module? - ANSWER>>Chassis
The CMC node board requires which of voltage? - ANSWER>>24VDC
The Repeater board is part of which circuit? - ANSWER>>Safety Chain
Which motors are controlled via an ESMC board - ANSWER>>NEMA 17 and NEMA 23
The ESMC and CMC node boards contain how many physical nodes - ANSWER>>4
What voltage does a repeater board require? - ANSWER>>24VDC
How many inputs do ESMC and CMC boards support? - ANSWER>>11
How many outputs do ESMC and CMC boards support? - ANSWER>>8
How many E-stop and interlocks do ESMC and CMC boards support - ANSWER>>2 E-stop 3
Interlocks
Which motors are controlled with a CMC board? - ANSWER>>Emerson and Baldor
Which nodes are supported on ESMC and CMC boards? - ANSWER>>2 servo, 1 analog, 1 I/O
What are the correct servo motor connections on an ESMC board? - ANSWER>>2 Hall, 2
Encoder, and 2 Power/Phase
, What are the correct servo motor connections on a CMC board? - ANSWER>>J2 Amp control
and J4 Amp control
How many Grounding planes are there on ESMC and CMC boards? - ANSWER>>4
Which of the following diagnostic tools provides real-time histogram of events? -
ANSWER>>Health Monitor
What is the best diagnostic tool for troubleshooting intermittent photocell flicker? -
ANSWER>>Logic analyzer
In order to acquire additional information regarding the 4-digit code that is displayed in a DC
error message, which tool would you use? - ANSWER>>Faults dialog
Which icon/tool would you use in DC to select the Servo Diagnostic tool? - ANSWER>>Node
List
True or False: The Rocket Port connects to the Chassis RTP - ANSWER>>False
What is the purpose for the Health Check button located at the bottom of the Node Card I/O
dialog box? - ANSWER>>To test photocells
True or False: The inserter uses time-base for tracking and mail pieces - ANSWER>>False
The Health Monitor and the Shutdown script uses which type of communications? -
ANSWER>>Ethernet
Can you use a White LED to replace a Grey LED? - ANSWER>>No
What can you use to determine if a photocell is operating properly? - ANSWER>>Flashlight
What can you use to determine if the LED is operating properly? - ANSWER>>Phone camera
What do you use to troubleshoot a photocell on a Bingo Board? - ANSWER>>Voltmeter and a
piece of paper
Ture or False: You can use the Serial Diagnostics to troubleshoot scanning - ANSWER>>True
