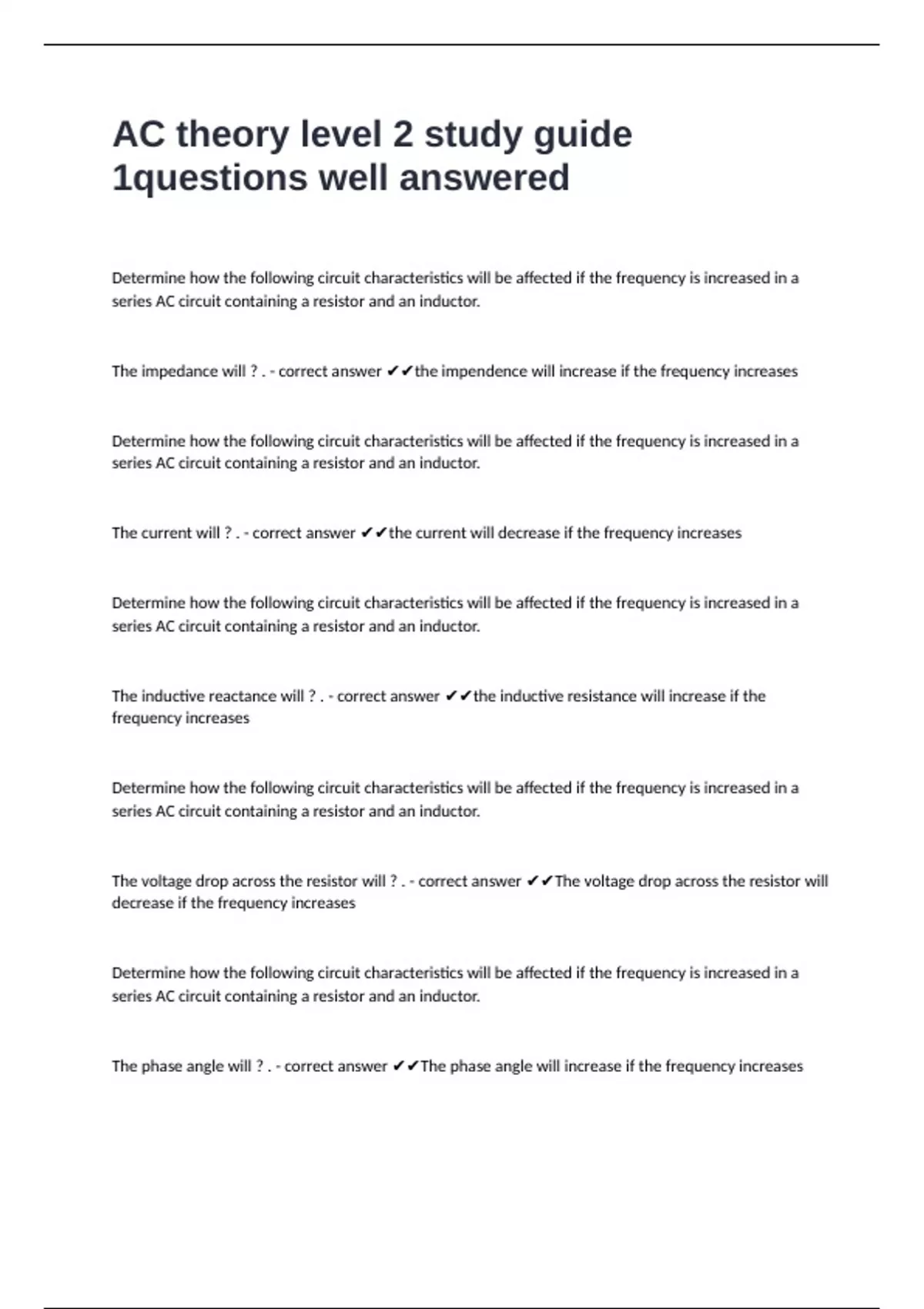

AC theory level 2 study guide
1questions well answered
Determine how the following circuit characteristics will be affected if the frequency is increased in a
series AC circuit containing a resistor and an inductor.
The impedance will ? . - correct answer ✔✔the impendence will increase if the frequency increases
Determine how the following circuit characteristics will be affected if the frequency is increased in a
series AC circuit containing a resistor and an inductor.
The current will ? . - correct answer ✔✔the current will decrease if the frequency increases
Determine how the following circuit characteristics will be affected if the frequency is increased in a
series AC circuit containing a resistor and an inductor.
The inductive reactance will ? . - correct answer ✔✔the inductive resistance will increase if the
frequency increases
Determine how the following circuit characteristics will be affected if the frequency is increased in a
series AC circuit containing a resistor and an inductor.
The voltage drop across the resistor will ? . - correct answer ✔✔The voltage drop across the resistor will
decrease if the frequency increases
Determine how the following circuit characteristics will be affected if the frequency is increased in a
series AC circuit containing a resistor and an inductor.
The phase angle will ? . - correct answer ✔✔The phase angle will increase if the frequency increases
, Determine how the following circuit characteristics will be affected if the frequency is increased in a
series AC circuit containing a resistor and an inductor.
The voltage drop across the inductor will ? . - correct answer ✔✔The voltage drop across the inductor
will increase if the frequency increases
Determine how the following circuit characteristics will be affected if the frequency is increased in a
series AC circuit containing a resistor and an inductor.
The power factor will ? . - correct answer ✔✔The power factor will decrease if the frequency increases
Determine how the following circuit characteristics will be affected if the frequency is increased in a
series AC circuit containing a resistor and an inductor.
The resistance will ? . - correct answer ✔✔The resistance will remain the same if the frequency increases
Determine how the following circuit characteristics will be affected if the frequency is increased in a
series AC circuit containing a resistor and an inductor.
The applied voltage will ? . - correct answer ✔✔The applied voltage will remain the same if the
frequency increases
Determine how the following circuit characteristics will be affected if the frequency is increased in a
series AC circuit containing a resistor and an inductor.
The true power will ? . - correct answer ✔✔The true power will decrease if the frequency increases
For a series RC circuit, the ? must be the same through all parts of the circuit. - correct answer
✔✔current
A circuit has a resistor and a capacitor connected in series and operating at a certain frequency. If the
frequency is increased, the current ? . - correct answer ✔✔increases
