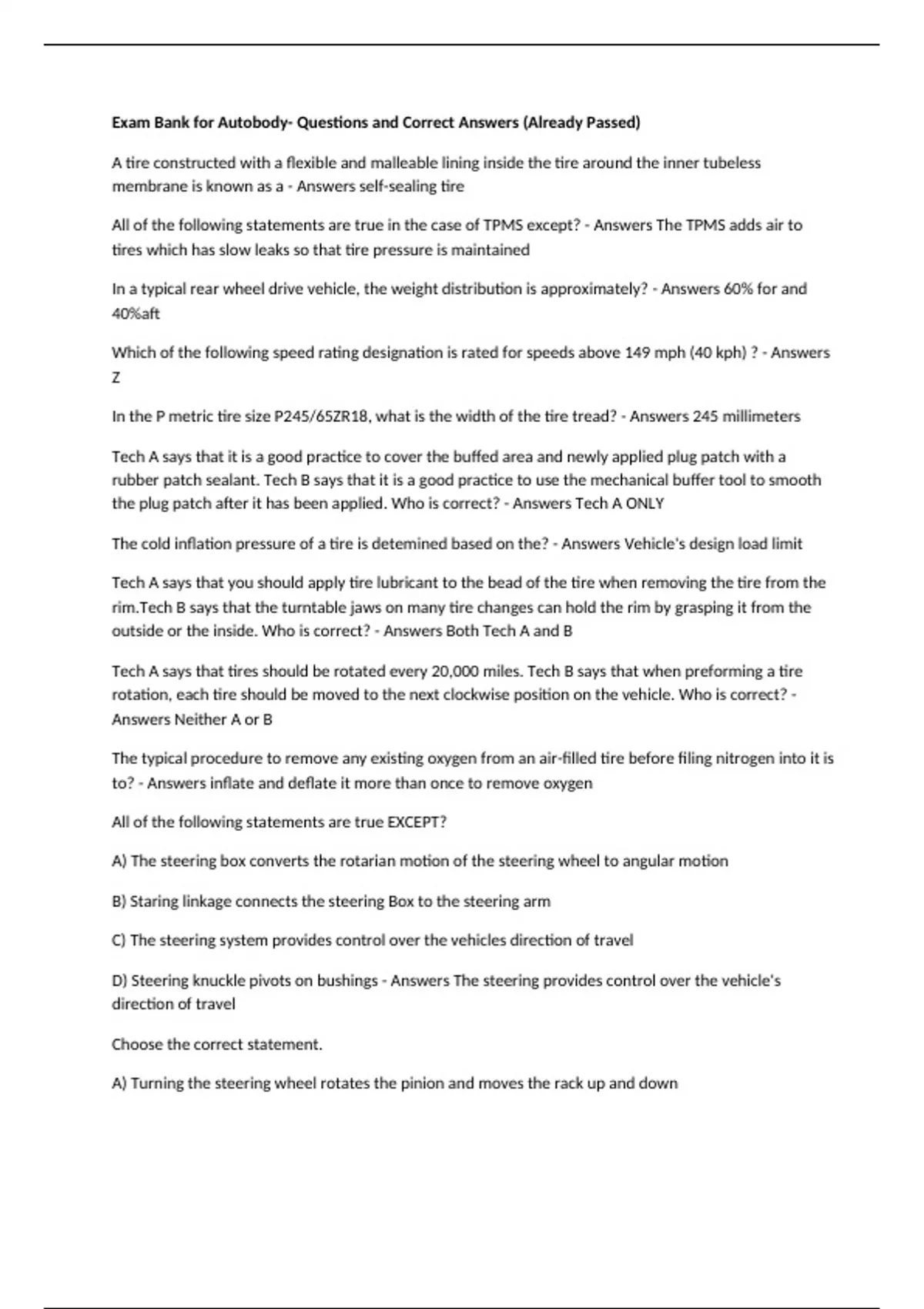

Exam Bank for Autobody- Questions and Correct Answers (Already Passed)

Exam Bank for Autobody- Questions and Correct Answers (Already Passed) A tire constructed with a flexible and malleable lining inside the tire around the inner tubeless membrane is known as a - Answers self-sealing tire All of the following statements are true in the case of TPMS except? - Answers The TPMS adds air to tires which has slow leaks so that tire pressure is maintained In a typical rear wheel drive vehicle, the weight distribution is approximately? - Answers 60% for and 40%aft Which of the following speed rating designation is rated for speeds above 149 mph (40 kph) ? - Answers Z In the P metric tire size P245/65ZR18, what is the width of the tire tread? - Answers 245 millimeters Tech A says that it is a good practice to cover the buffed area and newly applied plug patch with a rubber patch sealant. Tech B says that it is a good practice to use the mechanical buffer tool to smooth the plug patch after it has been applied. Who is correct? - Answers Tech A ONLY The cold inflation pressure of a tire is detemined based on the? - Answers Vehicle's design load limit Tech A says that you should apply tire lubricant to the bead of the tire when removing the tire from the rim.Tech B says that the turntable jaws on many tire changes can hold the rim by grasping it from the outside or the inside. Who is correct? - Answers Both Tech A and B Tech A says that tires should be rotated every 20,000 miles. Tech B says that when preforming a tire rotation, each tire should be moved to the next clockwise position on the vehicle. Who is correct? - Answers Neither A or B The typical procedure to remove any existing oxygen from an air-filled tire before filing nitrogen into it is to? - Answers inflate and deflate it more than once to remove oxygen All of the following statements are true EXCEPT? A) The steering box converts the rotarian motion of the steering wheel to angular motion B) Staring linkage connects the steering Box to the steering arm C) The steering system provides control over the vehicles direction of travel D) Steering knuckle pivots on bushings - Answers The steering provides control over the vehicle's direction of travel Choose the correct statement. A) Turning the steering wheel rotates the pinion and moves the rack up and down B) In most steering racks the teeth on both the pinion and the rack are helical gears C) A large pinion means the number of turns of the steering wheel is increased D) The steering ratio is the same on all vehicles - Answers A large pinion means the number of turns of the steering wheen is increased In an electronic power steering system, PCM stands for? - Answers Power train control module Tech A says that no matter what way the vehicle turns, the inside wheel must always turn less sharply than the outside wheel. Tech B says that Ackermann principle angles the steering arms toward the center of the rear axle. Who is correct? - Answers Tech B Only Tech A says that rack and pinion steering systems generally do not use power steering due to their lighter duty construction. Tech B says that rack and pinion steering systems use a worn gear arrangement to move the rack. Who is correct? - Answers Neither A or B Tech A says that some manufacturers specify automatic transmission fluid in their power steering system. Tech B says that in a power steering system, the force needed to steer the wheel is created by hydraulic pump or electric motor. Who is correct? - Answers Both A and B Tech A says that the clock spring(spiral. cable) assists the turning of the steering wheel on vehicle with EPS. Tech B says that the clock spring is used to transmit an electrical signal to the driver's side airbag. Who is correct? - Answers Tech B Only Tech A says that in most vehicles the steering column uses one or more flexible joints to connect to the steering gearbox. Tech B says that the pitman arm is bolted to the frame and relays the steering linkage movement to the opposite wheel from the steering gearbox. Who is correct? - Answers Tech A Only? The steering component that is bolted to the frame and relays the steering linkage movement to the opposite wheel from the steering gearbox is? - Answers Idler arm The ackermann principle is applied in steering geometry to? - Answers Navigatea corner without scrubbing The part of the parallelogram steering mechanism that provides the adjustment point for adjusting the toe setting is the? - Answers Adjustment sleeve All of the following can create play in the searing wheel except A) Worn steering gears B) worn tie rod ends C) bent steering arm D looseness in the idler arm - Answers bent steering arm All of the following statements with respect to power steering fluid are true except A) It transmits pressure throughout a vehicles power steering system B) It provides lubrication to the moving parts C) It does not get contaminated so only its level needs checking D) It must be able to perform in any weather conditions - Answers It does not get contaminated so only its level needs checking Tech A says that a pickle fork is used to hold a tie rod while it is being tightened. Tech B says that in outer tie rod end should have a noticeable side to side play if it is ok. Who is correct? - Answers Neither A or B Tech A says that in the steering system, play generally results from worn ball sockets and bushings. Tech B says that hard steering is typically caused by tire pressure that is too high. Who is correct - Answers Tech A only Tech a says that many power steering pump pulleys are typically held in place by a press fit. Tech B says that some power steering pump pulleys are made out of plastic. Who is correct? - Answers Both A and B Tech a says that to properly check a tie rod end, the technician should twist the tie rod end, and any rotational movement means the joint is bad. Tech B says that when checking a tie rod, any side to side movement in the joint means the rod is bad. Who is correct? - Answers Tech B only Take a says that when replacing a clock Spring, you should turn it all the way to either end and then install it in the steering column. Tech B says that clock Springs are used to return the steering wheel to its centered position. Who is correct? - Answers Neither A or B Tech A says that worn tie rod ends can cause a steering wandering comaint. Tech B says that a hard steering could be caused by a worn power steering pump. Who is correct? - Answers Both A and B Tech A says that worn rack and pinion mount bushings can cause excessive play in the steering system. Tech B says that a worn idler arm can cause excessive play in the steering system. Who is correct? - Answers Both A and B When confronted with a steering system problem, all of the following should be taken into consideration Except? - Answers The cooling system Which of the following systems should be disbled while working on or around the steering colum, any of the airbags, or other pyrotechnic devices? - Answers SRS Which tool is particularly useful in performing a continuity test on any open or shorts on an EPS system and help determine where the problem is located? - Answers DMM All of the following are true Except? A) The solid axle provides a simple means of mounting the hub and wheel units B) SLA uses upper and lower control arms to control the movement of the knuckle C) In strut suspension the shock absorber is contained outside the strut D) Solid axle systems are inexpensive and good for hauling heavy loads - Answers In strut suspension, the shock absorber is contained outside the strut All of these act as common indicators for the problem in the suspension system Except? A) A bouncy ride B) A reduction in steering control C) noises when going over a bump D) improper transmission shifting - Answers improper transmission shifting For the vehicle to operate properly and safely, suspension and steering components should be aligned with each other and also with the? - Answers vehicle centerline Tech A says that a dead axle is designed to carry the weight of the vehicle, with no drive capability. Tech B says that live axles transmit power to the wheels. Who is correct? - Answers Both A and B Tech a says that in a MacPherson strut suspension, the hydraulic strut supports the top of the steering knuckle, so it must be much stronger than an ordinary shock absorber. Tech B says that gas pressurised shock absorbers do not use hydraulic fluid; they use pressurised nitrogen gas only. Who is correct? - Answers Tech A only Tech A says that leaf springs are made from a single length of special wire, which is heated and would on a former in the shape of a coil. Tech B that a progressive rate spring offers a soft ride but can also carry a heaver load. Who is correct? - Answers Tech B only Tech A says that on short/ long arm (SLA) suspension systems, the upper control arm is the long one.Tech B says thaton SLA suspension systems. the control arms are connected to the frame by ball joints. Who is correct? - Answers Neither A or B Tech A says that one purpose of the suspension system is to keep the tires in contact with the road. Tech B says that the heavier the weight of the unsprung components, the smaller the
