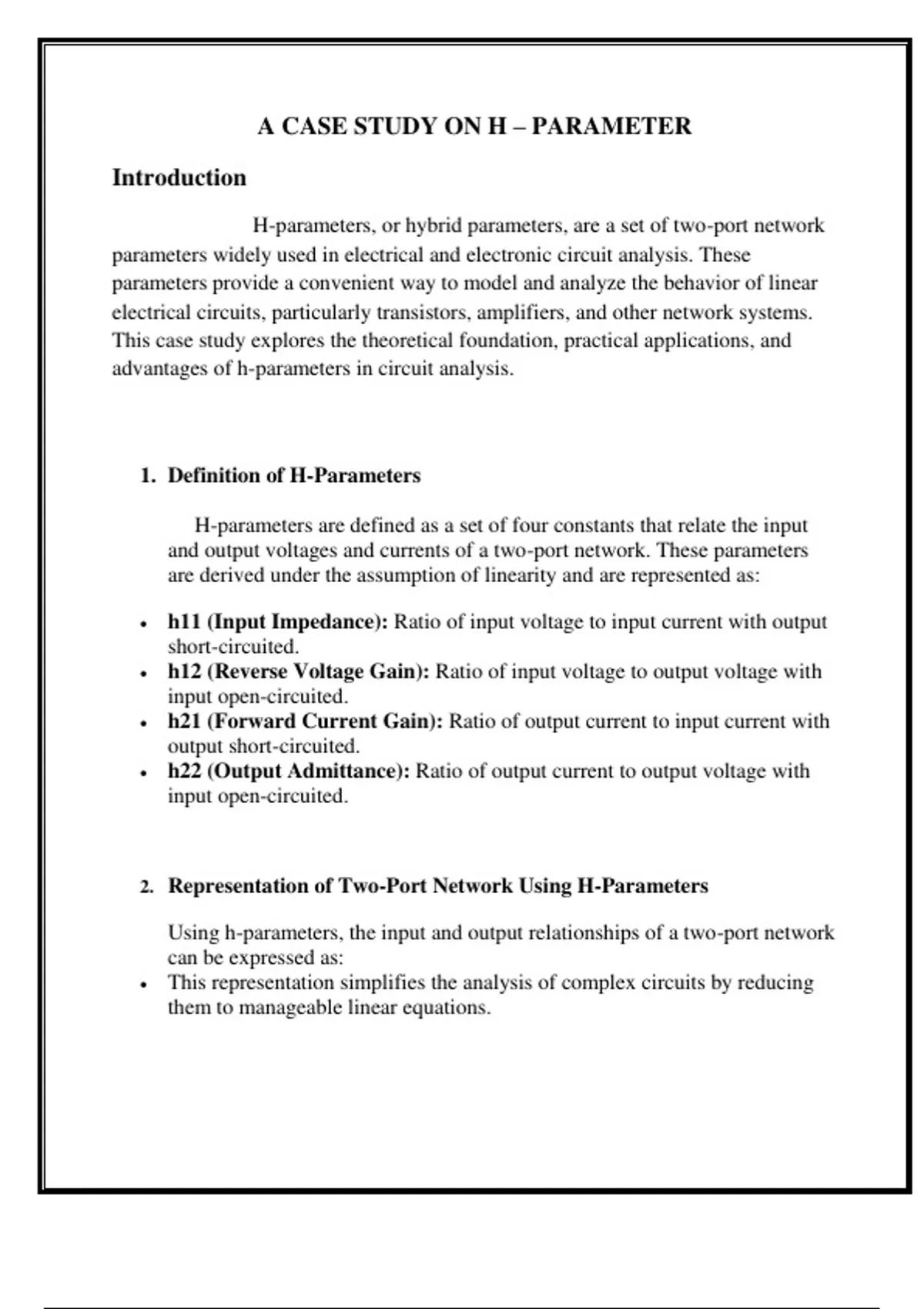

A CASE STUDY ON H – PARAMETER
Introduction
H-parameters, or hybrid parameters, are a set of two-port network
parameters widely used in electrical and electronic circuit analysis. These
parameters provide a convenient way to model and analyze the behavior of linear
electrical circuits, particularly transistors, amplifiers, and other network systems.
This case study explores the theoretical foundation, practical applications, and
advantages of h-parameters in circuit analysis.
1. Definition of H-Parameters
H-parameters are defined as a set of four constants that relate the input
and output voltages and currents of a two-port network. These parameters
are derived under the assumption of linearity and are represented as:
h11 (Input Impedance): Ratio of input voltage to input current with output
short-circuited.
h12 (Reverse Voltage Gain): Ratio of input voltage to output voltage with
input open-circuited.
h21 (Forward Current Gain): Ratio of output current to input current with
output short-circuited.
h22 (Output Admittance): Ratio of output current to output voltage with
input open-circuited.
2. Representation of Two-Port Network Using H-Parameters
Using h-parameters, the input and output relationships of a two-port network
can be expressed as:
This representation simplifies the analysis of complex circuits by reducing
them to manageable linear equations.
