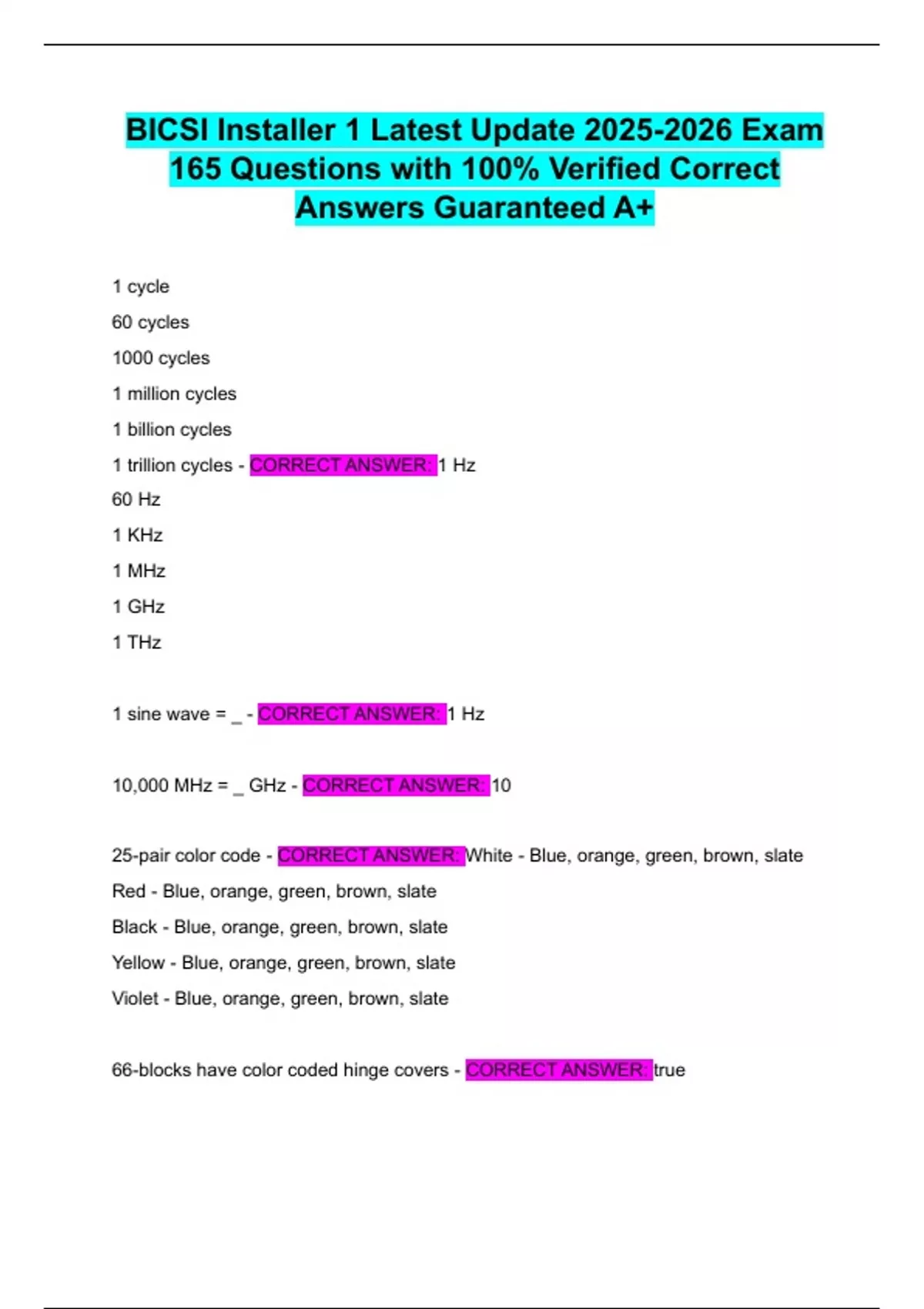

BICSI Installer 1 Latest Update Exam 165 Questions with 100% Verified Correct Answers Guaranteed A+

BICSI Installer 1 Latest Update 2025-2026 Exam
165 Questions with 100% Verified Correct
Answers Guaranteed A+

1 cycle
60 cycles
1000 cycles
1 million cycles
1 billion cycles
1 trillion cycles - CORRECT ANSWER: 1 Hz
60 Hz
1 KHz
1 MHz
1 GHz
1 THz


1 sine wave = _ - CORRECT ANSWER: 1 Hz


10,000 MHz = _ GHz - CORRECT ANSWER: 10


25-pair color code - CORRECT ANSWER: White - Blue, orange, green, brown, slate
Red - Blue, orange, green, brown, slate
Black - Blue, orange, green, brown, slate
Yellow - Blue, orange, green, brown, slate
Violet - Blue, orange, green, brown, slate


66-blocks have color coded hinge covers - CORRECT ANSWER: true

,8P8C -A pinout - CORRECT ANSWER: White/green
Green
White/Orange
Blue
White/blue
Orange
White/brown
Brown


8P8C -B pinout - CORRECT ANSWER: White/orange
Orange
White/green
Blue
White/blue
Green
White/brown
Brown


a _ conduit terminates in a horizontal orientation - CORRECT ANSWER: stub-out


a _ conduit terminates in a vertical orientation - CORRECT ANSWER: stub-up


A balanced twisted pair has... - CORRECT ANSWER: a nominal characteristic
impedance of 100 Ohms


A hand bender can be used for conduits up to - CORRECT ANSWER: 1 1/4


A unbalanced coaxial cable has... - CORRECT ANSWER: a nominal characteristic
impedance of 75 Ohms

, Alien Crosstalk (AXT) - CORRECT ANSWER: Unwanted signal coupling from one
permanent link to another


American Wire Gauge (AWG) - CORRECT ANSWER: A standard rating that indicates
the diameter of a wire, such as the conducting core of a coaxial cable or the twisted
pairs in a UTP cable.


An analog signal varies in what two aspects? - CORRECT ANSWER: amplitude and
frequency


an example of array connectors... - CORRECT ANSWER: MPO
Can terminate 6-72 optical fibers into a single ferrule


An installer should _ in public, and _ in private - CORRECT ANSWER: Praise. Correct.


AWG - CORRECT ANSWER: Smaller number - bigger wire
Higher number - smaller wire


Bandwidth - CORRECT ANSWER: The amount of data that can be transmitted over a
network in a given amount of time.


Blue cable means - CORRECT ANSWER: horizontal cabling


Brown cable means - CORRECT ANSWER: interbuilding backbone


Bus topology - CORRECT ANSWER: a linear configuration that places all of the network
devices on one cable (daisy-chain)


Cable must stay _ in. away from transformers - CORRECT ANSWER: 48
