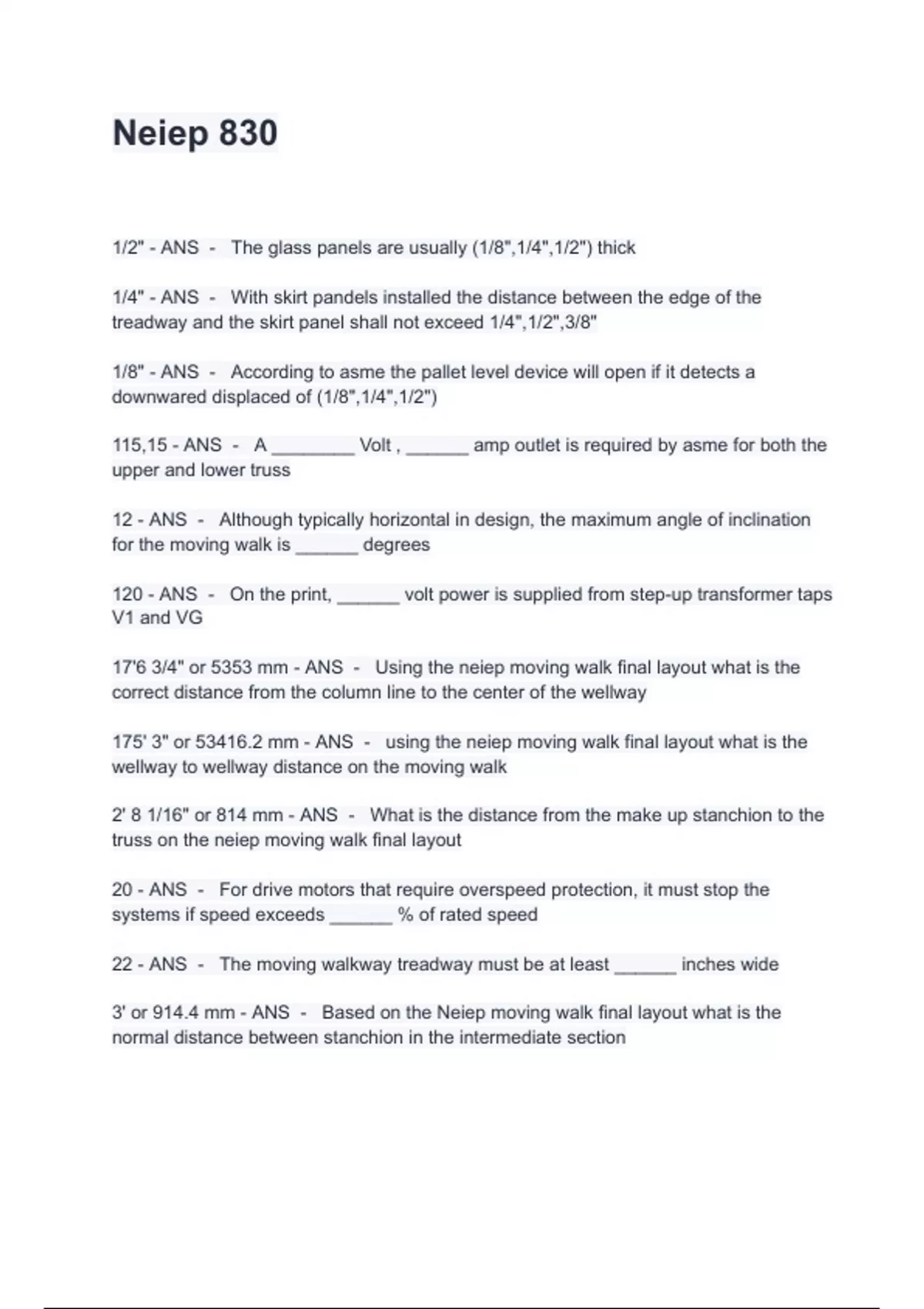

Neiep 830
1/2" - ANS - The glass panels are usually (1/8",1/4",1/2") thick
1/4" - ANS - With skirt pandels installed the distance between the edge of the
treadway and the skirt panel shall not exceed 1/4",1/2",3/8"
1/8" - ANS - According to asme the pallet level device will open if it detects a
downwared displaced of (1/8",1/4",1/2")
115,15 - ANS - A ________ Volt , ______ amp outlet is required by asme for both the
upper and lower truss
12 - ANS - Although typically horizontal in design, the maximum angle of inclination
for the moving walk is ______ degrees
120 - ANS - On the print, ______ volt power is supplied from step-up transformer taps
V1 and VG
17'6 3/4" or 5353 mm - ANS - Using the neiep moving walk final layout what is the
correct distance from the column line to the center of the wellway
175' 3" or 53416.2 mm - ANS - using the neiep moving walk final layout what is the
wellway to wellway distance on the moving walk
2' 8 1/16" or 814 mm - ANS - What is the distance from the make up stanchion to the
truss on the neiep moving walk final layout
20 - ANS - For drive motors that require overspeed protection, it must stop the
systems if speed exceeds ______ % of rated speed
22 - ANS - The moving walkway treadway must be at least ______ inches wide
3' or 914.4 mm - ANS - Based on the Neiep moving walk final layout what is the
normal distance between stanchion in the intermediate section
