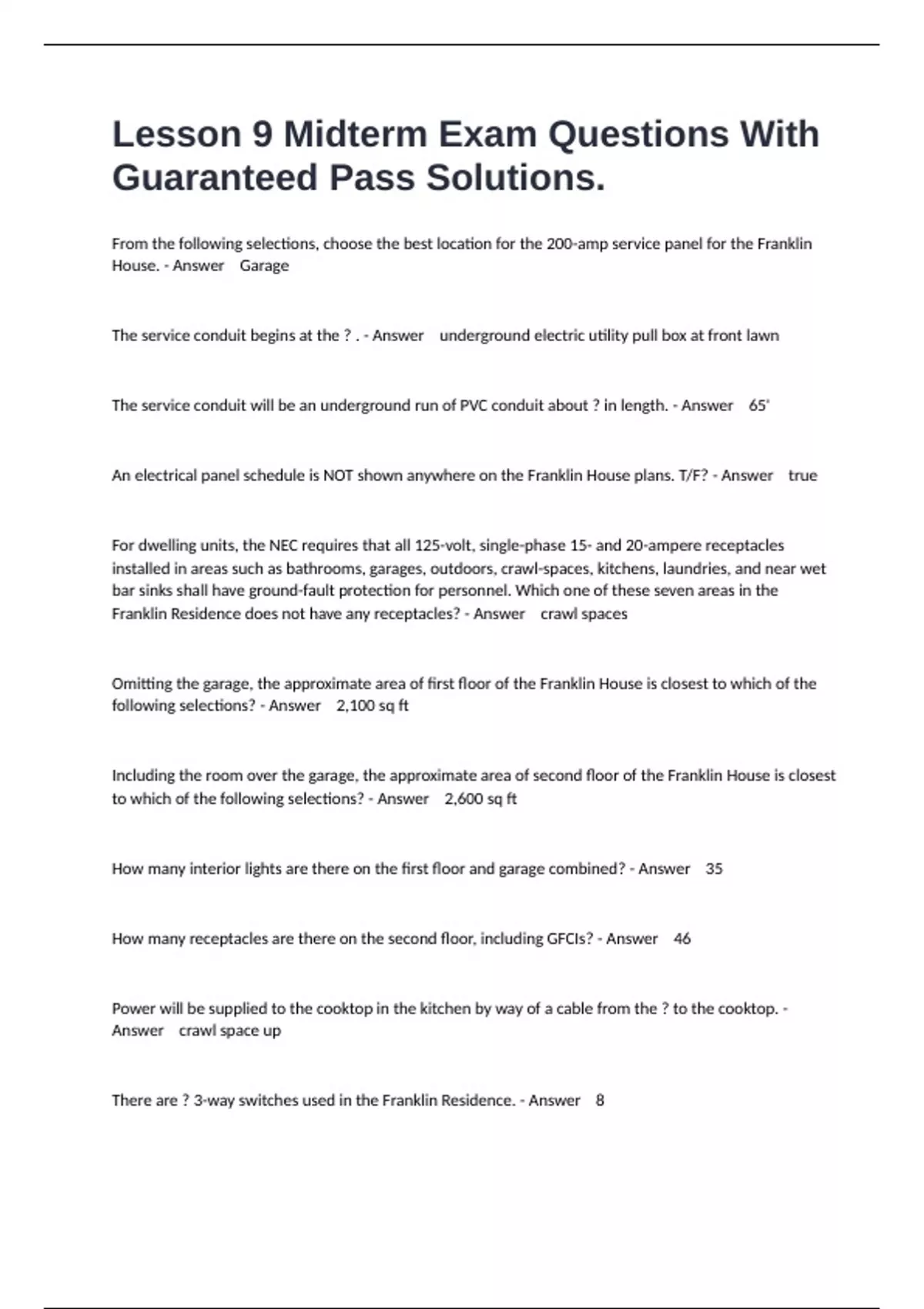

Lesson 9 Midterm Exam Questions With
Guaranteed Pass Solutions.
From the following selections, choose the best location for the 200-amp service panel for the Franklin
House. - Answer Garage
The service conduit begins at the ? . - Answer underground electric utility pull box at front lawn
The service conduit will be an underground run of PVC conduit about ? in length. - Answer 65'
An electrical panel schedule is NOT shown anywhere on the Franklin House plans. T/F? - Answer true
For dwelling units, the NEC requires that all 125-volt, single-phase 15- and 20-ampere receptacles
installed in areas such as bathrooms, garages, outdoors, crawl-spaces, kitchens, laundries, and near wet
bar sinks shall have ground-fault protection for personnel. Which one of these seven areas in the
Franklin Residence does not have any receptacles? - Answer crawl spaces
Omitting the garage, the approximate area of first floor of the Franklin House is closest to which of the
following selections? - Answer 2,100 sq ft
Including the room over the garage, the approximate area of second floor of the Franklin House is closest
to which of the following selections? - Answer 2,600 sq ft
How many interior lights are there on the first floor and garage combined? - Answer 35
How many receptacles are there on the second floor, including GFCIs? - Answer 46
Power will be supplied to the cooktop in the kitchen by way of a cable from the ? to the cooktop. -
Answer crawl space up
There are ? 3-way switches used in the Franklin Residence. - Answer 8
