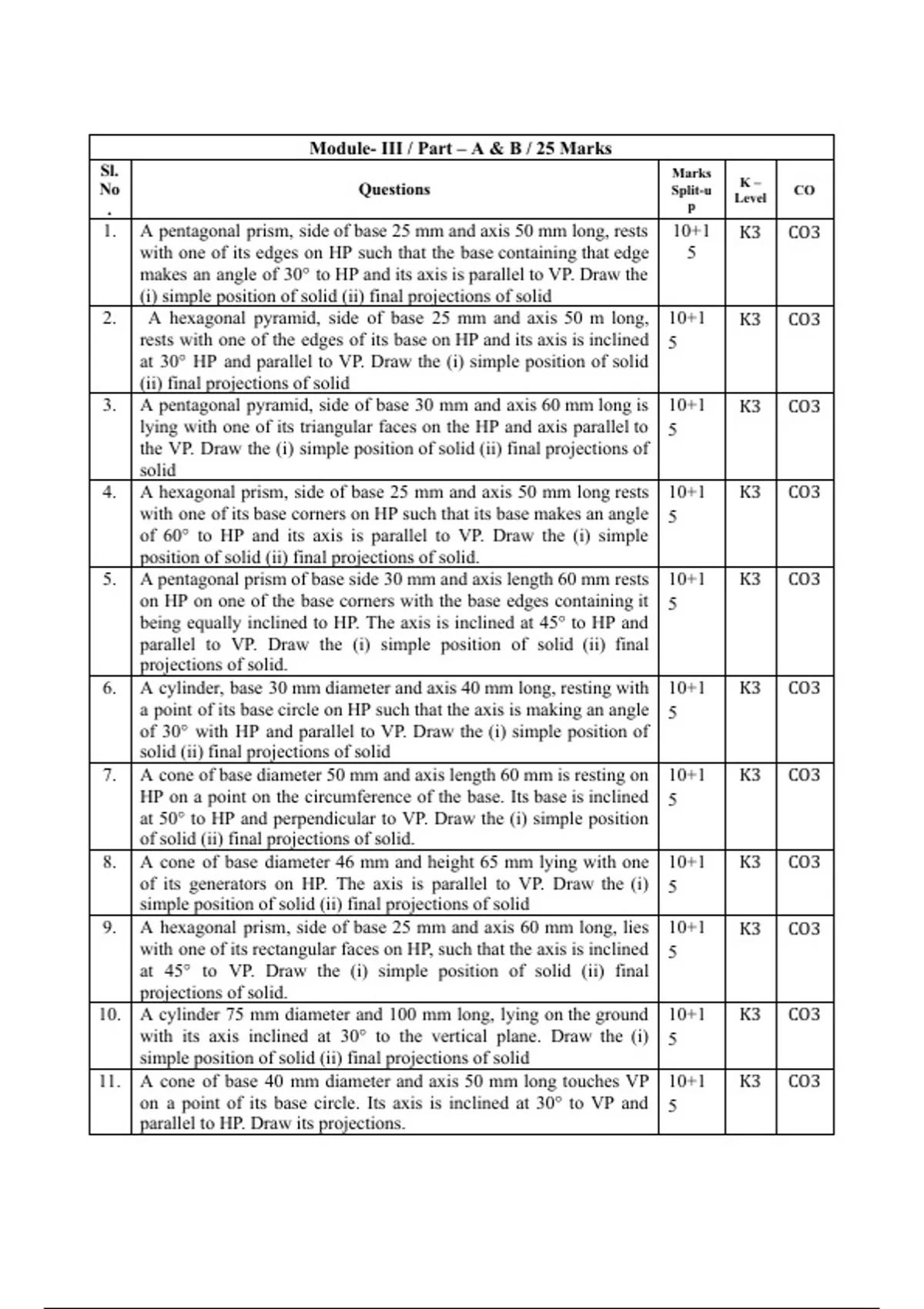

Module- III / Part – A & B / 25 Marks
Sl. Marks
K–
No Questions Split-u
Level
CO
. p
1. A pentagonal prism, side of base 25 mm and axis 50 mm long, rests 10+1 K3 CO3
with one of its edges on HP such that the base containing that edge 5
makes an angle of 30° to HP and its axis is parallel to VP. Draw the
(i) simple position of solid (ii) final projections of solid
2. A hexagonal pyramid, side of base 25 mm and axis 50 m long, 10+1 K3 CO3
rests with one of the edges of its base on HP and its axis is inclined 5
at 30° HP and parallel to VP. Draw the (i) simple position of solid
(ii) final projections of solid
3. A pentagonal pyramid, side of base 30 mm and axis 60 mm long is 10+1 K3 CO3
lying with one of its triangular faces on the HP and axis parallel to 5
the VP. Draw the (i) simple position of solid (ii) final projections of
solid
4. A hexagonal prism, side of base 25 mm and axis 50 mm long rests 10+1 K3 CO3
with one of its base corners on HP such that its base makes an angle 5
of 60° to HP and its axis is parallel to VP. Draw the (i) simple
position of solid (ii) final projections of solid.
5. A pentagonal prism of base side 30 mm and axis length 60 mm rests 10+1 K3 CO3
on HP on one of the base corners with the base edges containing it 5
being equally inclined to HP. The axis is inclined at 45° to HP and
parallel to VP. Draw the (i) simple position of solid (ii) final
projections of solid.
6. A cylinder, base 30 mm diameter and axis 40 mm long, resting with 10+1 K3 CO3
a point of its base circle on HP such that the axis is making an angle 5
of 30° with HP and parallel to VP. Draw the (i) simple position of
solid (ii) final projections of solid
7. A cone of base diameter 50 mm and axis length 60 mm is resting on 10+1 K3 CO3
HP on a point on the circumference of the base. Its base is inclined 5
at 50° to HP and perpendicular to VP. Draw the (i) simple position
of solid (ii) final projections of solid.
8. A cone of base diameter 46 mm and height 65 mm lying with one 10+1 K3 CO3
of its generators on HP. The axis is parallel to VP. Draw the (i) 5
simple position of solid (ii) final projections of solid
9. A hexagonal prism, side of base 25 mm and axis 60 mm long, lies 10+1 K3 CO3
with one of its rectangular faces on HP, such that the axis is inclined 5
at 45° to VP. Draw the (i) simple position of solid (ii) final
projections of solid.
10. A cylinder 75 mm diameter and 100 mm long, lying on the ground 10+1 K3 CO3
with its axis inclined at 30° to the vertical plane. Draw the (i) 5
simple position of solid (ii) final projections of solid
11. A cone of base 40 mm diameter and axis 50 mm long touches VP 10+1 K3 CO3
on a point of its base circle. Its axis is inclined at 30° to VP and 5
parallel to HP. Draw its projections.
