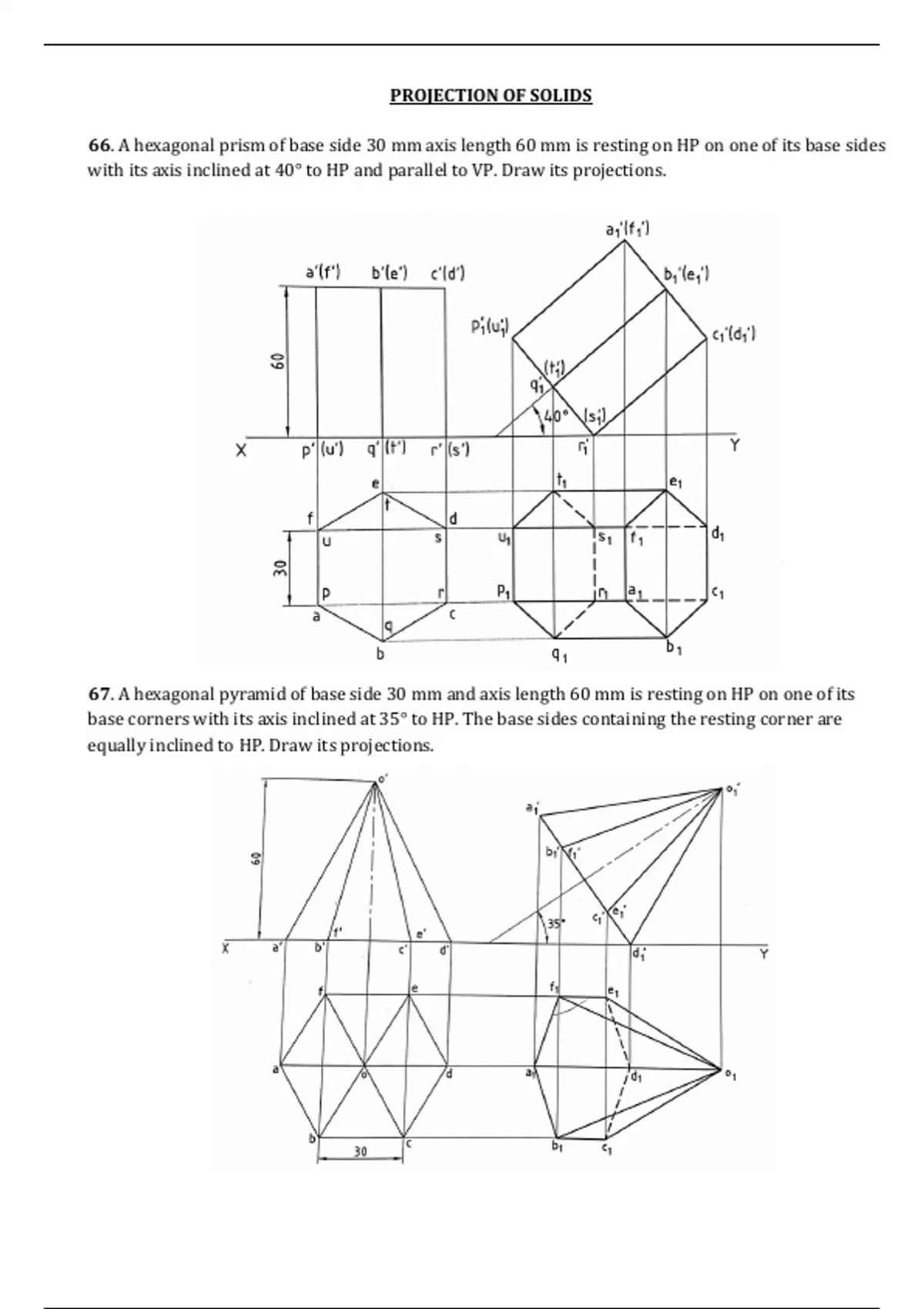

PROJECTION OF SOLIDS
66. A hexagonal prism of base side 30 mm axis length 60 mm is resting on HP on one of its base sides
with its axis inclined at 40° to HP and parallel to VP. Draw its projections.
67. A hexagonal pyramid of base side 30 mm and axis length 60 mm is resting on HP on one of its
base corners with its axis inclined at 35° to HP. The base sides containing the resting corner are
equally inclined to HP. Draw its projections.
, 68. A hexagonal pyramid of base side 30 mm and axis length 60 mm is resting on HP on one of its
base edges with the face containing the resting edge perpendicular to both HP and VP. Draw its
projections.
69. A pentagonal pyramid of base side 30 mm and axis length 60 mm is resting on HP on one of its
base corner with its axis parallel to VP. Draw its projections when the slant edge containing the
resting corner is vertical..
66. A hexagonal prism of base side 30 mm axis length 60 mm is resting on HP on one of its base sides
with its axis inclined at 40° to HP and parallel to VP. Draw its projections.
67. A hexagonal pyramid of base side 30 mm and axis length 60 mm is resting on HP on one of its
base corners with its axis inclined at 35° to HP. The base sides containing the resting corner are
equally inclined to HP. Draw its projections.
, 68. A hexagonal pyramid of base side 30 mm and axis length 60 mm is resting on HP on one of its
base edges with the face containing the resting edge perpendicular to both HP and VP. Draw its
projections.
69. A pentagonal pyramid of base side 30 mm and axis length 60 mm is resting on HP on one of its
base corner with its axis parallel to VP. Draw its projections when the slant edge containing the
resting corner is vertical..
