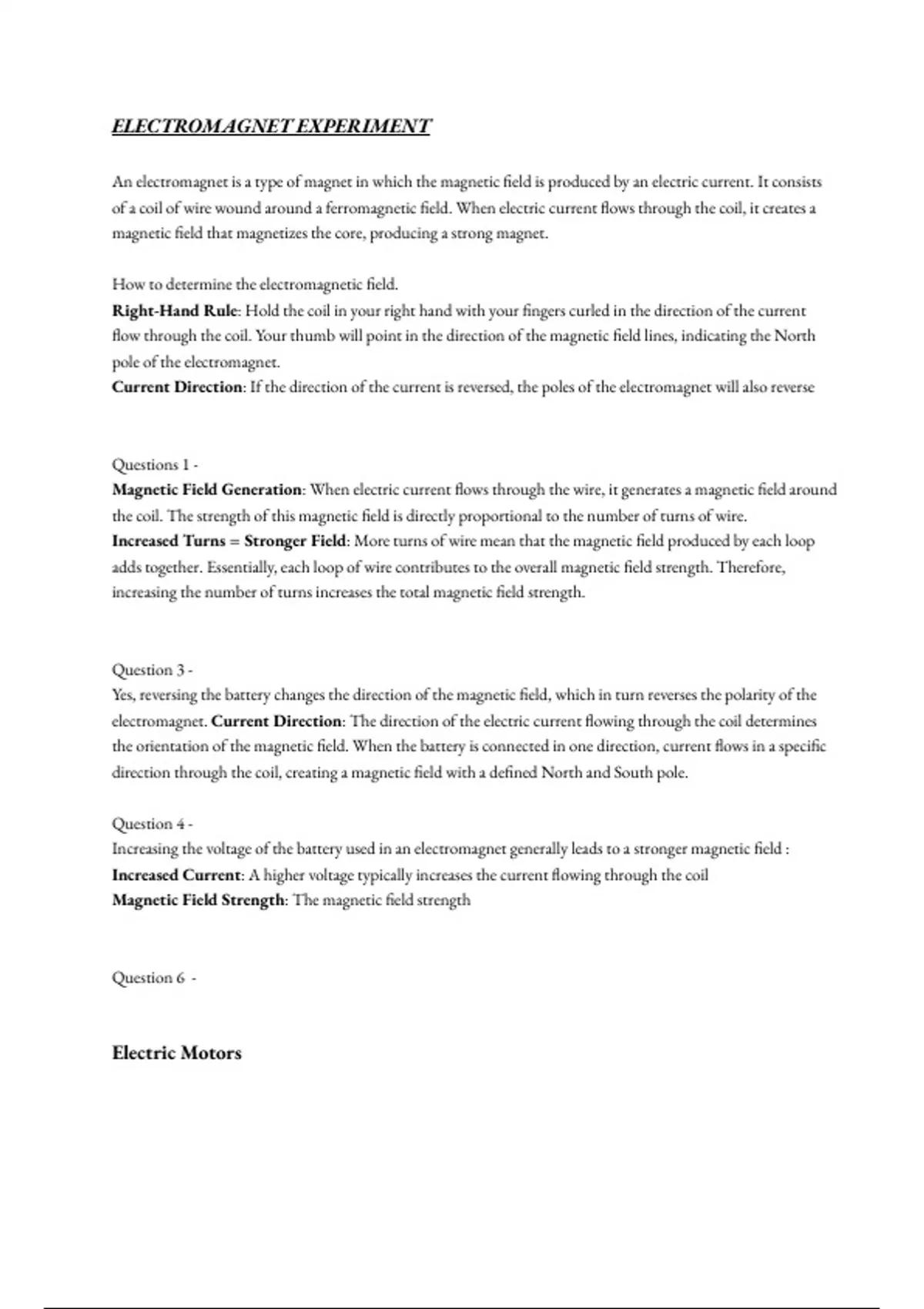

ELECTROMAGNET EXPERIMENT
An electromagnet is a type of magnet in which the magnetic field is produced by an electric current. It consists
of a coil of wire wound around a ferromagnetic field. When electric current flows through the coil, it creates a
magnetic field that magnetizes the core, producing a strong magnet.
How to determine the electromagnetic field.
Right-Hand Rule: Hold the coil in your right hand with your fingers curled in the direction of the current
flow through the coil. Your thumb will point in the direction of the magnetic field lines, indicating the North
pole of the electromagnet.
Current Direction: If the direction of the current is reversed, the poles of the electromagnet will also reverse
Questions 1 -
Magnetic Field Generation: When electric current flows through the wire, it generates a magnetic field around
the coil. The strength of this magnetic field is directly proportional to the number of turns of wire.
Increased Turns = Stronger Field: More turns of wire mean that the magnetic field produced by each loop
adds together. Essentially, each loop of wire contributes to the overall magnetic field strength. Therefore,
increasing the number of turns increases the total magnetic field strength.
Question 3 -
Yes, reversing the battery changes the direction of the magnetic field, which in turn reverses the polarity of the
electromagnet. Current Direction: The direction of the electric current flowing through the coil determines
the orientation of the magnetic field. When the battery is connected in one direction, current flows in a specific
direction through the coil, creating a magnetic field with a defined North and South pole.
Question 4 -
Increasing the voltage of the battery used in an electromagnet generally leads to a stronger magnetic field :
Increased Current: A higher voltage typically increases the current flowing through the coil
Magnetic Field Strength: The magnetic field strength
Question 6 -
Electric Motors
