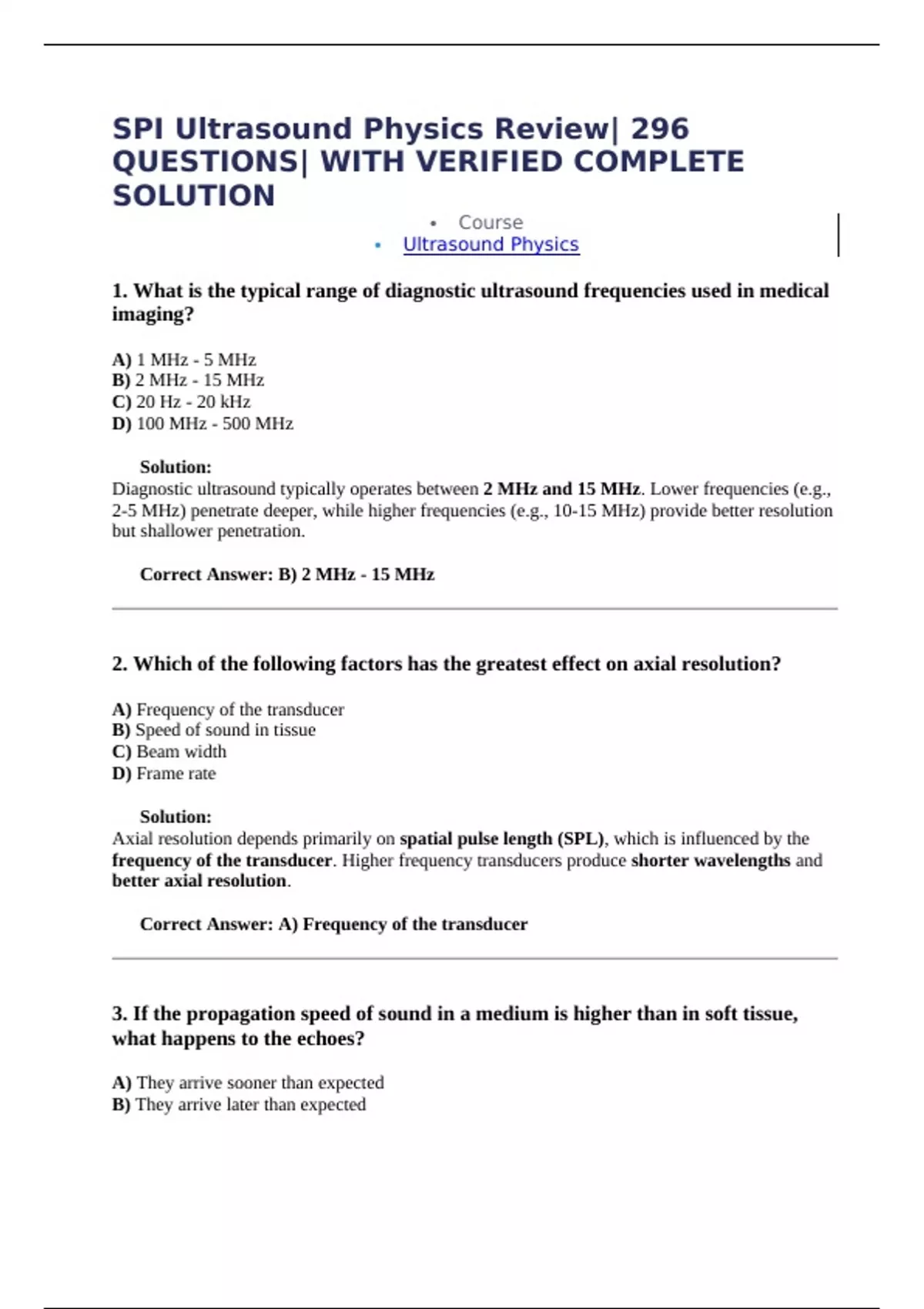

SPI Ultrasound Physics Review| 296
QUESTIONS| WITH VERIFIED COMPLETE
SOLUTION
Course
Ultrasound Physics
1. What is the typical range of diagnostic ultrasound frequencies used in medical
imaging?
A) 1 MHz - 5 MHz
B) 2 MHz - 15 MHz
C) 20 Hz - 20 kHz
D) 100 MHz - 500 MHz
✅ Solution:
Diagnostic ultrasound typically operates between 2 MHz and 15 MHz. Lower frequencies (e.g.,
2-5 MHz) penetrate deeper, while higher frequencies (e.g., 10-15 MHz) provide better resolution
but shallower penetration.
✅ Correct Answer: B) 2 MHz - 15 MHz
2. Which of the following factors has the greatest effect on axial resolution?
A) Frequency of the transducer
B) Speed of sound in tissue
C) Beam width
D) Frame rate
✅ Solution:
Axial resolution depends primarily on spatial pulse length (SPL), which is influenced by the
frequency of the transducer. Higher frequency transducers produce shorter wavelengths and
better axial resolution.
✅ Correct Answer: A) Frequency of the transducer
3. If the propagation speed of sound in a medium is higher than in soft tissue,
what happens to the echoes?
A) They arrive sooner than expected
B) They arrive later than expected
,C) They remain unchanged
D) The image appears hypoechoic
✅ Solution:
The ultrasound machine assumes a constant speed of sound of 1,540 m/s in soft tissue. If sound
travels faster, echoes return sooner than expected, causing structures to appear closer to the
transducer than they actually are.
✅ Correct Answer: A) They arrive sooner than expected
4. What is the primary cause of acoustic shadowing in ultrasound imaging?
A) Absorption
B) Reflection
C) Refraction
D) Attenuation
✅ Solution:
Acoustic shadowing occurs when a highly attenuating structure, such as bone or gallstones,
absorbs or reflects most of the sound waves, preventing sound from penetrating deeper tissues.
Attenuation is the key factor here.
✅ Correct Answer: D) Attenuation
5. Which type of Doppler shift occurs when blood is moving toward the
transducer?
A) Negative Doppler shift
B) Positive Doppler shift
C) No Doppler shift
D) Aliasing
✅ Solution:
A positive Doppler shift occurs when blood moves toward the transducer, resulting in an
increased frequency of the returning signal. A negative Doppler shift occurs when blood moves
away.
✅ Correct Answer: B) Positive Doppler shift
,6. What is the purpose of the matching layer in an ultrasound transducer?
A) To protect the piezoelectric elements
B) To reduce acoustic impedance mismatch
C) To increase the bandwidth
D) To focus the sound beam
✅ Solution:
The matching layer is designed to reduce the acoustic impedance mismatch between the
transducer’s piezoelectric material and the patient's skin, allowing more sound energy to enter
the body rather than being reflected.
✅ Correct Answer: B) To reduce acoustic impedance mismatch
7. If the depth of imaging is increased, what happens to the pulse repetition
frequency (PRF)?
A) Increases
B) Decreases
C) Stays the same
D) Becomes unpredictable
✅ Solution:
As imaging depth increases, the time required for echoes to return increases, which in turn
decreases the PRF to avoid overlap between pulses.
✅ Correct Answer: B) Decreases
8. Which of the following improves lateral resolution?
A) Increasing transducer frequency
B) Reducing beam diameter
C) Increasing depth
D) Using lower frequency transducers
✅ Solution:
Lateral resolution is primarily improved by narrowing the ultrasound beam, which can be
achieved by reducing beam diameter. Higher frequency transducers can also enhance lateral
resolution to some extent.
✅ Correct Answer: B) Reducing beam diameter
, 9. What is the main advantage of using a phased array transducer?
A) Higher penetration depth
B) Greater frame rate
C) Ability to perform electronic steering
D) Better lateral resolution
✅ Solution:
Phased array transducers allow electronic steering of the ultrasound beam, enabling imaging
of structures at different angles without physically moving the probe. This is useful in cardiac
and vascular imaging.
✅ Correct Answer: C) Ability to perform electronic steering
10. What is the function of time gain compensation (TGC) in ultrasound?
A) Adjusts the depth of focus
B) Reduces aliasing artifacts
C) Compensates for attenuation at greater depths
D) Enhances lateral resolution
✅ Solution:
As sound waves travel deeper, they lose energy due to attenuation. Time Gain Compensation
(TGC) boosts the gain for deeper echoes to ensure a uniform image brightness across depths.
✅ Correct Answer: C) Compensates for attenuation at greater depths
11. Which of the following best describes the piezoelectric effect?
A) Conversion of electrical energy into sound energy
B) Conversion of mechanical energy into electrical energy
C) Conversion of sound energy into heat energy
D) Reflection of sound waves at tissue boundaries
✅ Solution:
The piezoelectric effect refers to the ability of certain materials, such as PZT (lead zirconate
titanate), to convert mechanical (sound) energy into electrical energy and vice versa.
✅ Correct Answer: B) Conversion of mechanical energy into electrical energy
