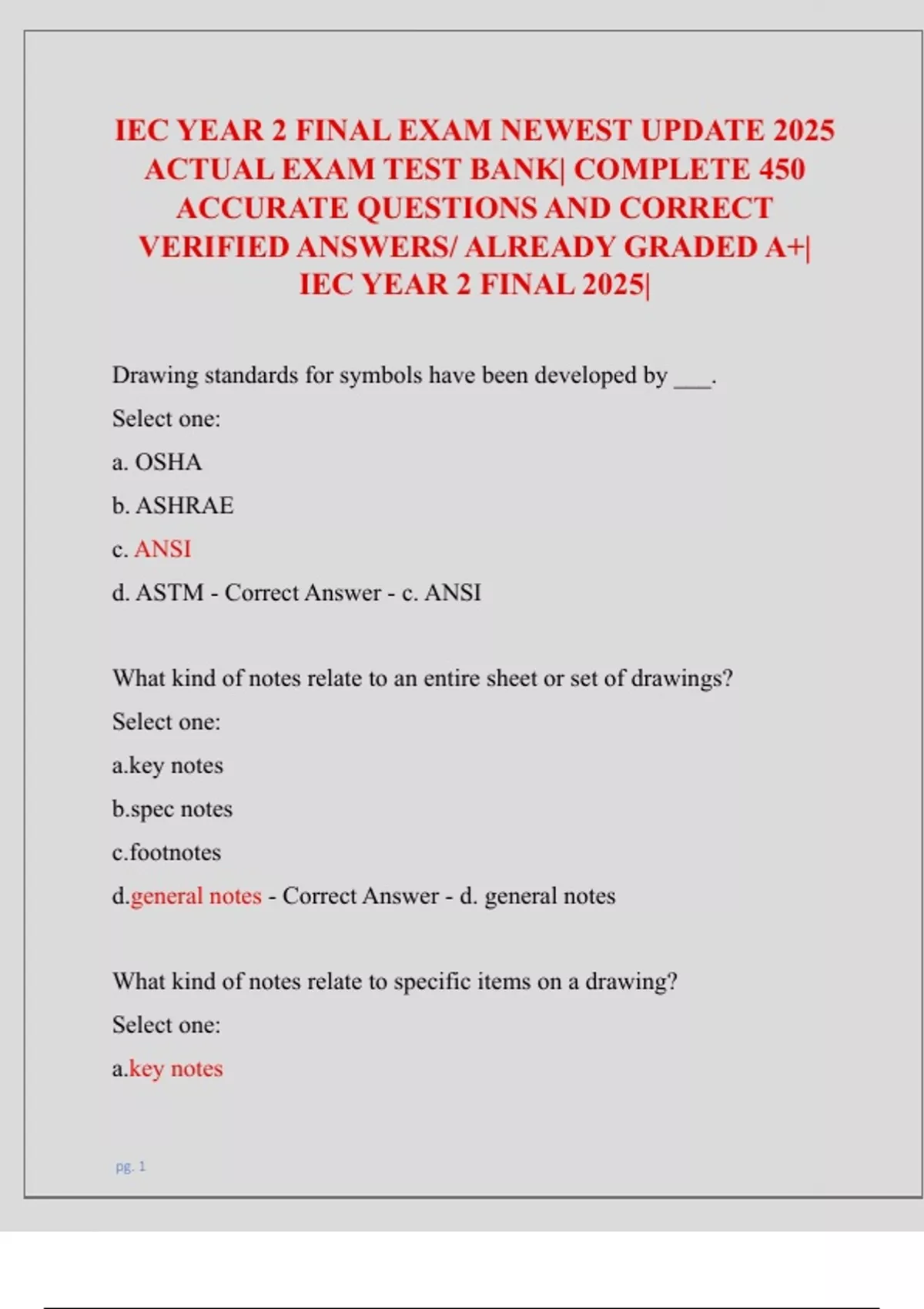

IEC YEAR 2 FINAL EXAM NEWEST UPDATE 2025
ACTUAL EXAM TEST BANK| COMPLETE 450
ACCURATE QUESTIONS AND CORRECT
VERIFIED ANSWERS/ ALREADY GRADED A+|
IEC YEAR 2 FINAL 2025|
Drawing standards for symbols have been developed by ___.
Select one:
a. OSHA
b. ASHRAE
c. ANSI
d. ASTM - Correct Answer - c. ANSI
What kind of notes relate to an entire sheet or set of drawings?
Select one:
a.key notes
b.spec notes
c.footnotes
d.general notes - Correct Answer - d. general notes
What kind of notes relate to specific items on a drawing?
Select one:
a.key notes
pg. 1
,b.spec notes
c.footnotes
d.general notes - Correct Answer - a. key notes
What are the scale types found on drawings?
Select one:
a.Electrical/Mechanical
b.Architectural/Engineering
c.Architectural/Electrical
d.General/Engineering - Correct Answer - b. Architectural/Engineering
1″ equals 50 feet is what type of scale?
Select one:
a.Engineering
b.Civil
c.Architectural
d.both a and b - Correct Answer - a
1/4″ equals 1 foot is what type of scale?
Select one:
a.Engineering
b.Civil
c.Architectural
pg. 2
,d.both a and b - Correct Answer - c. Architectural
A plot plan typically has what type of scale?
Select one:
a.Architectural
b.General
c.Combination
d.Civil - Correct Answer - d. Civil
Which type of plan has receptacles?
Select one:
a.Architectural
b.Structural
c.Power Plan
d.RCP - Correct Answer - c. Power Plan
Which type of plan has steel and foundations?
Select one:
a.Architectural
b.Structural
c.Power Plan
d.RCP - Correct Answer - b.Structural
pg. 3
, Which type of plan shows lighting?
Select one:
a.Architectural
b.Structural
c.Power Plan
d.RCP - Correct Answer - d. RCP
Which type of plan shows power distribution for the entire electrical
system?
Select one:
a.One-line
b.Power plan
c.Schematic
d.RCP - Correct Answer - a
Which of the following is a graphical representation of a vertical plane
of view?
Select one:
a.Section
b.Elevation
c.Riser
d.Detail - Correct Answer - b. Elevation
Which of the following is the spec division for electrical?
pg. 4
