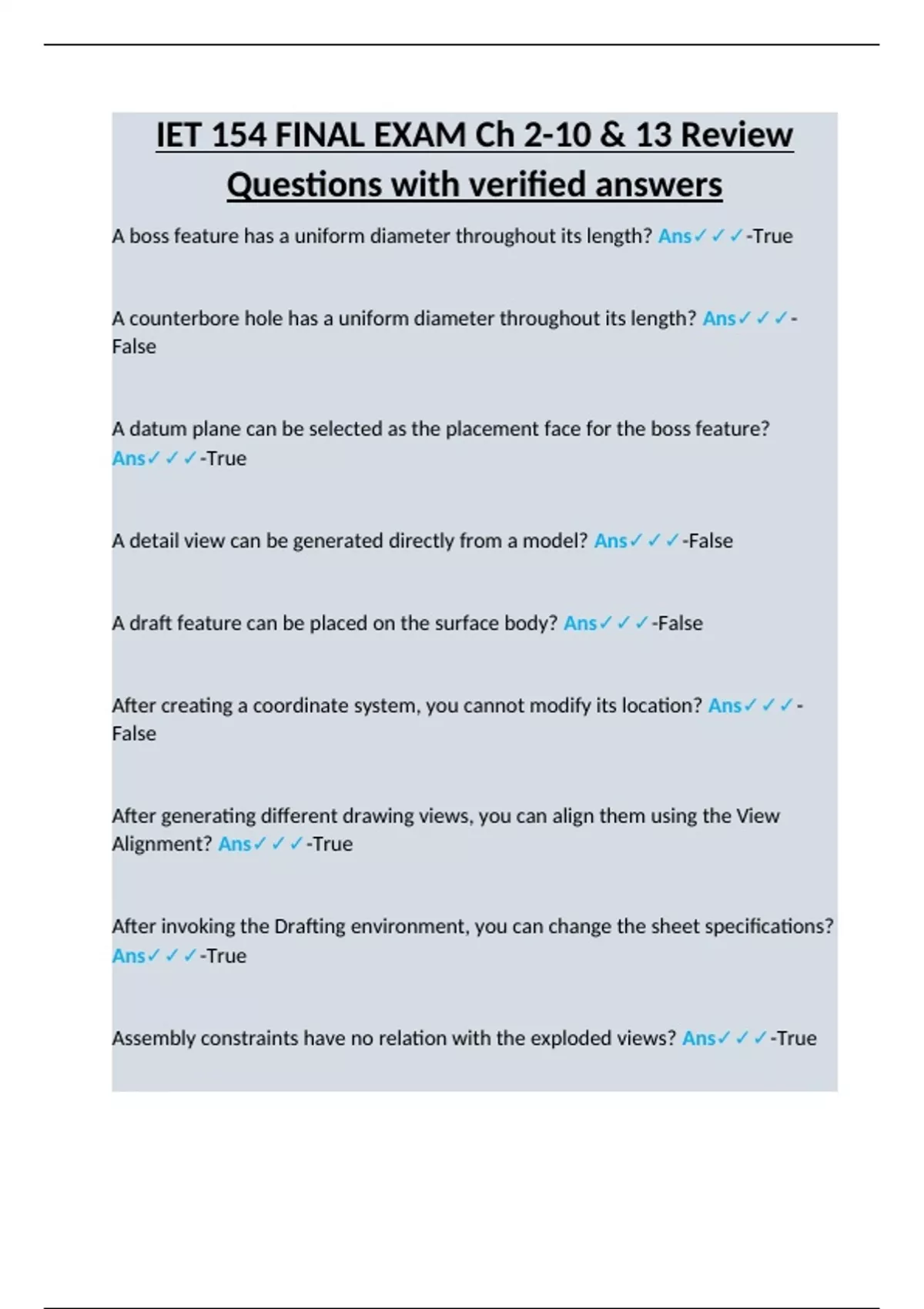

IET 154 FINAL EXAM Ch 2-10 & 13 Review
Questions with verified answers
A boss feature has a uniform diameter throughout its length? Ans✓✓✓-True
A counterbore hole has a uniform diameter throughout its length? Ans✓✓✓-
False
A datum plane can be selected as the placement face for the boss feature?
Ans✓✓✓-True
A detail view can be generated directly from a model? Ans✓✓✓-False
A draft feature can be placed on the surface body? Ans✓✓✓-False
After creating a coordinate system, you cannot modify its location? Ans✓✓✓-
False
After generating different drawing views, you can align them using the View
Alignment? Ans✓✓✓-True
After invoking the Drafting environment, you can change the sheet specifications?
Ans✓✓✓-True
Assembly constraints have no relation with the exploded views? Ans✓✓✓-True
,Before creating part balloons, it is mandatory to create the Parts List of the
assembly? Ans✓✓✓-True
Hole features can be placed on surfaces (sheet bodies)? Ans✓✓✓-False
If you choose Finish sketch tool from the Direct sketch group to exit the sketch
environment, the modeling environment will be invoked? Ans✓✓✓-True
If you clear the Associative check box in the Settings rollout of the Assembly
Constraint dialog box and choose the OK button, the constraint will not be
applied? Ans✓✓✓-True
If you create an associative datum plane, its name will be displayed as Fixed
Datum Plane in the Part Navigator? Ans✓✓✓-False
If you enter 0 in the Inner diameter edit box, the resulting tube feature will be
solid filled? Ans✓✓✓-True
In NX, how many methods are used to start a new file?
A. 1
B. 2
C. 3
D. 5 Ans✓✓✓-B, 2
In NX, you can create fillets by simply dragging the cursor across the entities that
you want to fillet. Ans✓✓✓-True
, In NX, you cannot draw a rectangle from its center. Ans✓✓✓-False
In T-slots, the bottom width value must be greater than the top width? Ans✓✓✓-
True
In the assembly, the components cannot be modified? Ans✓✓✓-False
In the Results rollout of the move object dialog box, you can specify whether you
want to move the original entity or its copy by using the move original or copy
original ratio button? Ans✓✓✓-True
In the Shell dialog box, which of the following rollouts is used to select a face of a
model to specify different wall thickness?
A. Alternate Thickness
B. Thickness
C. Settings
D. Offset face Ans✓✓✓-B, Thickness
In which of the following groups, you can set the display modes for solid models?
A. Standard
B. Sketch
C. Visible
D. View Ans✓✓✓-D, View
Questions with verified answers
A boss feature has a uniform diameter throughout its length? Ans✓✓✓-True
A counterbore hole has a uniform diameter throughout its length? Ans✓✓✓-
False
A datum plane can be selected as the placement face for the boss feature?
Ans✓✓✓-True
A detail view can be generated directly from a model? Ans✓✓✓-False
A draft feature can be placed on the surface body? Ans✓✓✓-False
After creating a coordinate system, you cannot modify its location? Ans✓✓✓-
False
After generating different drawing views, you can align them using the View
Alignment? Ans✓✓✓-True
After invoking the Drafting environment, you can change the sheet specifications?
Ans✓✓✓-True
Assembly constraints have no relation with the exploded views? Ans✓✓✓-True
,Before creating part balloons, it is mandatory to create the Parts List of the
assembly? Ans✓✓✓-True
Hole features can be placed on surfaces (sheet bodies)? Ans✓✓✓-False
If you choose Finish sketch tool from the Direct sketch group to exit the sketch
environment, the modeling environment will be invoked? Ans✓✓✓-True
If you clear the Associative check box in the Settings rollout of the Assembly
Constraint dialog box and choose the OK button, the constraint will not be
applied? Ans✓✓✓-True
If you create an associative datum plane, its name will be displayed as Fixed
Datum Plane in the Part Navigator? Ans✓✓✓-False
If you enter 0 in the Inner diameter edit box, the resulting tube feature will be
solid filled? Ans✓✓✓-True
In NX, how many methods are used to start a new file?
A. 1
B. 2
C. 3
D. 5 Ans✓✓✓-B, 2
In NX, you can create fillets by simply dragging the cursor across the entities that
you want to fillet. Ans✓✓✓-True
, In NX, you cannot draw a rectangle from its center. Ans✓✓✓-False
In T-slots, the bottom width value must be greater than the top width? Ans✓✓✓-
True
In the assembly, the components cannot be modified? Ans✓✓✓-False
In the Results rollout of the move object dialog box, you can specify whether you
want to move the original entity or its copy by using the move original or copy
original ratio button? Ans✓✓✓-True
In the Shell dialog box, which of the following rollouts is used to select a face of a
model to specify different wall thickness?
A. Alternate Thickness
B. Thickness
C. Settings
D. Offset face Ans✓✓✓-B, Thickness
In which of the following groups, you can set the display modes for solid models?
A. Standard
B. Sketch
C. Visible
D. View Ans✓✓✓-D, View
