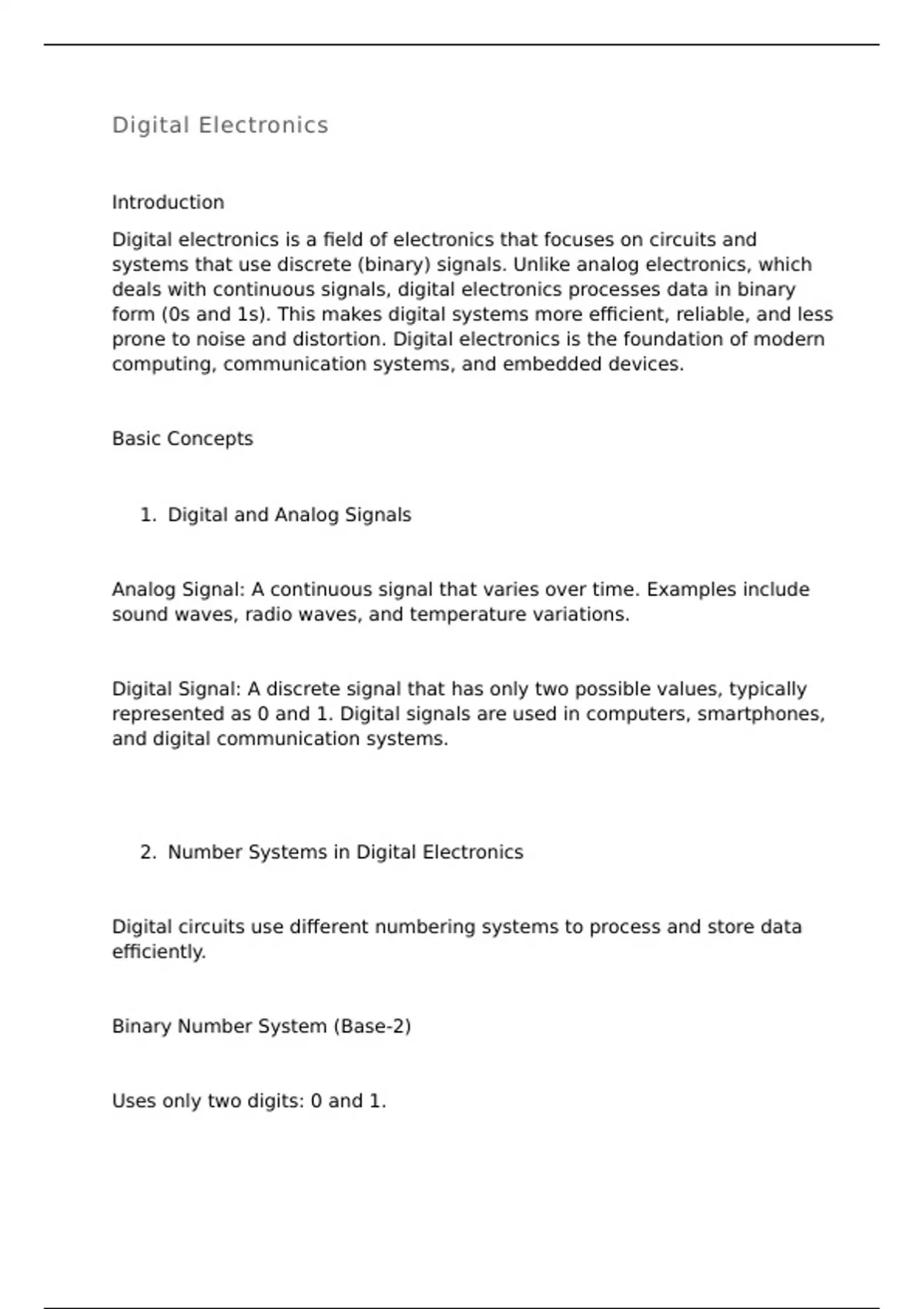

Digital Electronics
Introduction
Digital electronics is a field of electronics that focuses on circuits and
systems that use discrete (binary) signals. Unlike analog electronics, which
deals with continuous signals, digital electronics processes data in binary
form (0s and 1s). This makes digital systems more efficient, reliable, and less
prone to noise and distortion. Digital electronics is the foundation of modern
computing, communication systems, and embedded devices.
Basic Concepts
1. Digital and Analog Signals
Analog Signal: A continuous signal that varies over time. Examples include
sound waves, radio waves, and temperature variations.
Digital Signal: A discrete signal that has only two possible values, typically
represented as 0 and 1. Digital signals are used in computers, smartphones,
and digital communication systems.
2. Number Systems in Digital Electronics
Digital circuits use different numbering systems to process and store data
efficiently.
Binary Number System (Base-2)
Uses only two digits: 0 and 1.
, The fundamental numbering system in digital electronics.
Example: (1011)₂ = (11)₁₀ in decimal.
Decimal Number System (Base-10)
The common number system used in daily life.
Example: 345 in decimal.
Octal Number System (Base-8)
Uses digits from 0 to 7.
Often used in microprocessor programming.
Hexadecimal Number System (Base-16)
Uses digits from 0 to 9 and letters A to F.
Example: (2F)₁₆ = (47)₁₀.
Used in memory addressing in computers.
