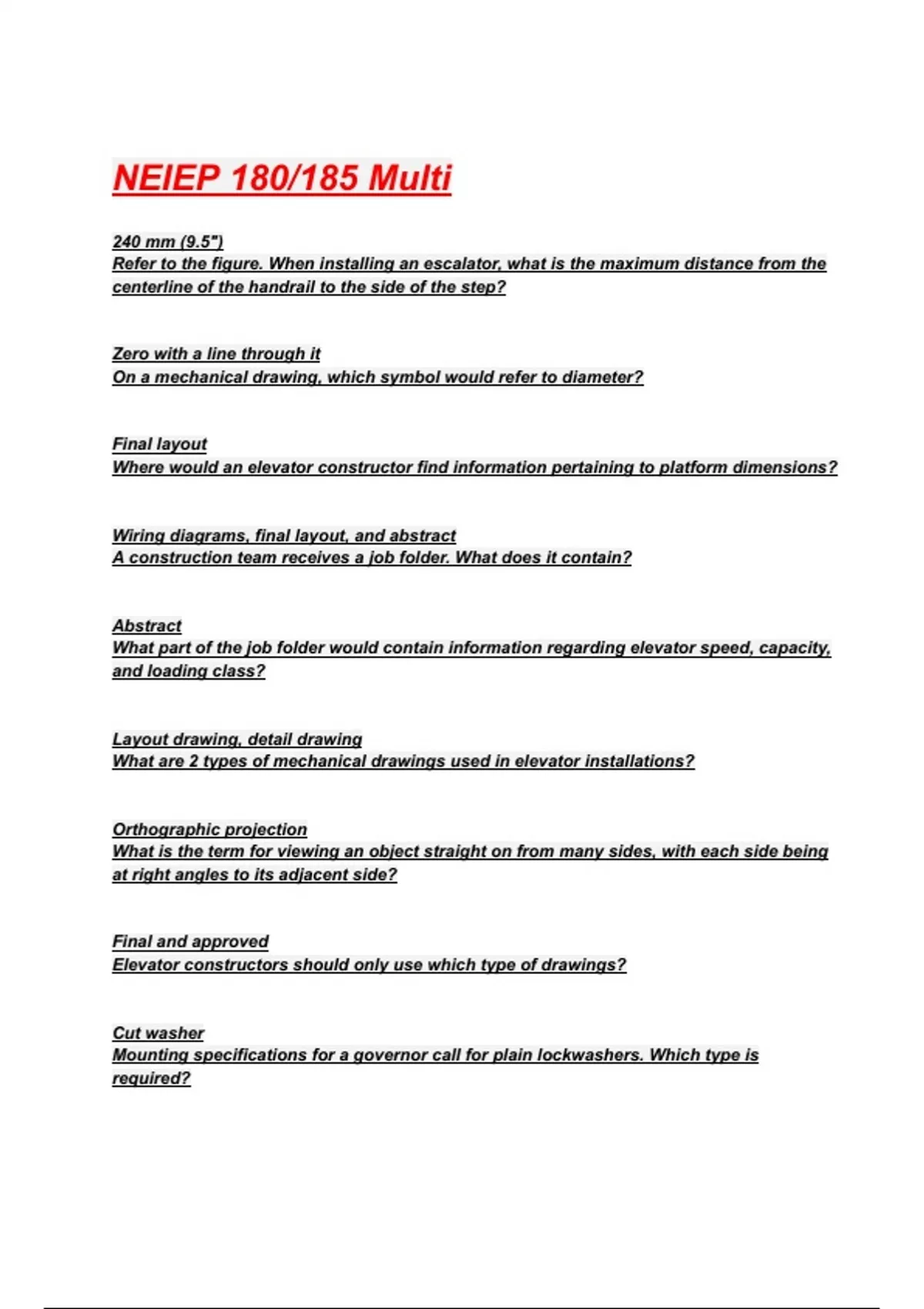

NEIEP 180/185 Multi
240 mm (9.5")
Refer to the figure. When installing an escalator, what is the maximum distance from the
centerline of the handrail to the side of the step?
Zero with a line through it
On a mechanical drawing, which symbol would refer to diameter?
Final layout
Where would an elevator constructor find information pertaining to platform dimensions?
Wiring diagrams, final layout, and abstract
A construction team receives a job folder. What does it contain?
Abstract
What part of the job folder would contain information regarding elevator speed, capacity,
and loading class?
Layout drawing, detail drawing
What are 2 types of mechanical drawings used in elevator installations?
Orthographic projection
What is the term for viewing an object straight on from many sides, with each side being
at right angles to its adjacent side?
Final and approved
Elevator constructors should only use which type of drawings?
Cut washer
Mounting specifications for a governor call for plain lockwashers. Which type is
required?
240 mm (9.5")
Refer to the figure. When installing an escalator, what is the maximum distance from the
centerline of the handrail to the side of the step?
Zero with a line through it
On a mechanical drawing, which symbol would refer to diameter?
Final layout
Where would an elevator constructor find information pertaining to platform dimensions?
Wiring diagrams, final layout, and abstract
A construction team receives a job folder. What does it contain?
Abstract
What part of the job folder would contain information regarding elevator speed, capacity,
and loading class?
Layout drawing, detail drawing
What are 2 types of mechanical drawings used in elevator installations?
Orthographic projection
What is the term for viewing an object straight on from many sides, with each side being
at right angles to its adjacent side?
Final and approved
Elevator constructors should only use which type of drawings?
Cut washer
Mounting specifications for a governor call for plain lockwashers. Which type is
required?
