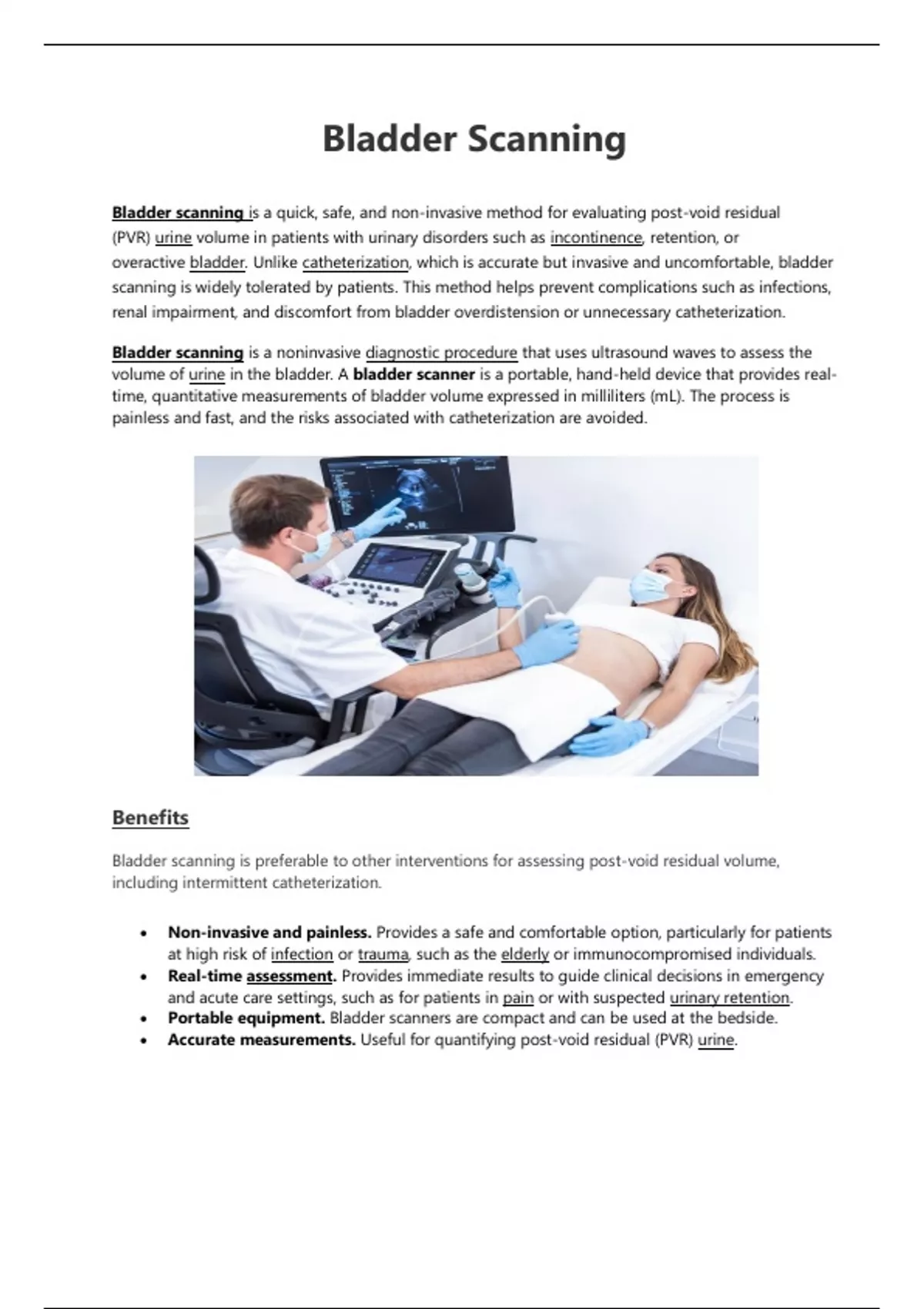

Bladder Scanning
Bladder scanning is a quick, safe, and non-invasive method for evaluating post-void residual
(PVR) urine volume in patients with urinary disorders such as incontinence, retention, or
overactive bladder. Unlike catheterization, which is accurate but invasive and uncomfortable, bladder
scanning is widely tolerated by patients. This method helps prevent complications such as infections,
renal impairment, and discomfort from bladder overdistension or unnecessary catheterization.
Bladder scanning is a noninvasive diagnostic procedure that uses ultrasound waves to assess the
volume of urine in the bladder. A bladder scanner is a portable, hand-held device that provides real-
time, quantitative measurements of bladder volume expressed in milliliters (mL). The process is
painless and fast, and the risks associated with catheterization are avoided.
Benefits
Bladder scanning is preferable to other interventions for assessing post-void residual volume,
including intermittent catheterization.
Non-invasive and painless. Provides a safe and comfortable option, particularly for patients
at high risk of infection or trauma, such as the elderly or immunocompromised individuals.
Real-time assessment. Provides immediate results to guide clinical decisions in emergency
and acute care settings, such as for patients in pain or with suspected urinary retention.
Portable equipment. Bladder scanners are compact and can be used at the bedside.
Accurate measurements. Useful for quantifying post-void residual (PVR) urine.
, Indications
Bladder scanning is performed to assess bladder function and identify abnormalities. Key indications
include:
Measures post-void residual (PVR) volume in patients with incomplete bladder
emptying. It is useful for diagnosing bladder outlet obstruction, detrusor muscle weakness,
or neurogenic bladder caused by conditions such as spinal cord injuries or multiple sclerosis.
Determines whether catheterization is necessary for urine drainage.
Reduces the risks of catheter-associated urinary tract infections (CAUTIs) and urethral trauma,
especially in patients with temporary or fluctuating urinary retention.
Assists in diagnosing causes of urgency, frequency, incontinence, or dribbling.
Differentiates between overactive bladder, stress incontinence, and retention-related
overflow incontinence.
Evaluates bladder function after surgeries, particularly abdominal, pelvic, or urological
procedures.
Post-anesthesia urinary retention is common due to the temporary suppression of bladder
reflexes. Bladder scanning ensures timely detection and intervention.
Ensures complete drainage in patients with urinary catheters.
Helps diagnose catheter-related problems, such as blockages or malpositioning, without
requiring invasive procedures.
Used in patients with Parkinson’s disease, stroke, or diabetes to assess for neurogenic
bladder dysfunction.
Identifies delayed bladder emptying, reducing the risk of renal complications from
prolonged urinary retention.
Interfering Factors
Various external and patient-related conditions contribute to false readings or inaccurate bladder
scanner readings.
Obesity or excess abdominal tissue. Increased tissue thickness can interfere with
ultrasound wave penetration, making it difficult to visualize the bladder clearly.
Incorrect probe placement. Improper scanner positioning can prevent the bladder from
being captured fully, resulting in inaccurate readings.
Insufficient ultrasound gel. Inadequate gel reduces the conduction of ultrasound waves,
resulting in poor image quality.
Presence of excess bowel gas. The air within the bowel can obstruct sound waves, reducing
image clarity and accuracy.
Patient movement. Movement during scanning can disrupt probe stability, leading to
incomplete or blurred images.
Post-surgical scarring. Scar tissue may distort the bladder image, leading to incorrect
volume measurements.
Severe bladder deformities. Anatomical abnormalities like diverticula or tumors may alter
the bladder shape and confuse scanner algorithms.
