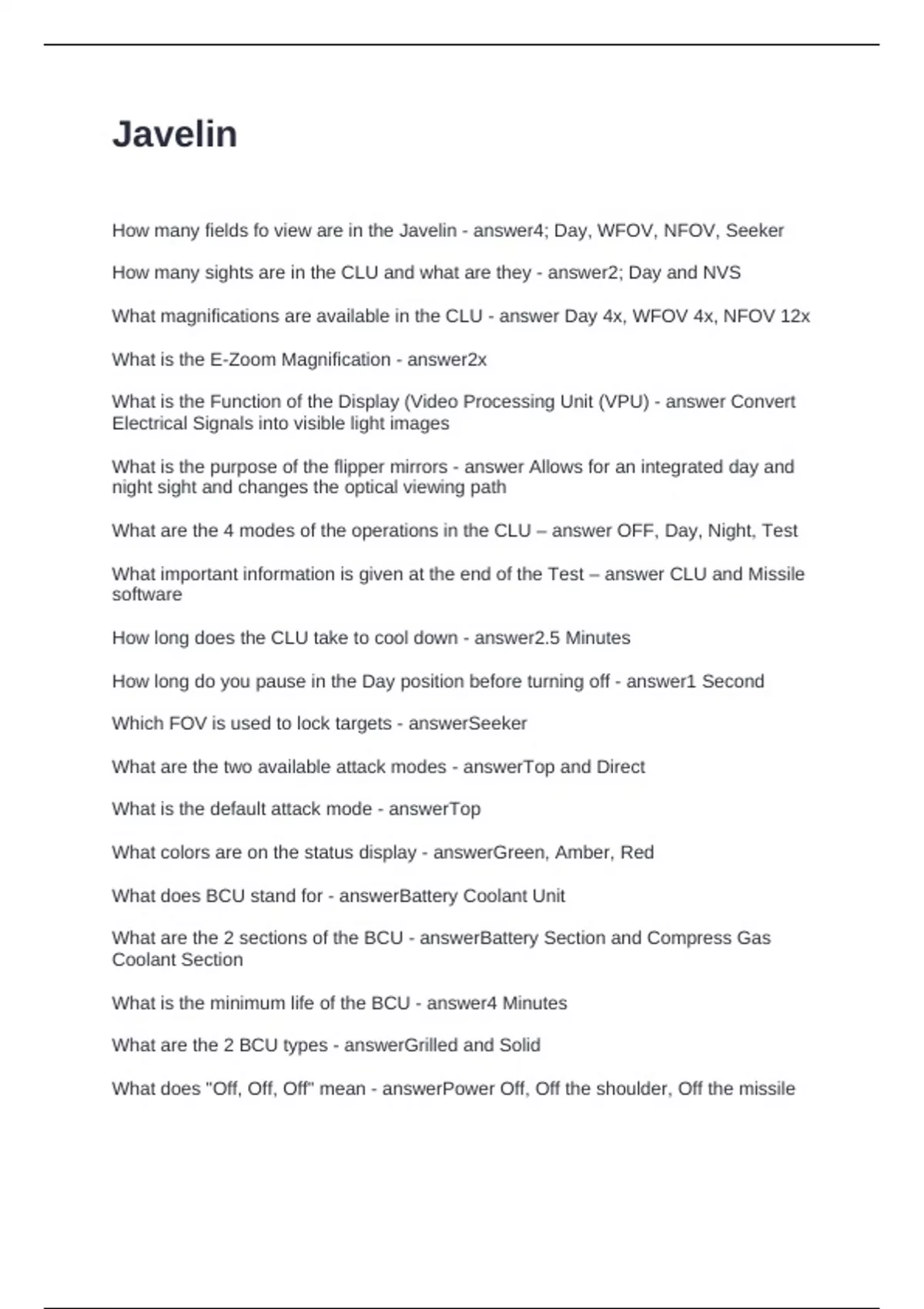

Javelin
How many fields fo view are in the Javelin - answer4; Day, WFOV, NFOV, Seeker
How many sights are in the CLU and what are they - answer2; Day and NVS
What magnifications are available in the CLU - answer Day 4x, WFOV 4x, NFOV 12x
What is the E-Zoom Magnification - answer2x
What is the Function of the Display (Video Processing Unit (VPU) - answer Convert
Electrical Signals into visible light images
What is the purpose of the flipper mirrors - answer Allows for an integrated day and
night sight and changes the optical viewing path
What are the 4 modes of the operations in the CLU – answer OFF, Day, Night, Test
What important information is given at the end of the Test – answer CLU and Missile
software
How long does the CLU take to cool down - answer2.5 Minutes
How long do you pause in the Day position before turning off - answer1 Second
Which FOV is used to lock targets - answerSeeker
What are the two available attack modes - answerTop and Direct
What is the default attack mode - answerTop
What colors are on the status display - answerGreen, Amber, Red
What does BCU stand for - answerBattery Coolant Unit
What are the 2 sections of the BCU - answerBattery Section and Compress Gas
Coolant Section
What is the minimum life of the BCU - answer4 Minutes
What are the 2 BCU types - answerGrilled and Solid
What does "Off, Off, Off" mean - answerPower Off, Off the shoulder, Off the missile
, What are Delta-Ts - answerDifference in Temperature
what is the max range of a Block 1 missile - answer2500 Meters
What is the battery life of a BA-5590 - answer4 Hours
What is the battery life of a BA5390 - answer6 Hours
What battery is never used in combat - answerAny Rechargeable battery
What battery is never used - answerBB-2590
What is the best target aspect to lock targets - answerFlank
What two options are used to reset a baseline - answerMenu Option, and Power Option
How many motor are in the Javelin - answer2
What is the missile casing called - answerLaunch Tube Assembly (LTA)
How long is a hang fire or missfire pointed downrange - answer60 seconds, or 1 minuet
What FOV is used to classify targets - answerNFOV
What FOV is used for surveillance - answerWFOV
Where is the target image displayed - answerThe eye Piece
How many warheads are in the Javelin - answer2
How long does it take the missile to reach 1000m - answer7 seconds
What two switches open the CLU Menu - answerFilter and Attack Select
How is a Rapid Engagement performed - answer-Prepare the Javelin for fire
-Attached the missile to the CLU
-Power the CLU to DAY
-Squeeze and hold the Seeker Trigger and listen for the BCU to pop
-Remove the Forward End Cap
-Assume a good firing position and check the Status Display for the Seeker FOV and
flashing Tracking Gates
-Adjust tracking Gates
-Squeeze and hold Seeker Trigger to lock Tracking Gates
-Squeeze Fire Trigger
