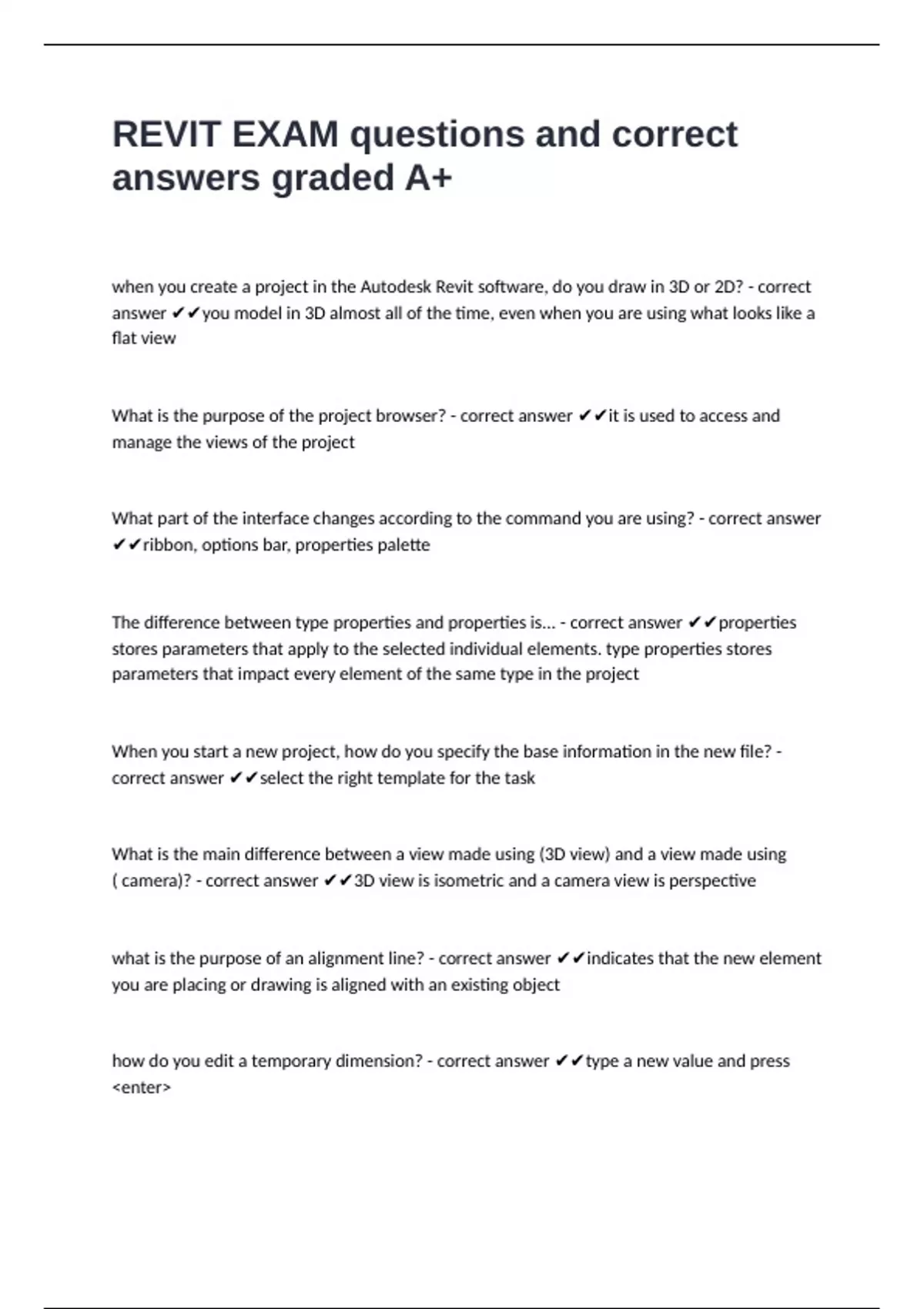

REVIT EXAM questions and correct
answers graded A+
when you create a project in the Autodesk Revit software, do you draw in 3D or 2D? - correct
answer ✔✔you model in 3D almost all of the time, even when you are using what looks like a
flat view
What is the purpose of the project browser? - correct answer ✔✔it is used to access and
manage the views of the project
What part of the interface changes according to the command you are using? - correct answer
✔✔ribbon, options bar, properties palette
The difference between type properties and properties is... - correct answer ✔✔properties
stores parameters that apply to the selected individual elements. type properties stores
parameters that impact every element of the same type in the project
When you start a new project, how do you specify the base information in the new file? -
correct answer ✔✔select the right template for the task
What is the main difference between a view made using (3D view) and a view made using
( camera)? - correct answer ✔✔3D view is isometric and a camera view is perspective
what is the purpose of an alignment line? - correct answer ✔✔indicates that the new element
you are placing or drawing is aligned with an existing object
how do you edit a temporary dimension? - correct answer ✔✔type a new value and press
<enter>
, how do you select only doors in a view? - correct answer ✔✔select all of the objects in the view
and use (filter) to clear the other categories
What are the two methods for starting (move) or (copy)? - correct answer ✔✔Start the
command first and then select the objects, or select the objects and then start the command
Where do you change the wall type for a selected wall? - correct answer ✔✔in properties,
select a new type in the type selector drop-down list
Both (rotate) and (array) with (radial) have a center of rotation that defaults to the center
of the element or group of elements toy have selected. How do you move the center of rotation
to another point? - correct answer ✔✔select the center of rotation and drag it to a new location
in the options bar, click (place) and select the new point
What type of view do you need to be in to add a level to your project? - correct answer ✔✔And
section view or elevation view
How do you add a level name and target to both ends of a level line? - correct answer ✔✔Select
the level line and ensure that the control box at both end is checked
Which of the following types of CAD formats can you import into the Autodesk Revit software
(select all that apply) - correct answer ✔✔DWG, SAT, DGN
Where do you specify the height of a wall before you start drawing it? (select all that apply) -
correct answer ✔✔In the modify/place wall tab
In properties palette
