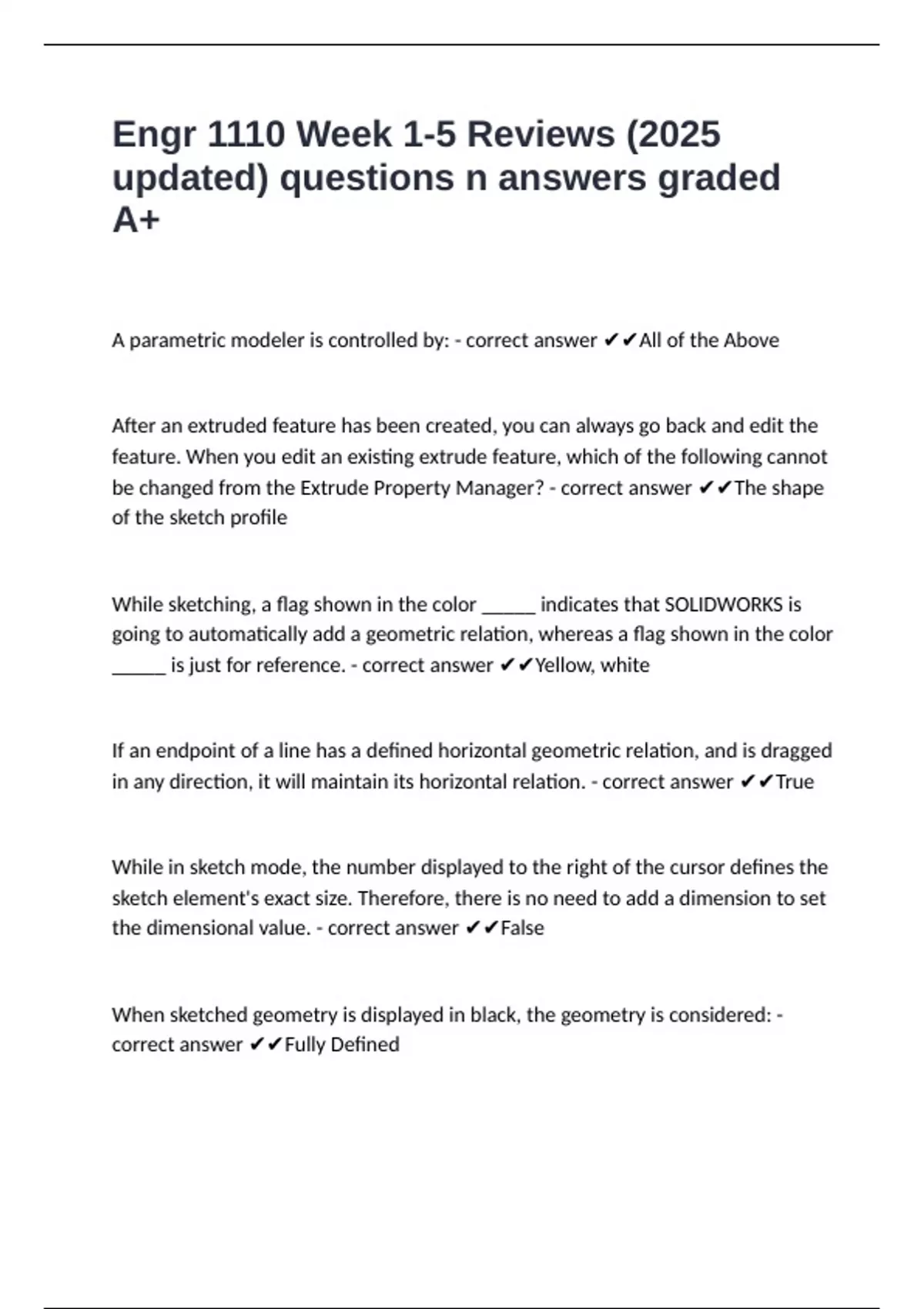

Engr 1110 Week 1-5 Reviews (2025
updated) questions n answers graded
A+
A parametric modeler is controlled by: - correct answer ✔✔All of the Above
After an extruded feature has been created, you can always go back and edit the
feature. When you edit an existing extrude feature, which of the following cannot
be changed from the Extrude Property Manager? - correct answer ✔✔The shape
of the sketch profile
While sketching, a flag shown in the color _____ indicates that SOLIDWORKS is
going to automatically add a geometric relation, whereas a flag shown in the color
_____ is just for reference. - correct answer ✔✔Yellow, white
If an endpoint of a line has a defined horizontal geometric relation, and is dragged
in any direction, it will maintain its horizontal relation. - correct answer ✔✔True
While in sketch mode, the number displayed to the right of the cursor defines the
sketch element's exact size. Therefore, there is no need to add a dimension to set
the dimensional value. - correct answer ✔✔False
When sketched geometry is displayed in black, the geometry is considered: -
correct answer ✔✔Fully Defined
, The shortcut menu shown in the image is activated by: - correct answer ✔✔The
'S' hotkey
An Over Defined, conflicting sketch will be displayed in which of the following
colors? - correct answer ✔✔Red, yellow
When box-selecting multiple items, to include only items completely enclosed
within the box, drag the selection box from left to right. - correct answer ✔✔True
While sketching a __________, you can switch directly to the Arc tool without
clicking the Arc tool icon. - correct answer ✔✔Line
Using the __________ option, you can change the state of a model back to where
a particular feature or features weren't yet created. - correct answer ✔✔Rollback
By default, the Centerline tool creates construction geometry. - correct answer
✔✔True
The Extruded Boss feature can be used to remove material. - correct answer
✔✔False
Which of the following is NOT a type of arc in SOLIDWORKS? - correct answer
✔✔Equal Radius Arc
The ___ key(s) is used to launch the shortcut menu. - correct answer ✔✔S
