Extron Av Study Guide Questions And Answers Latest Update

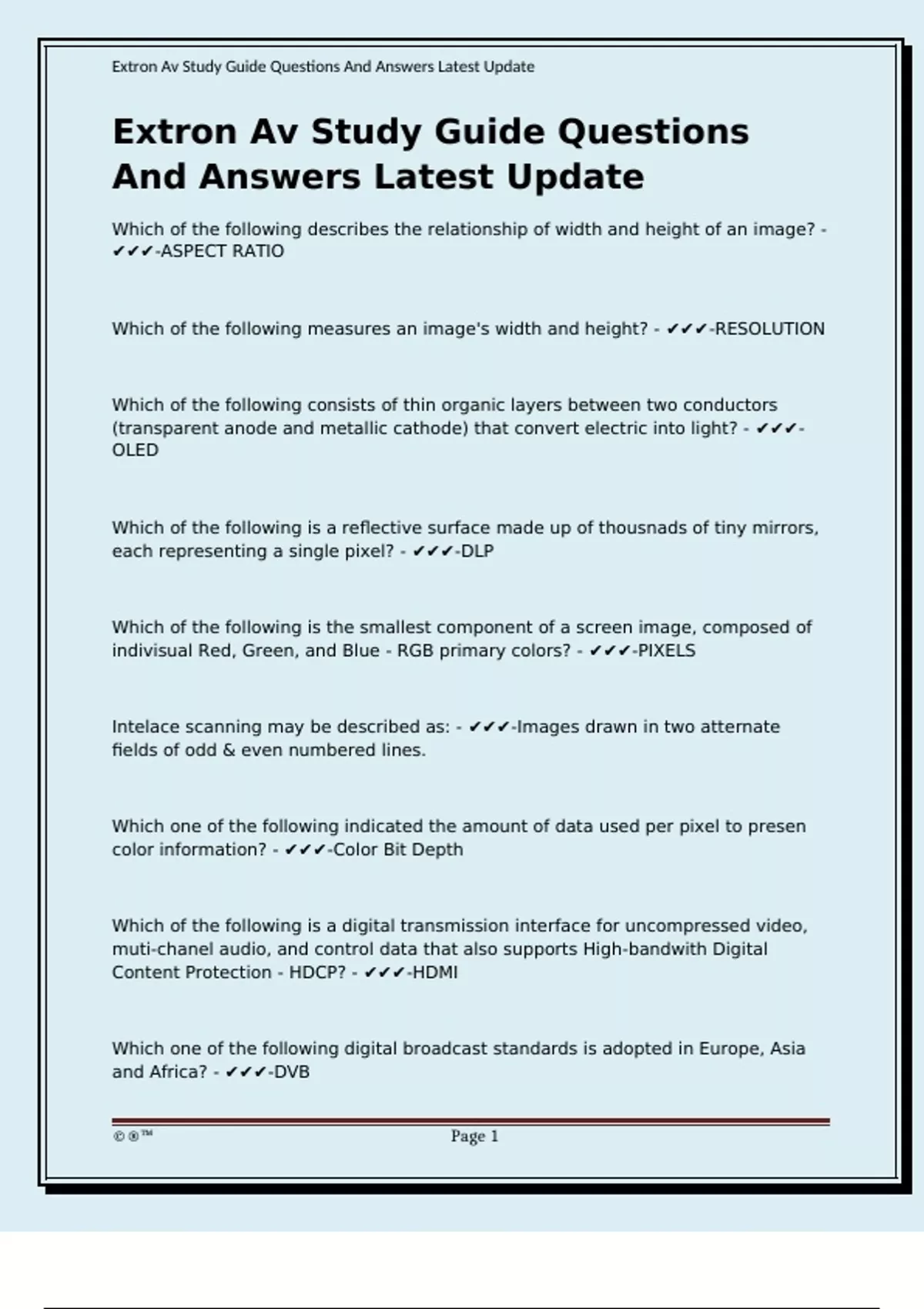

Extron Av Study Guide Questions
And Answers Latest Update
Which of the following describes the relationship of width and height of an image? -
✔✔✔-ASPECT RATIO
Which of the following measures an image's width and height? - ✔✔✔-RESOLUTION
Which of the following consists of thin organic layers between two conductors
(transparent anode and metallic cathode) that convert electric into light? - ✔✔✔-
OLED
Which of the following is a reflective surface made up of thousnads of tiny mirrors,
each representing a single pixel? - ✔✔✔-DLP
Which of the following is the smallest component of a screen image, composed of
indivisual Red, Green, and Blue - RGB primary colors? - ✔✔✔-PIXELS
Intelace scanning may be described as: - ✔✔✔-Images drawn in two atternate
fields of odd & even numbered lines.
Which one of the following indicated the amount of data used per pixel to presen
color information? - ✔✔✔-Color Bit Depth
Which of the following is a digital transmission interface for uncompressed video,
muti-chanel audio, and control data that also supports High-bandwith Digital
Content Protection - HDCP? - ✔✔✔-HDMI
Which one of the following digital broadcast standards is adopted in Europe, Asia
and Africa? - ✔✔✔-DVB
©®™ Page 1
, Extron Av Study Guide Questions And Answers Latest Update
DVI and HDMI both use a signaling method known as: - ✔✔✔-TMDS
Which of the following are mountable metal plates that provide AV connectors for
audio, video, phone, data, power, and control? - ✔✔✔-AAPs and MAAPs
True or False: The Cable Cubby Series/2 enclosures do NOT accommodate Extron
patented, variable-speed cable retraction modules for AV cables. - ✔✔✔-TRUE
Which of the following uses a standard RJ-45 modular connector for twisted pair
cable? - ✔✔✔-HDBaseT
Which of the following does NOT contain additional shielding like meshes or
aluminum foil? - ✔✔✔-STP
Which of the following is a measurement, in decibels (dB), of the amount of any
reduction in signal strength, or loss, due to the natural consequence of
transmission over long distance? - ✔✔✔-Attenuation
Which of the following contributes to the impedance of a cable? - ✔✔✔-All of the
above
Which of the following cable shielding methods has many fine strands of material
woven together that encompasses the insulation of the cable? - ✔✔✔-Braided
Shield
Which of the following core conductors is made of one single wire and generally
provides excellent conductivity? - ✔✔✔-SOLID
©®™ Page 2
