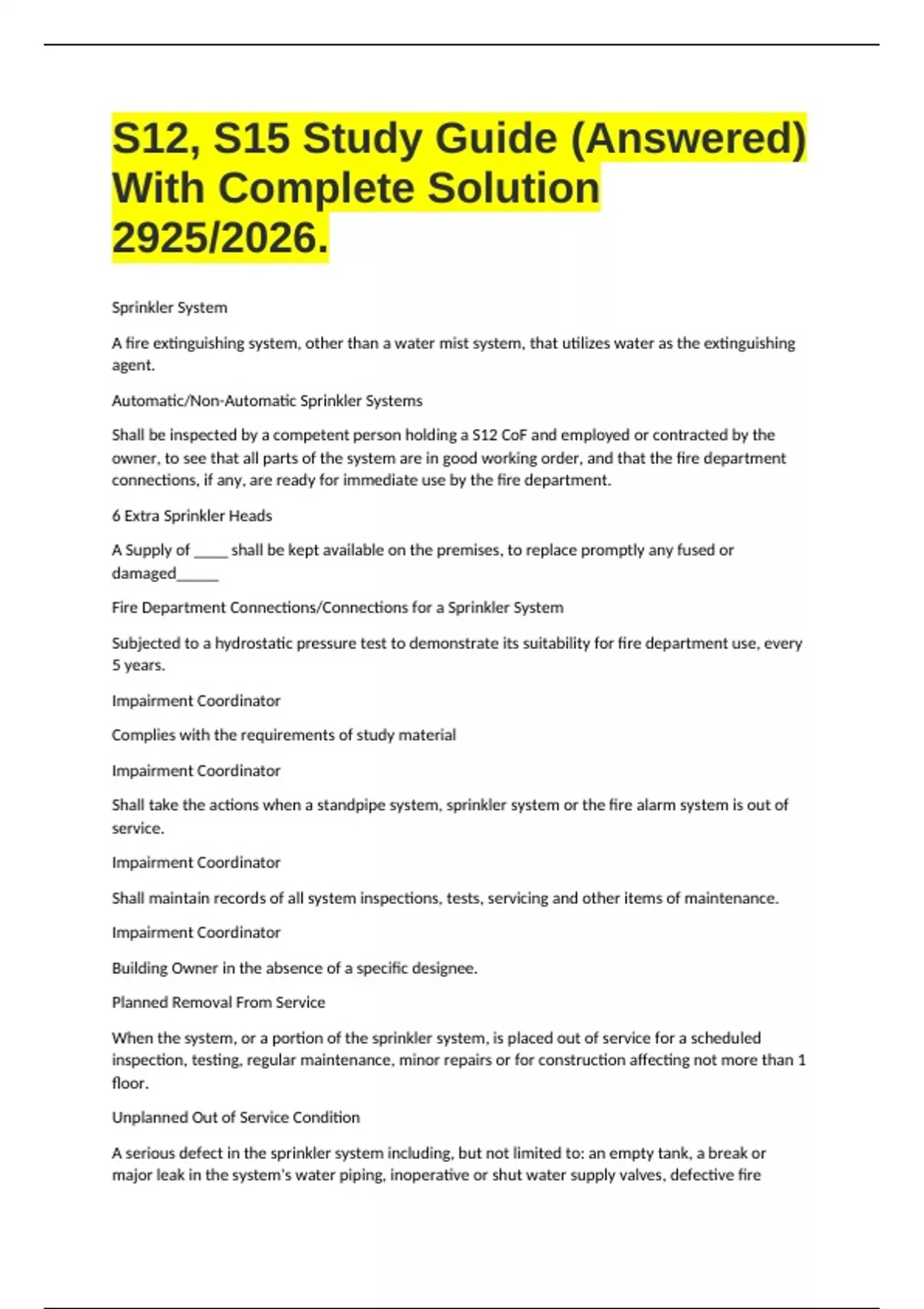

S12, S15 Study Guide (Answered)
With Complete Solution
2925/2026.
Sprinkler System
A fire extinguishing system, other than a water mist system, that utilizes water as the extinguishing
agent.
Automatic/Non-Automatic Sprinkler Systems
Shall be inspected by a competent person holding a S12 CoF and employed or contracted by the
owner, to see that all parts of the system are in good working order, and that the fire department
connections, if any, are ready for immediate use by the fire department.
6 Extra Sprinkler Heads
A Supply of ____ shall be kept available on the premises, to replace promptly any fused or
damaged_____
Fire Department Connections/Connections for a Sprinkler System
Subjected to a hydrostatic pressure test to demonstrate its suitability for fire department use, every
5 years.
Impairment Coordinator
Complies with the requirements of study material
Impairment Coordinator
Shall take the actions when a standpipe system, sprinkler system or the fire alarm system is out of
service.
Impairment Coordinator
Shall maintain records of all system inspections, tests, servicing and other items of maintenance.
Impairment Coordinator
Building Owner in the absence of a specific designee.
Planned Removal From Service
When the system, or a portion of the sprinkler system, is placed out of service for a scheduled
inspection, testing, regular maintenance, minor repairs or for construction affecting not more than 1
floor.
Unplanned Out of Service Condition
A serious defect in the sprinkler system including, but not limited to: an empty tank, a break or
major leak in the system's water piping, inoperative or shut water supply valves, defective fire
,department connections, construction related shut downs affecting more than one floor, or
complete or partial shut downs of the sprinkler system, other than a shut down for a planned
removal form service.
Tag Requirement
Shall be used to indicate that a system, or portions are out of service.
Tags
Shall indicate the are affected, a brief description of the condition, the occupancy classification, CoF
number and the estimated time until the system becomes operational.
Green Tags
If no impairment is found in the entire system ___ will be placed on the main control valve.
Systems Fully Out of Service
White Discs 8-9" in diameter is placed on all affected fire department connections. A red tag shall be
placed at the main control valve indicating the sprinkler company name, date of removal from
service and anticipated return to service date.
Systems Partially Out of Service
Blue Discs 8-9" in diameter is placed on all affected fire department connections. a red tag shall be
placed at the main control valve and ay closed sectional valve indicating the company name, date or
removal from service and anticipated return to service date.
Fire Watch
Building staff trained and knowledgeable in conducting a fire watch may conduct a ____ in lieu of a
fire guard during the initial 4 hours of a planned removal from service, or after discovery of an
unplanned out-of-service condition, provided that the floor or area in which the fire protection
system is out of service does not exceed 50,000 sqft.
CoF Holder
Responsibilities include: Record Keeping, Records, Detailed Records, Riser Card Updates.
Record Keeping
Maintain a detailed record of all inspections.
Records
All system inspections, tests, servicing and other maintenance required by this NYC Fire Code, the
NYC Fire rules or the referenced standards shall be maintained on the premises for a minimum of 3
years.
Detailed Records
Shall include information relative to conditions of water supply, gravity and pressure tanks and levels
therein, valves, risers, piping, sprinkler heads and fire department connections, alarms, fire, booster
and special service pumps, obstructions, and conditions of all other system equipment and
appurtenances. All defects and/or impairments shall be noted on the report.
,Riser Card
An approved card bearing the dates of each inspection, CoF number and signature of the CoF holder
shall be posted on the premises near therein water supply control valve.
S12/S15 CoF Holder
Responsibilities include Visual inspections only, proper notification and record inspection results for
examinations by FDNY.
Alarm Notification Appliance
A fire alarm system component, such as a bell, horn, speaker, light, text display or vibration device
that issues an audible, tactile, and/or visual alert.
Alarm Signal
A notification indicating an emergency requiring immediate action such as a notification indicative of
fire.
Antifreeze Sprinkler System
A wet pipe sprinkler system employing automatic sprinklers that are attached to a piping system that
contains an an antifreeze solution and is connected to a water supply. The antifreeze solution is
discharged, followed by water immediately upon operation of sprinklers opened by heat from a fire
Automatic Ball Drip
An automatic drain valve horizontally installed at the low point in the piping between the lower
check valve and the fire department connection of automatic sprinkler systems. Water pressure
from a Fire Department pumper automatically closes this valve. It automatically re-opens when
pressure ceases, permitting this piping to drain and thereby prevent freezing.
Central Station
A facility that receives alarm signals from a protected premises and retransmits or otherwise reports
such alarm signals to the department.
Combination Standpipe and Sprinkler System
A system where the water piping services both 2.5" outlets for Fire Department use and outlets for
automatic sprinklers.
Concealed Sprinkler
A recessed sprinkler with a cover plate.
CMSA
Control Mode Specific Application Sprinklers
Control Mode Specific Application (CMSA) Sprinklers
Designed to control a fire until its original fuel source is depleted or until fire-fighting activities can
commence. A fire is controlled by cooling the ceiling-level air temperatures, reducing the fire's rate
of heat release and pre-wetting adjacent combustibles.
Control Valve
, A valve controlling flow to water-based fire protection systems. They do NOT include hose valves,
inspector's test valves, drain valves, trim valves for dry pipe, preaction and deluge valves, check
valves or relief valves.
Control Valves
Include OS&Y, Curb valves
OS&Y Valve
Outside Stem & Yoke Valve
OS&Y (Outside Stem & Yoke)
An indicating type of control valve used for fire sprinkler system.
Curb Valve
Non-indicating gate valve equipped with a cast iron extension box flushed with a sidewalk with an
operation nut of 1.25", this valve is operated using a special curb key wrench. This valve controls the
municipal water supply serving the fire sprinkler system.
Corrosion-Resistant Sprinkler
A sprinkler fabricated with corrosion resistant materials, or special coatings to be used in an
atmosphere that would corrode standard sprinklers.
Deficiency
A condition in which the application of the component is not within its designed limits or
specifications.
Deficiencies
Includes Critical & Non Critical
Critical Deficiency
A deficiency that, if not corrected, can have an effect on the performance of the fire protection
system.
Non-Critical Deficiency
A deficiency that does not have an effect on the performance of the fire protection system, but
correction is needed for the proper inspection, testing and maintenance of the system.
Deluge Valve
A water supply control valve intended to be operate by actuation of an automatic detection system
that is installed in the same area as the discharge devices.
Deluge Sprinkler System
A sprinkler system employing open sprinklers that are attached to a piping system that is connected
to a water supply through a valve that is opened by the operation of a detection system installed in
the same areas as the sprinklers. When this valve opens, water flows into the piping system and
discharges from all sprinklers attached.
