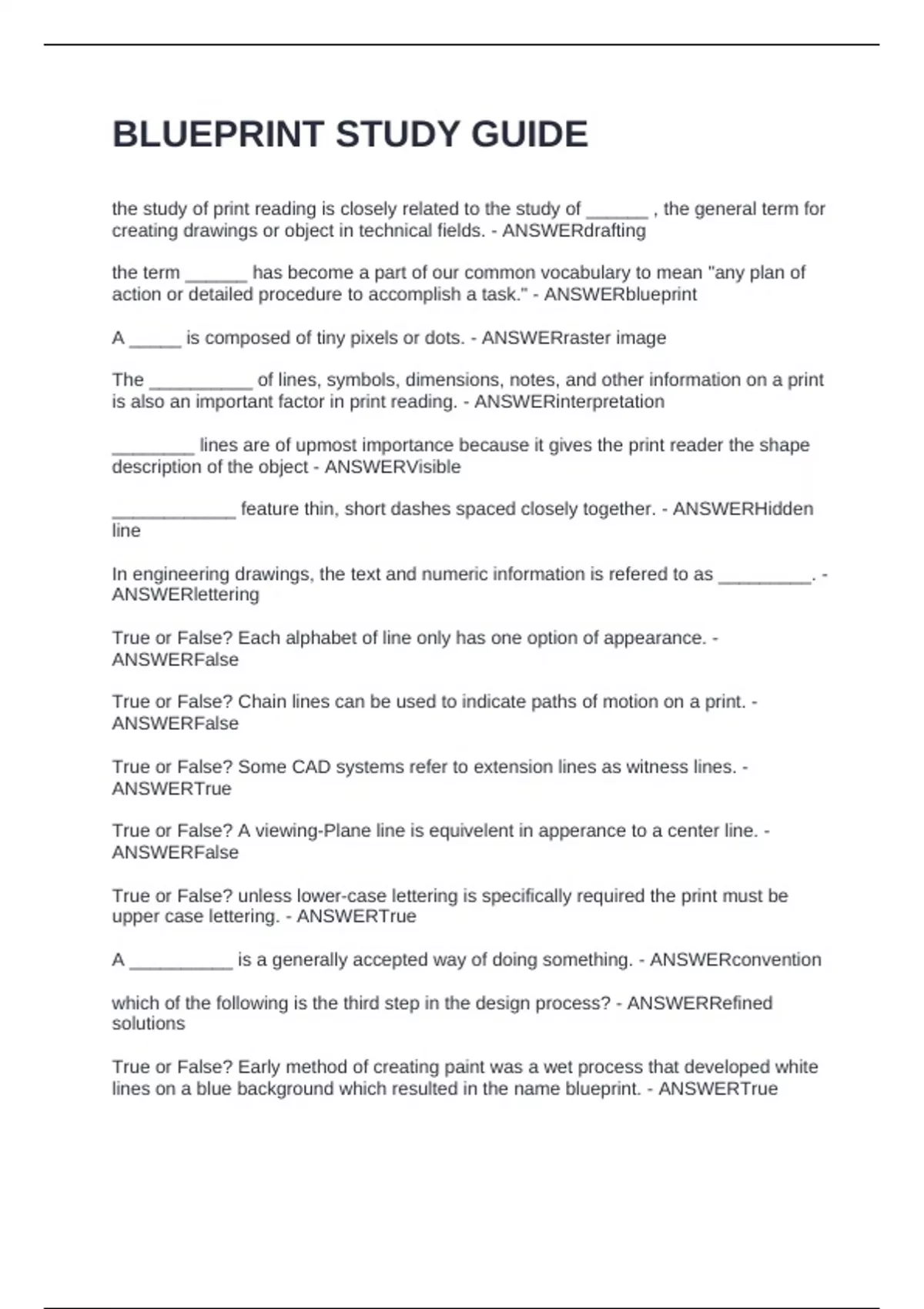

BLUEPRINT STUDY GUIDE
the study of print reading is closely related to the study of ______ , the general term for
creating drawings or object in technical fields. - ANSWERdrafting
the term ______ has become a part of our common vocabulary to mean "any plan of
action or detailed procedure to accomplish a task." - ANSWERblueprint
A _____ is composed of tiny pixels or dots. - ANSWERraster image
The __________ of lines, symbols, dimensions, notes, and other information on a print
is also an important factor in print reading. - ANSWERinterpretation
________ lines are of upmost importance because it gives the print reader the shape
description of the object - ANSWERVisible
____________ feature thin, short dashes spaced closely together. - ANSWERHidden
line
In engineering drawings, the text and numeric information is refered to as _________. -
ANSWERlettering
True or False? Each alphabet of line only has one option of appearance. -
ANSWERFalse
True or False? Chain lines can be used to indicate paths of motion on a print. -
ANSWERFalse
True or False? Some CAD systems refer to extension lines as witness lines. -
ANSWERTrue
True or False? A viewing-Plane line is equivelent in apperance to a center line. -
ANSWERFalse
True or False? unless lower-case lettering is specifically required the print must be
upper case lettering. - ANSWERTrue
A __________ is a generally accepted way of doing something. - ANSWERconvention
which of the following is the third step in the design process? - ANSWERRefined
solutions
True or False? Early method of creating paint was a wet process that developed white
lines on a blue background which resulted in the name blueprint. - ANSWERTrue
the study of print reading is closely related to the study of ______ , the general term for
creating drawings or object in technical fields. - ANSWERdrafting
the term ______ has become a part of our common vocabulary to mean "any plan of
action or detailed procedure to accomplish a task." - ANSWERblueprint
A _____ is composed of tiny pixels or dots. - ANSWERraster image
The __________ of lines, symbols, dimensions, notes, and other information on a print
is also an important factor in print reading. - ANSWERinterpretation
________ lines are of upmost importance because it gives the print reader the shape
description of the object - ANSWERVisible
____________ feature thin, short dashes spaced closely together. - ANSWERHidden
line
In engineering drawings, the text and numeric information is refered to as _________. -
ANSWERlettering
True or False? Each alphabet of line only has one option of appearance. -
ANSWERFalse
True or False? Chain lines can be used to indicate paths of motion on a print. -
ANSWERFalse
True or False? Some CAD systems refer to extension lines as witness lines. -
ANSWERTrue
True or False? A viewing-Plane line is equivelent in apperance to a center line. -
ANSWERFalse
True or False? unless lower-case lettering is specifically required the print must be
upper case lettering. - ANSWERTrue
A __________ is a generally accepted way of doing something. - ANSWERconvention
which of the following is the third step in the design process? - ANSWERRefined
solutions
True or False? Early method of creating paint was a wet process that developed white
lines on a blue background which resulted in the name blueprint. - ANSWERTrue
