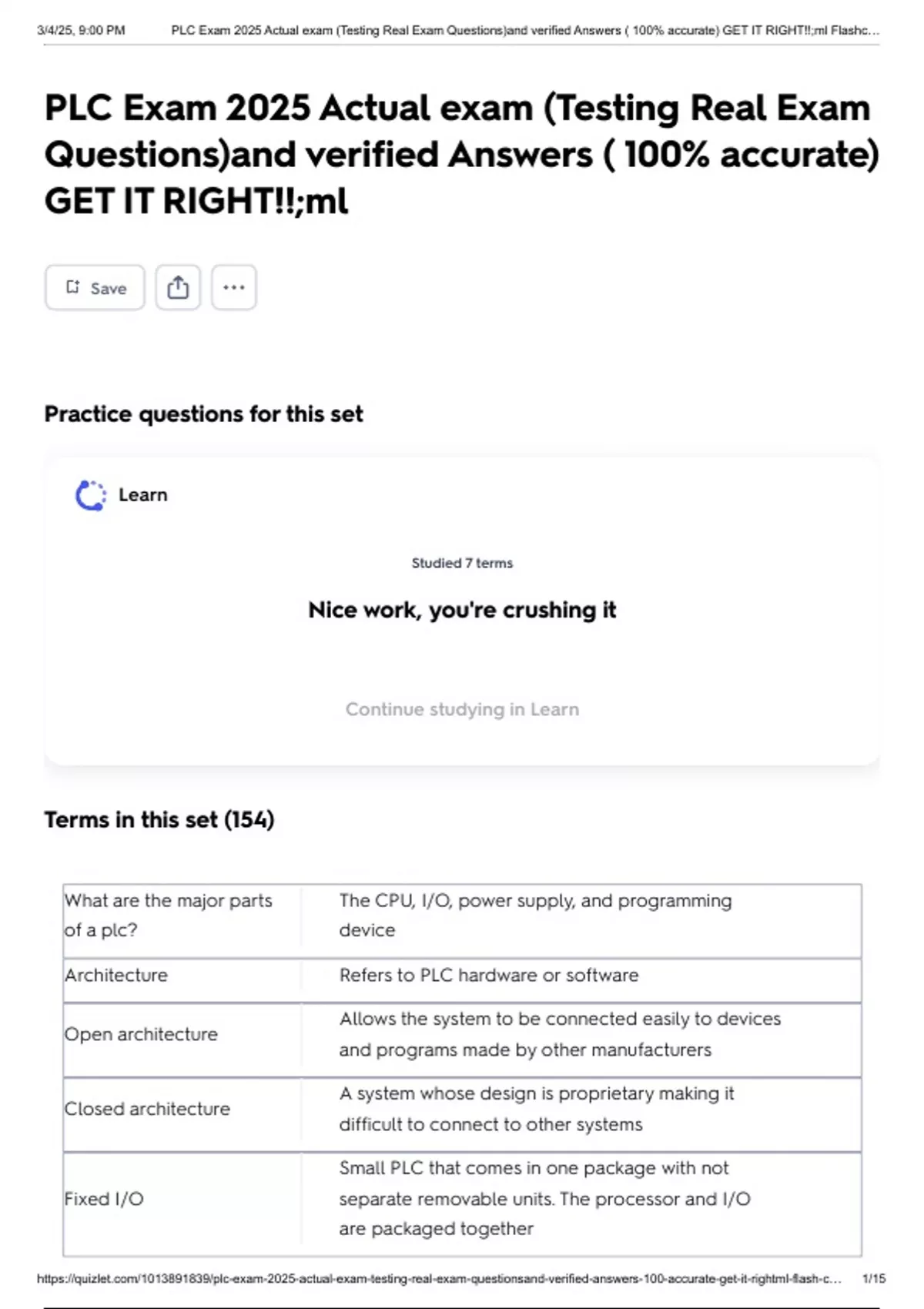

PLC Exam 2025 Actual exam (Testing Real Exam
Questions)and verified Answers ( 100% accurate)
GET IT RIGHT!!;ml
Save
Practice questions for this set
Learn
Studied 7 terms
Nice work, you're crushing it
Continue studying in Learn
Terms in this set (154)
What are the major parts The CPU, I/O, power supply, and programming
of a plc? device
Architecture Refers to PLC hardware or software
Allows the system to be connected easily to devices
Open architecture
and programs made by other manufacturers
A system whose design is proprietary making it
Closed architecture
difficult to connect to other systems
Small PLC that comes in one package with not
Fixed I/O separate removable units. The processor and I/O
are packaged together
https://quizlet.com/1013891839/plc-exam-2025-actual-exam-testing-real-exam-questionsand-verified-answers-100-accurate-get-it-rightml-flash-c… 1/15
, 3/4/25, 9:00 PM PLC Exam 2025 Actual exam (Testing Real Exam Questions)and verified Answers ( 100% accurate) GET IT RIGHT!!;ml Flashc…
A PLC that is divided by compartments into which
Modular I/O
separate modules can be plugged
Provides DC power to all modules that plug into the
Power supply
rack
A microprocessor for implementing the logic and
CPU or processor
controlling the communications among the modules
Reads inputs -> executes program -> diagnostics &
PLC scan cycle
communication -> updates outputs
I/O (Input/Output) Forms the interface by which field devices are
system connected to the controller.
I/O (Input/Output) Forms the interface by which field devices are
system connected to the controller
Used to enter the desired program into the memory
Programming device
of the processor
Personal computer (PC) The most commonly used programming device
A series of instructions that directs the PLC to
Program
execute actions
The standard programming language, is based on
Relay ladder logic
electromagnetic relay control
Address Where an input or output device is conncected
PLC is designed to operate in the industrial
PC vs PLC environment with wide ranges of ambient
temperature and humidity
Human machine interface Software that allows the user to monitor and control
(HMI) the process
Programmable Combine PLC ruggedness with PC
Automation Controllers functionality
(PACs)
Nano Smallest size with less than 15 I/O
Micro 15-128 I/O
Medium 128-512 I/O
Large Over 512 I/O
